SN74HC595NSR
2V~6V 6mA 27ns@6V,50pF Serial-to-Serial or Parallel SOP-16-208mil Shift Registers RoHS
SOP-16-208milROHS3 CompliantActive
8-Bit Shift Registers With 3-State Output Registers
- Manufacturer
- TI
- Manufacturer part #
- SN74HC595NSR
- Store part #
- C191873
- Package / case
- SOP-16-208mil
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,295 in stock
#C191873
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.70 | ₹86.70 |
| 10+ | ₹69.31 | ₹693.10 |
| 30+ | ₹60.83 | ₹1,824.90 |
| 100+ | ₹52.15 | ₹5,215.00 |
| 500+ | ₹47.15 | ₹23,575.00 |
| 1,000+ | ₹44.55 | ₹44,550.00 |
1 × ₹86.70
₹86.70
excl. GST
₹102.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel

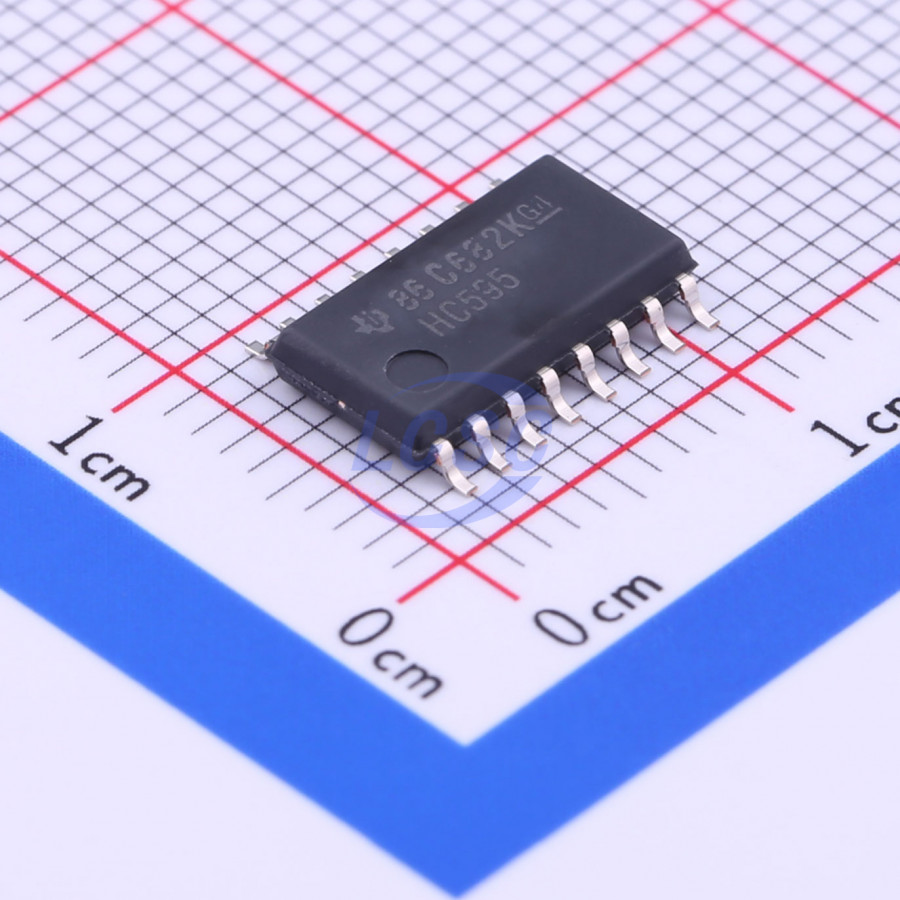

SN74HC595NSR
₹86.70 for 1 + GST
Specifications
- Operating temperature
- -40℃~+85℃
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output High(IOH)
- 6mA
- Series
- 74HC
- Current - Output Low(IOL)
- 6mA
- Output Current
- 6mA
- Features
- Asynchronous clear function;Output enable
- Propagation Delay
- 27ns@6V,50pF
- Function
- Serial-to-Serial or Parallel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.353 g
Overview
The SNx4HC595 device contains an 8-bit serial-in/parallel-out shift register that feeds an 8-bit D-type storage register. The storage register features parallel three-state outputs. The shift register and storage register have separate clocks. The shift register has a direct overriding clear (SRCLR) input, along with a serial (SER) input and serial output for cascading configurations. When the output enable (OE) input is high, the outputs are in the high-impedance state.
Applications
- Network Switches
- Power Infrastructure
- LED Displays
- Servers
Key features
- 8-bit serial-in/parallel-out shift register
- Wide operating voltage range: 2V to 6V
- High-current three-state outputs drive up to 15 LSTTL loads
- Low power consumption: 80μA (max) Icc
- tpd = 13ns (typical)
- Output drive ±6mA at 5V
- Low input current: 1μA (max)
- Direct clear function on shift register
- For products compliant with MIL-PRF-38535, all parameters are tested unless otherwise noted. For all other products, production testing does not necessarily include testing of all parameters.
