TIDatasheet (PDF)

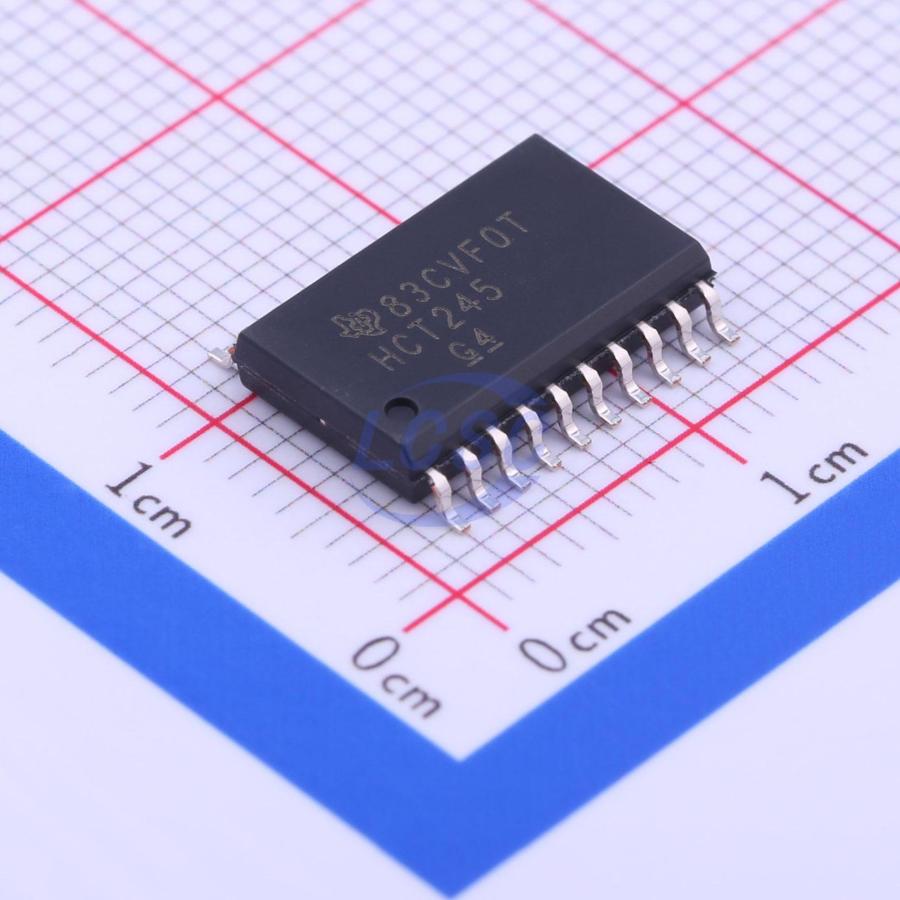

SN74HCT245DWR
Transceiver SOIC-20-300mil
SOIC-20-300milROHS3 CompliantActive
Octal Bus Transceivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74HCT245DWR
- Store part #
- C132267
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,434 in stock
#C132267
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.91 | ₹89.91 |
| 10+ | ₹72.32 | ₹723.20 |
| 30+ | ₹63.64 | ₹1,909.20 |
| 100+ | ₹54.73 | ₹5,473.00 |
| 500+ | ₹45.60 | ₹22,800.00 |
| 1,000+ | ₹43.00 | ₹43,000.00 |
1 × ₹89.91
₹89.91
excl. GST
₹106.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HCT245DWR
₹89.91 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 80uA
- Propagation Delay
- 14ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.714 g
Overview
The SNx4HCT245 octal bus transceivers are designed for asynchronous two-way communication between data buses. The control function implementation minimizes external timing requirements. Depending on the logic level at the direction control (DIR) input, the SNx4HCT245 devices transmit data from the A bus to the B bus, or from the B bus to the A bus. The output enable (OE) input can be used to disable the device, effectively isolating the buses.
Applications
- Factory Automation and Control
- Grid Infrastructure
- Electronic Point of Sale
- Multi-Function Printers
- Motor Drives
- Storage Telecom Infrastructure
Key features
- Operating voltage range: 4.5V to 5.5V
- High-current 3-state outputs drive bus lines or up to 15 LSTTL loads
- Low power consumption, ICC max 80μA
- tpd typical = 14 ns
- ±6mA output drive at 5V
- Low input current, 1μA max
- TTL-compatible inputs
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT245D,653#C5979Nexperia · SOIC-20-300mil | Nexperia | SOIC-20-300mil | 17,072 | ₹53.52 · 17,072 in stock | View |
 | 74HCT245D#C2675539TOSHIBA · SOIC-20-300mil | TOSHIBA | SOIC-20-300mil | 19 | ₹69.33 · 19 in stock | View |
 | MC74HCT245ADWR2G#C7582onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 3,447 | ₹84.54 · 3,447 in stock | View |
| MC74HCT245ADWG#C906725onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 1 | ₹85.28 · 1 in stock | View | |
 | AiP74HCT245SA20.TR#C52120888Wuxi I-core Elec · SOP-20 | Wuxi I-core Elec | SOP-20 | 755 | ₹23.71 · 755 in stock | View |
