GREENMICRODatasheet (PDF)

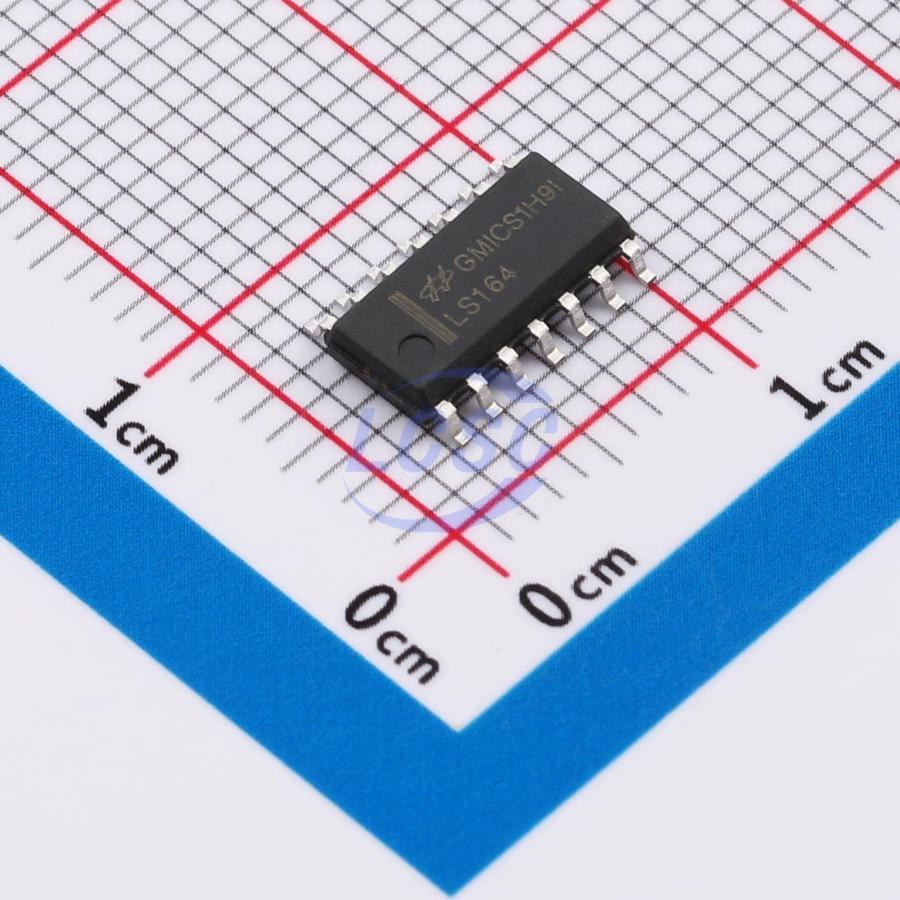

SN74LS164DS
2V~6V 1 25mA 24ns@5V,16pF Serial-to-Parallel SOP-14 Shift Registers
SOP-14RoHSActive
- Manufacturer
- GREENMICRO
- Manufacturer part #
- SN74LS164DS
- Store part #
- C52092046
- Package / case
- SOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,315 in stock
#C52092046
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.65 | ₹133.25 |
| 50+ | ₹20.89 | ₹1,044.50 |
| 150+ | ₹18.42 | ₹2,763.00 |
| 500+ | ₹15.35 | ₹7,675.00 |
| 2,500+ | ₹13.97 | ₹34,925.00 |
| 5,000+ | ₹13.15 | ₹65,750.00 |
5 × ₹26.65
₹133.25
excl. GST
₹157.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS164DS
₹133.25 for 5 + GST
Specifications
- Operating temperature
- 0℃~+70℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Series
- 74HC
- Number of Elements
- 1
- Output Current
- 25mA
- Propagation Delay
- 24ns@5V,16pF
- Features
- Asynchronous clear function
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.2 g
Overview
The 74LS164 is an 8-bit shift register with two-line input, designed using high-speed CMOS process technology. The register is constructed from master-slave D-type flip-flops, offering high noise immunity and interference rejection. On the rising edge of the CLOCK signal, the 8-bit binary data (Qa~Qg) shifts one position to the right. A dedicated clear input allows easy reset of the output data. This shift register also supports multi-stage cascading for expanded output as needed.
Applications
- 8-bit shift register
- Automation engineering control
Key features
- Low input current: ≤ 1uA
- Propagation delay time: typical 20ns
- Low quiescent power consumption: Icc ≤ 5.0μA, @VCC = 6V
- Compound enable input for easy multi-stage expansion
- Wide operating voltage range: 2.0V ~ 6.0V
- Package types: DIP14, SOP14
