XBLWDatasheet (PDF)

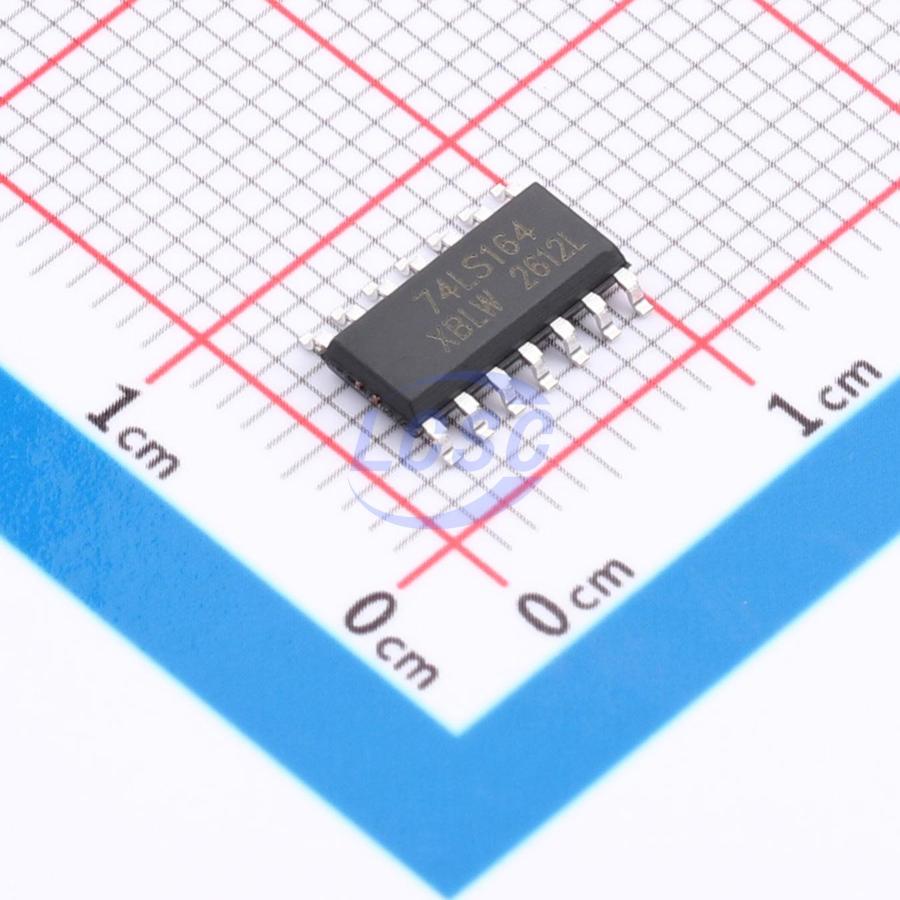

SN74LS164DTR(XBLW)
2V~6V 1 25mA Serial-to-Parallel SOP-14 Shift Registers RoHS
SOP-14ROHS CompliantActive
8-bit serial-in parallel-out shift register, 2 serial data inputs DSA, DSB and 8 parallel outputs Q0-Q7
- Manufacturer
- XBLW
- Manufacturer part #
- SN74LS164DTR(XBLW)
- Store part #
- C54525158
- Package / case
- SOP-14
- Category
- Shift Registers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,495 in stock
#C54525158
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.11 | ₹135.55 |
| 50+ | ₹21.45 | ₹1,072.50 |
| 150+ | ₹19.02 | ₹2,853.00 |
| 500+ | ₹16.00 | ₹8,000.00 |
| 2,500+ | ₹14.65 | ₹36,625.00 |
| 5,000+ | ₹13.84 | ₹69,200.00 |
5 × ₹27.11
₹135.55
excl. GST
₹159.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74LS164DTR(XBLW)
₹135.55 for 5 + GST
Specifications
- Operating temperature
- -20℃~+85℃
- Pd - Power Dissipation
- 500mW
- Voltage - Supply
- 2V~6V
- Output Type
- Push-Pull
- Series
- SN74
- Number of Elements
- 1
- Output Current
- 25mA
- Function
- Serial-to-Parallel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.358 g
Overview
The SN74LS164 is an 8-bit serial-in/parallel-out shift register. The device features two serial data inputs (DSA and DSB), eight parallel data outputs (Q0 to Q7). Data is entered serially through DSA or DSB and either input can be used as an active HIGH enable for data entry through the other input. Data is shifted on the LOW-to-HIGH transitions of the clock (CP) input. A LOW on the master reset input (MR) clears the register and forces all outputs LOW, independently of other inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess ofVCC.
Key features
- Gated serial data inputs
- Asynchronous master reset
- Specified from -20°C to +85°C
