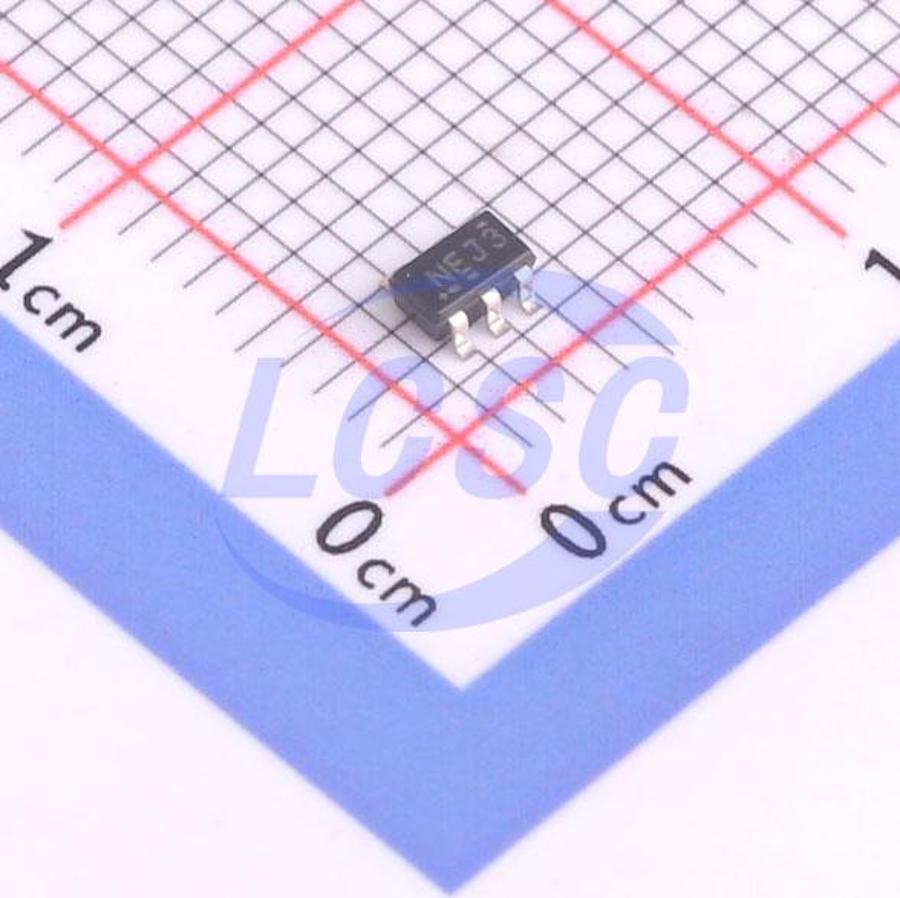

SN74LV1T34DBVR

SN74LV1T34 is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V/2.5V/3.3V/5V CMOS levels. The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (e.g. 3.3V to 2.5V output at VCC = 2.5V). The wide VCC range of 1.8V to 5.5V allows generation of desired output levels to connect to controllers or processors. The SN74LV1T34 is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.

Applications

• Industrial controllers
• Telecom
• Portable applications
• Servers
• PC and notebooks
• Automotive

Key features

• Single-Supply Voltage Translator at 5.0/3.3/2.5/1.8V VCC - Operating Range of 1.8V to 5.5V - Up Translation
• 1.2V to 1.8V at 1.8V VCC, 1.5V to 2.5V at 2.5V VCC, 1.8V to 3.3V at 3.3V VCC, 3.3V to 5.0V at 5.0V VCC - Down Translation
• 3.3V to 1.8V at 1.8V VCC, 3.3V to 2.5V at 2.5V VCC, 5.0V to 3.3V at 3.3V VCC - Logic Output is Referenced to VCC - Output Drive
• 8.0mA Output Drive at 5.0V
• 7.0mA Output Drive at 3.3V
• 3.0mA Output Drive at 1.8V - Characterized up to 50MHz at 3.3V VCC
• 5.0V Tolerance on Input Pins
• -40℃ to 125℃ Operating Temperature Range
• Latch-Up Performance Exceeds 250mA Per JESD 17
• ESD Performance Tested Per JESD 22
• 2000-V Human-Body Model (A114-B, Class II)
• 200-V Machine Model (A115-A)
• 1000-V Charged-Device Model (C101)
• Supports Standard Logic Pinouts
• CMOS Output B Compatible with AUP1G and LVC1G Families
