TIDatasheet (PDF)
SN74LV240APWR
2V~5.5V 4 2 7.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive

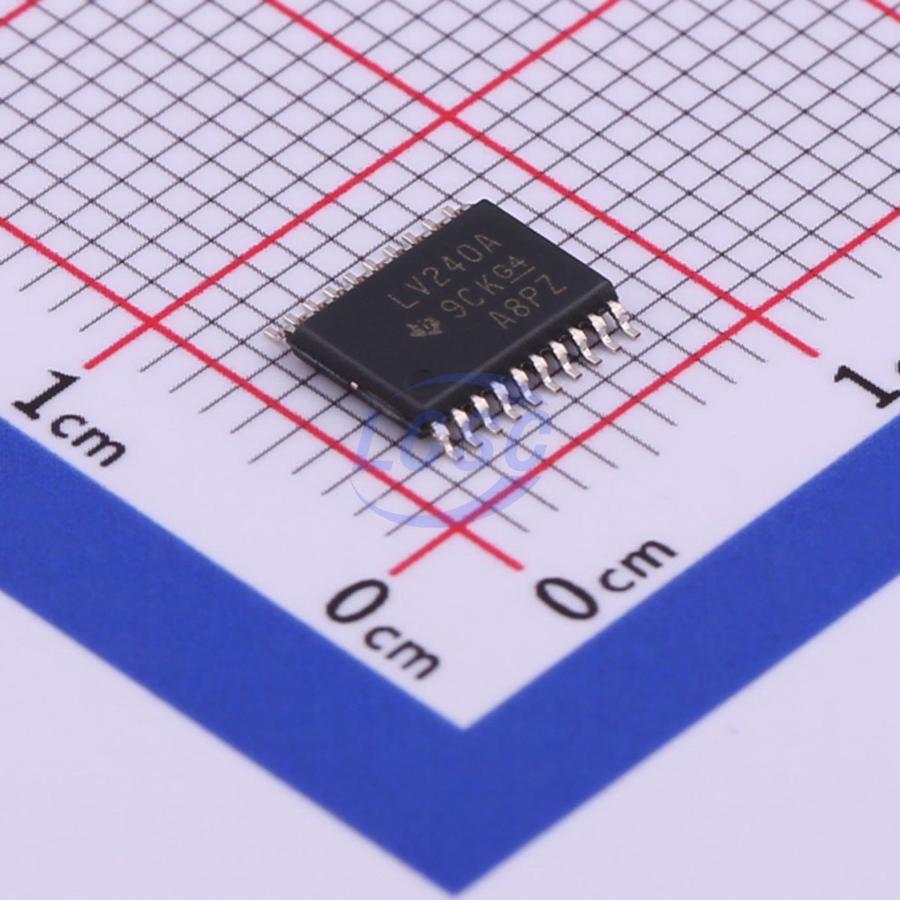

Octal Inverting Buffers/Drivers With 3-State Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LV240APWR
- Store part #
- C485070
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,625 in stock
#C485070
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹52.52 | ₹52.52 |
| 10+ | ₹41.03 | ₹410.30 |
| 30+ | ₹36.25 | ₹1,087.50 |
| 100+ | ₹30.18 | ₹3,018.00 |
| 500+ | ₹27.35 | ₹13,675.00 |
| 1,000+ | ₹25.84 | ₹25,840.00 |
1 × ₹52.52
₹52.52
excl. GST
₹61.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LV240APWR
₹52.52 for 1 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Function
- Output enable;Level shifting;Power-off isolation
- Current - Output High(IOH)
- 16mA
- Series
- 74LV
- Current - Output Low(IOL)
- 16mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 7.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.123 g
Overview
These octal buffers/drivers with inverted outputs are designed for 2-V to 5.5-VCC operation. The ’LV240A devices are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. These devices are organized as two 4-bit buffers/line drivers with separate output-enable (OE(overline)) inputs. When OE(overline) is low, the device passes inverted data from the A inputs to the Y outputs. When OE(overline) is high, the outputs are in the high-impedance state.
Applications
- Handset: Smartphone
- Network Switch
- Health and Fitness / Wearables
Key features
- 2-V to 5.5-VCC Operation
- Max tpd of 6.5 ns at 5 V
- Typical VOHV (Output VOH Undershoot) > 2.3 V at VCC = 3.3 V, TA = 25 ℃
- Support Mixed-Mode Voltage Operation on All Ports
- Latch-Up Performance Exceeds 250 mA per JESD 17
- Ioff Supports Live Insertion, Partial Power-Down Mode, and Back Drive Protection
- ESD Protection Exceeds JESD 22 2000-V Human-Body Model (A114-A) 200-V Machine Model (A115-A) 1000-V Charged-Device Model (C101)
