TIDatasheet (PDF)

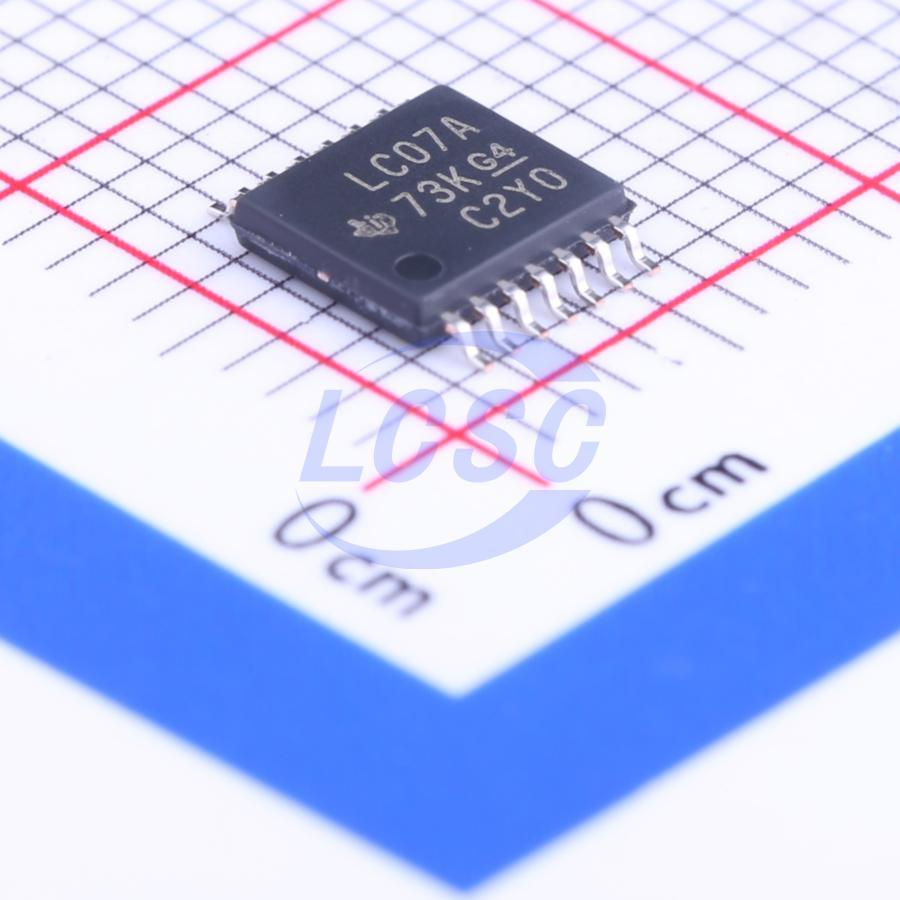

SN74LVC07APWR
1.65V~5.5V 1 6 2.6ns@5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Hex Buffer/Driver With Open-Drain Outputs
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC07APWR
- Store part #
- C7809
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,360 in stock
#C7809
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.10 | ₹275.50 |
| 50+ | ₹44.43 | ₹2,221.50 |
| 150+ | ₹39.86 | ₹5,979.00 |
| 500+ | ₹34.15 | ₹17,075.00 |
| 2,000+ | ₹31.61 | ₹63,220.00 |
| 4,000+ | ₹30.09 | ₹1,20,360.00 |
5 × ₹55.10
₹275.50
excl. GST
₹325.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74LVC07APWR
₹275.50 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Open-drain
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Level shifting
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Propagation Delay
- 2.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
This hex buffer/driver is designed for 1.65-V to 5.5-V VCC operation.
Applications
- AV Receiver
- Audio Dock: Portable
- Blu-ray Player and Home Theater
- MP3 Player or Recorder
- Personal Digital Assistant (PDA)
- Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
- Solid State Drive (SSD): Client and Enterprise
- TV: LCD, Digital, and High-Definition (HDTV)
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard, and Mouse
Key features
- Operates From 1.65 V to 5 V
- Inputs and Open-Drain Outputs Accept Voltages Up to 5.5 V
- Max tpd of 2.6 ns at 5 V
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LVC07AQPWRG4Q1#C2676641TI · TSSOP-14 | TI | TSSOP-14 | 676 | ₹76.32 · 676 in stock | View |
 | 74LVC07AT14-13#C460510DIODES · TSSOP-14 | DIODES | TSSOP-14 | 20 | ₹35.14 · 20 in stock | View |
 | SN74LVC07AQPWRQ1#C507242TI · TSSOP-14 | TI | TSSOP-14 | 3 | ₹69.74 · 3 in stock | View |
 | SN74LVC07AIPWREP#C2676615TI · TSSOP-14 | TI | TSSOP-14 | 2 | ₹331.60 · 2 in stock | View |
 | 74LCX07FT(AE)#C7421259TOSHIBA · TSSOP14B | TOSHIBA | TSSOP14B | 49 | ₹35.06 · 49 in stock | View |
