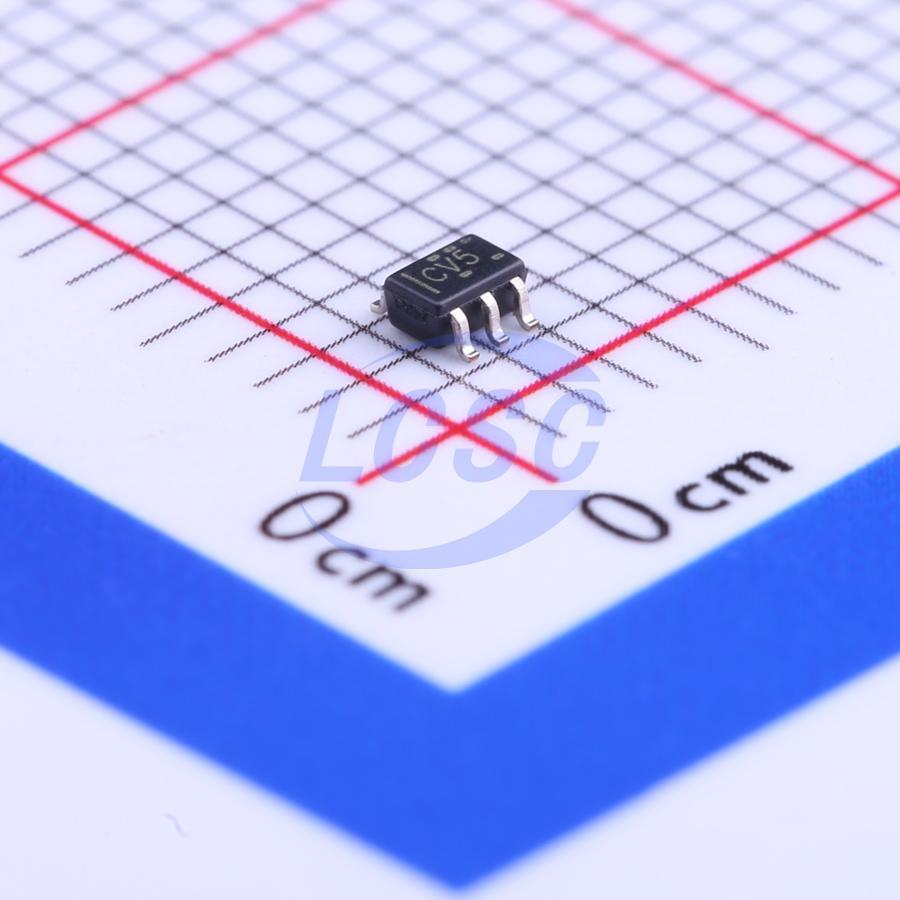

SN74LVC1G07DCKR

This single buffer/driver is designed for 1.65-V to 5.5-V VCC operation. The output of the device is open drain and can be connected to other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions. The maximum sink current is 32 mA. The device is available in a variety of packages, including the ultra-small DPW package with a body size of 0.8 mm x 0.8 mm.

Applications

• AV Receiver
• Blu-ray Player and Home Theater
• DVD Recorder and Player
• Desktop or Notebook PC
• Digital Radio or Internet Radio Player
• Digital Video Camera (DVC)
• Embedded PC
• GPS: Personal Navigation Device
• Mobile Internet Device
• Network Projector Front End
• Portable Media Player
• Pro Audio Mixer
• Smoke Detector
• Solid State Drive (SSD): Enterprise
• High-Definition (HDTV)
• Tablet: Enterprise
• Audio Dock: Portable
• DLP Front Projection System
• DVR and DVS
• Digital Picture Frame (DPF)
• Digital Still Camera

Key features

• Available in the Ultra Small 0.64–mm² Package (DPW) With 0.5 mm Pitch
• Supports 5-V VCC Operation
• Input and Open-Drain Output Accept Voltages up to 5.5 V
• Can Translate Up or Down
• Max tpd of 4.2 ns at 3.3 V
• Low Power Consumption, 10-µA Max ICC
• ±24-mA Output Drive at 3.3 V
• Ioff Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22: 2000-V Human-Body Model (A114-A), 200-V Machine Model (A115-A), 1000-V Charged-Device Model (C101)
