TIDatasheet (PDF)
SN74LVC1G17QDCKRQ1
Schmitt trigger 1.65V~5.5V 1 1 1.5ns@3.3V,50pF SC-70-5 Buffers, Drivers, Receivers, Transceivers RoHS
SC-70-5ROHS3 CompliantActive

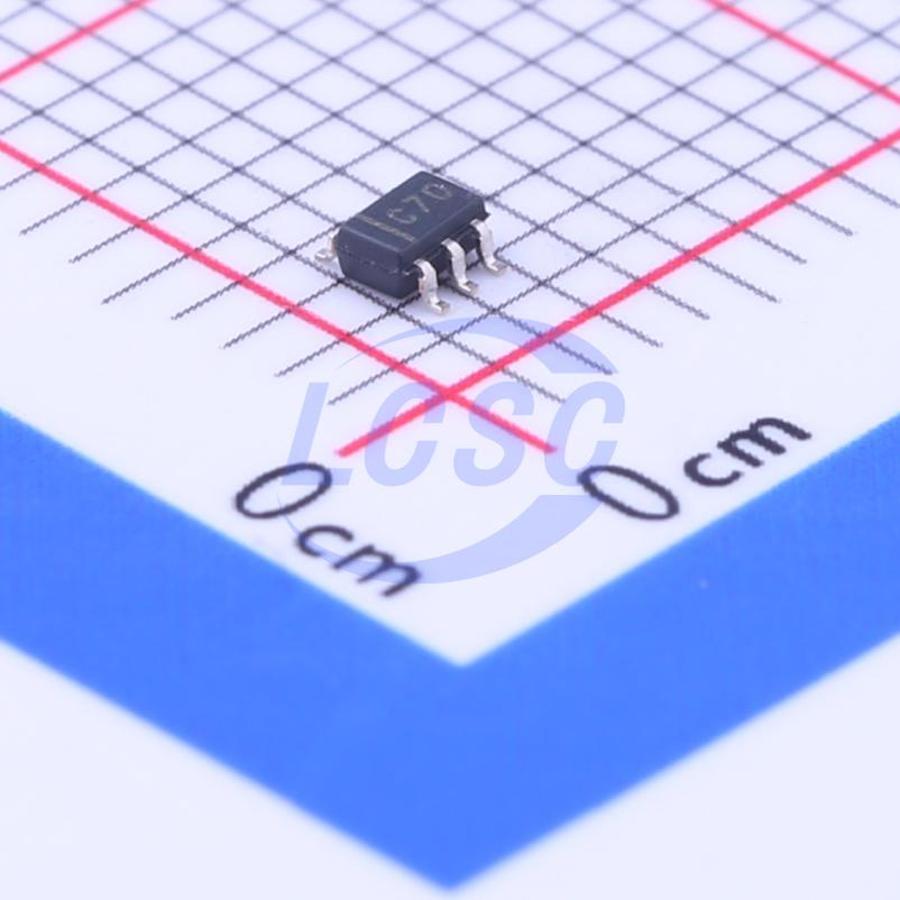

Single Schmitt-Trigger Buffer
- Manufacturer
- TI
- Manufacturer part #
- SN74LVC1G17QDCKRQ1
- Store part #
- C205900
- Package / case
- SC-70-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,990 in stock
#C205900
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.32 | ₹171.60 |
| 50+ | ₹26.61 | ₹1,330.50 |
| 150+ | ₹23.30 | ₹3,495.00 |
| 500+ | ₹19.17 | ₹9,585.00 |
| 3,000+ | ₹17.33 | ₹51,990.00 |
| 6,000+ | ₹16.23 | ₹97,380.00 |
5 × ₹34.32
₹171.60
excl. GST
₹202.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G17QDCKRQ1
₹171.60 for 5 + GST
Specifications
- Function
- Power-off isolation
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 20uA
- Propagation Delay
- 1.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
This single Schmitt-trigger buffer is designed for 1.65-V to 5.5–VCC operation. The SN74LVC1G17-Q1 contains one buffer and performs the Boolean function Y = A. The device functions as an independent buffer, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using |Ioff|. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Applications
- Automotive electronics applications
- General digital logic buffer scenarios
Key features
- Qualified for Automotive Applications
- Supports 5-V VCC Operation
- Inputs Accept Voltages to 5.5 V
- ±24-mA Output Drive at 3.3 V
- Ioff Supports Partial-Power-Down Mode Operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G126GW,125#C55052Nexperia · SOT-353 | Nexperia | SOT-353 | 2,855 | ₹16.33 · 2,855 in stock | View |
 | SN74LVC1G17DC(LX)#C22469944lingxingic · SOT-353 | lingxingic | SOT-353 | 2,100 | ₹6.40 · 2,100 in stock | View |
 | 74LVC1G125GW,125#C12519Nexperia · SOT-353 | Nexperia | SOT-353 | 42,745 | ₹14.46 · 42,745 in stock | View |
 | 74LVC1G17SE-7#C212314DIODES · SOT-353 | DIODES | SOT-353 | 5,200 | ₹9.68 · 5,200 in stock | View |
 | 74LVC1G17GW,125#C426705Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 18,050 | ₹14.54 · 18,050 in stock | View |
