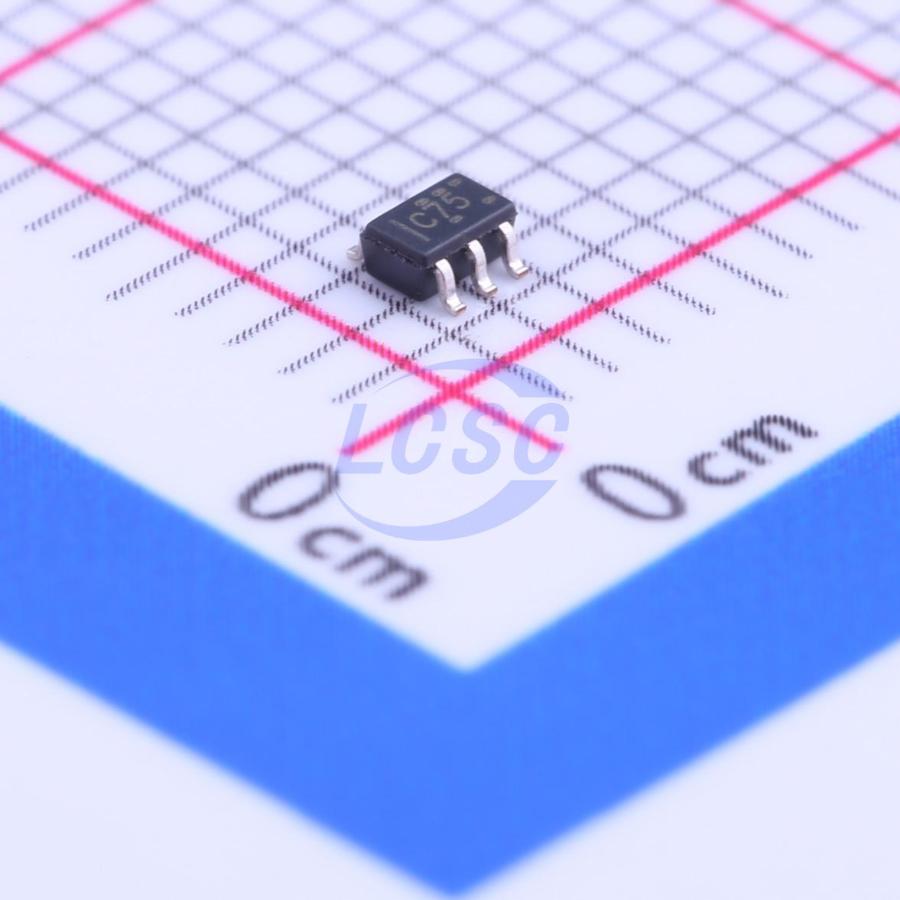

SN74LVC2G17DCKR

This dual Schmitt-Trigger buffer is designed for 1.65-V to 5.5-V VCC operation. The SN74LVC2G17 device contains two buffers and performs the Boolean function V = A. The device functions as two independent buffers, but because of Schmitt action, it may have different input threshold levels for positive-going (V↑+) and negative-going (VT-) signals. NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Applications

• AV Receivers
• Audio Docks: Portable
• Blu-ray Players and Home Theater
• MP3 Players/Recorders
• Personal Digital Assistants (PDAs)
• Power: Telecom/Server AC/DC Supply: Single Controller: Analog and Digital
• Solid State Drives (SSDs): Client and Enterprise
• TVs: LCD/Digital and High-Definition (HDTVs)
• Tablets: Enterprise
• Video Analytics: Server
• Wireless Headsets, Keyboards, and Mice

Key features

• Schmitt-Trigger inputs provide hysteresis
• Available in the NanoFree™ Package
• Supports 5-V VCC Operation
• Inputs Accept Voltages to 5.5 V
• Max tpd of 5.4 ns at 3.3 V
• Low Power Consumption, 10-μA Max ICC
• ±24-mA Output Drive at 3.3 V
• Typical VOLP (Output Ground Bounce) < 0.8 V at VCC = 3.3 V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) >2 V at VCC = 3.3 V, TA = 25℃
• Ioff Supports Live Insertion, Partial-Power-Down Mode Operation and Back-Drive Protection
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22
• 2000-V Human-Body Model
• 1000-V Charged-Device Model
