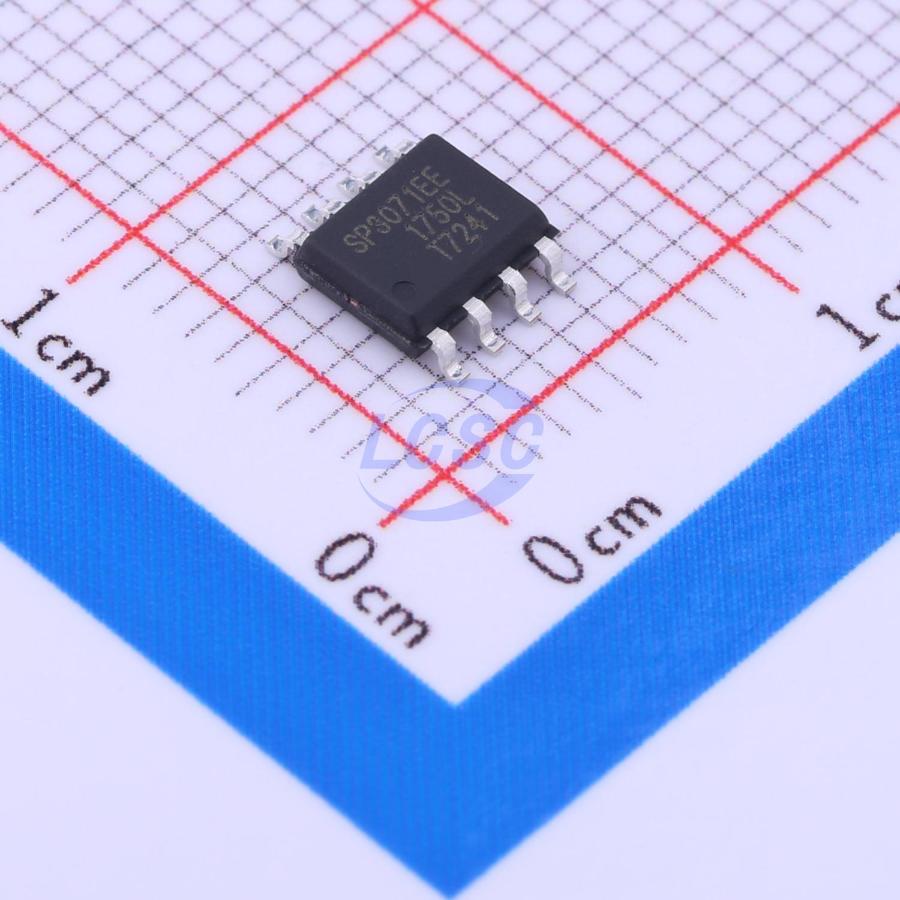

SP3071EEN-L/TR

The SP3070 - 3078E differential line transceivers are suitable for bidirectional communication on balanced multipoint bus transmission lines and comply with both RS485 and RS422 EIA Standards. Each device consists of a differential driver and differential receiver. All devices operate from a 3.3V power supply. High receiver input impedance allows a large number of transceivers to share a common data bus while maintaining signal margin and without excessive loading or use of expensive repeaters. The high impedance driver output is maintained over the entire common - mode voltage range from -7 to +12V. Receivers will failsafe to logic 1 output when inputs are open, shorted or terminated. Drivers include built - in short - circuit protection and a thermal - overload shutdown to protect against excessive power dissipation from bus contention or cable faults. All RS485 inputs are ESD protected up to ±15kV (Air - Gap and Human Body Model) and up to ±8kV Contact discharge (IEC 1000 - 4 - 2).

Applications

• Industrial Control
• Utility Meters
• Building Automation
• Instrumentation
• Point of Sale

Key features

• ±15kV ESD protection for RS485 pins
• 3.3V low - power operation
• Advanced Receiver - failsafe protection for open, shorted or terminated lines
• Up to 256 Transceivers may share Bus
• Very low load for 8× greater fanout
• Hot Swap glitch protection RE and DE
• Thermal shutdown protects against driver contention
• Available in three industry standard footprints
• Three applications - optimized speed grades
• Small form factor SO - narrow packages
• Industrial (-40 to +85°C) and Extended (-40 to +85°C) temperature grades
• Now Available in Lead Free Packaging
