TECH PUBLICDatasheet (PDF)

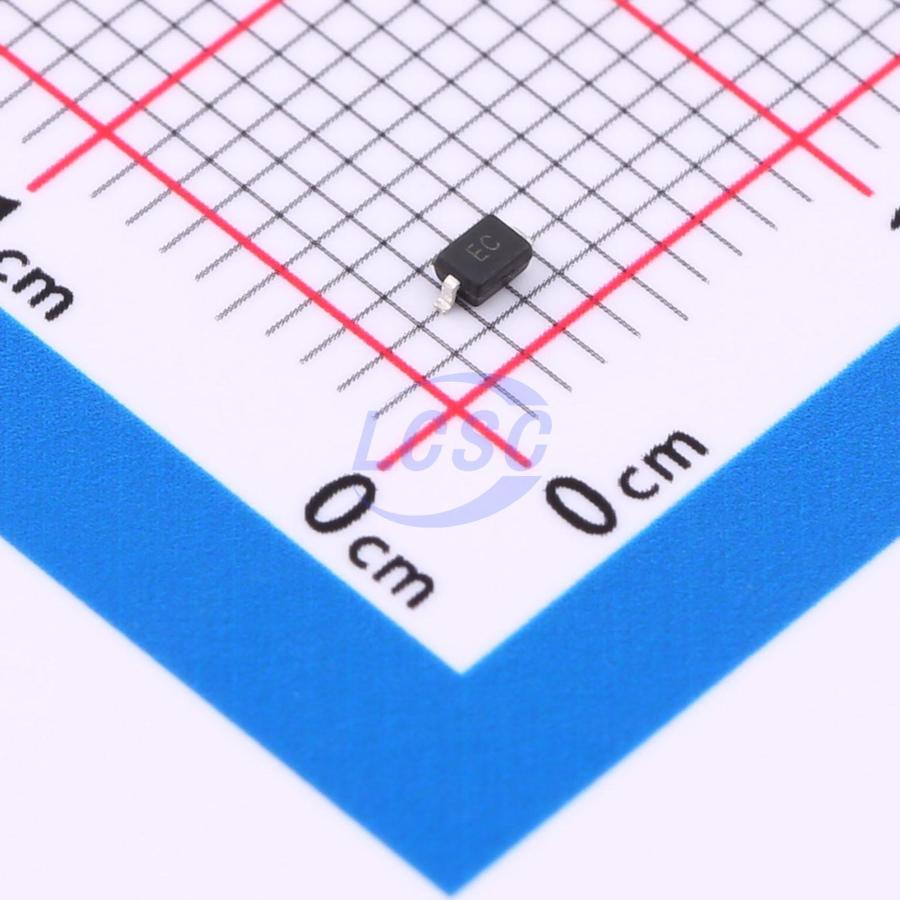

SP4023-01FTG-C
Diode 15V Surface Mount SOD-323
SOD-323RoHSActive
DIODE SCHOTTKY 15V SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SP4023-01FTG-C
- Store part #
- C28646396
- Package / case
- SOD-323
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,870 in stock
#C28646396
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.89 | ₹78.90 |
| 100+ | ₹6.32 | ₹632.00 |
| 300+ | ₹5.56 | ₹1,668.00 |
| 3,000+ | ₹4.97 | ₹14,910.00 |
| 6,000+ | ₹4.50 | ₹27,000.00 |
| 9,000+ | ₹4.27 | ₹38,430.00 |
10 × ₹7.89
₹78.90
excl. GST
₹93.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SP4023-01FTG-C
₹78.90 for 10 + GST
Specifications
- Diode Configuration
- Standalone
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 15V
- Non-Repetitive Peak Forward Surge Current
- 10A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.028 g
Overview
Applications
- RS-232
- RS-485
- Power Port
- Safety Device
Key features
- 350W peak pulse power (8/20μs)
- Protects one data or power line
- Ultra-low leakage: nanoampere level
- Operating voltage: 15V
- Ultra-low clamping voltage
- Compliant with the following standards: - IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV - IEC 61000-4-5 (Lightning Surge) 10A (8/20μs) - IEC 61000-4-4 (EFT) 40A (5/50ns)
- RoHS compliant
- Package: SOD-323
- Lead finish: Matte tin
- Case material: "Green" molding compound
- UL flammability rating 94V-0
- Moisture sensitivity: Level 3 per J-STD-020
