MSKSEMIDatasheet (PDF)

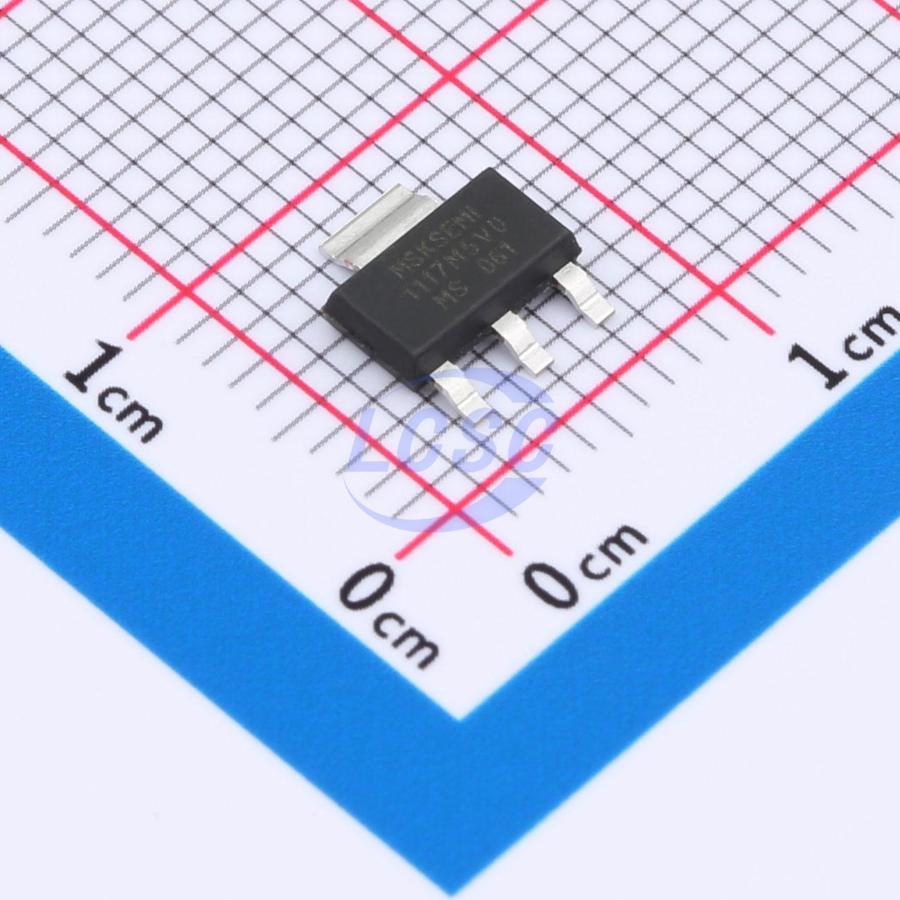

SPX1117M3-L-5-0/TR(MS)
Linear Voltage Regulator IC Positive Fixed 1 Output 1A SOT-223
SOT-223RoHSActive
Low Dropout (LDO) Three-Terminal Voltage Regulator
- Manufacturer
- MSKSEMI
- Manufacturer part #
- SPX1117M3-L-5-0/TR(MS)
- Store part #
- C22462594
- Package / case
- SOT-223
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
920 in stock
#C22462594
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.90 | ₹99.00 |
| 100+ | ₹7.83 | ₹783.00 |
| 300+ | ₹6.79 | ₹2,037.00 |
| 2,500+ | ₹6.02 | ₹15,050.00 |
| 5,000+ | ₹5.40 | ₹27,000.00 |
| 10,000+ | ₹5.08 | ₹50,800.00 |
10 × ₹9.90
₹99.00
excl. GST
₹116.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SPX1117M3-L-5-0/TR(MS)
₹99.00 for 10 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Ta)
- Supply Current (Iq)
- 12mA
- Output Configuration
- Positive
- Output Current
- 1A
- Operating Voltage
- 12V
- Features
- Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.13 g
Overview
SPX1117M3-L-X-X/TR(MS) is a series of low dropout regulators with a 1.3V dropout voltage at 1A load current. Compared to competitors' 5mA, the SPX1117M3-L-X-X/TR(MS) features an extremely low standby current of only 2mA. In addition to fixed output versions (1.2V, 1.5V, 1.8V, 2.5V, 2.85V, 3.3V, and 5V), the SPX1117M3-L-X-X/TR(MS) is also available in an adjustable version that provides output voltages from 1.25V to 12V using just two external resistors. The SPX1117M3-L-X-X/TR(MS) offers thermal shutdown protection to ensure stability of the die and power supply system. It employs trimming technology to guarantee output voltage accuracy within 2%. Other output voltage accuracy options, such as 1%, are available upon request. The SPX1117M3-L-X-X/TR(MS) comes in a SOT-223 package.
Applications
- Computer motherboard and graphics card power management
- LCD monitors and LCD TVs
- DVD decoder boards
- ADSL modems
- Post-regulator for switching power supplies
Key features
- Output current: 1A
- Operating input voltage range: 15V
- Line regulation: 0.03%/V (typical)
- Standby current: 2mA (typical)
- Load regulation: 0.2%/A (typical)
- Ambient temperature: -40℃~85℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LD1117-5.0(MS)#C20538889MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 1,740 | ₹6.64 · 1,740 in stock | View |
 | NCP1117LPST50T3G-MS#C22462597MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 2,285 | ₹18.75 · 2,285 in stock | View |
 | AZ1117H-5.0TRE1-MS#C22462600MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 1,905 | ₹11.74 · 1,905 in stock | View |
 | MS1117-5V#C47020981MSKSEMI · SOT-223 | MSKSEMI | SOT-223 | 2,450 | ₹7.83 · 2,450 in stock | View |
