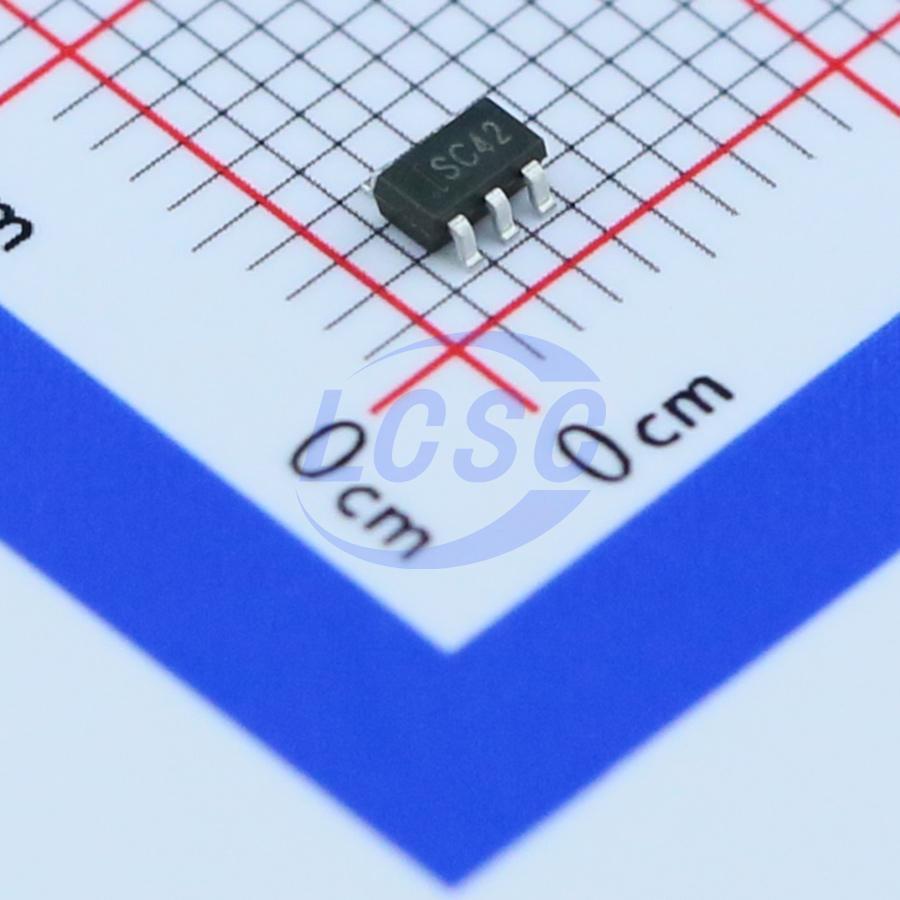

MaxLinear

SPX5205M5-L-5-0/TR

5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

SOT-23-5ROHS CompliantActive

150mA, Low-Noise LDO Voltage Regulator

Manufacturer: MaxLinear
Manufacturer part #: SPX5205M5-L-5-0/TR
Store part #: C6865
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10,890 in stock

#C6865

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹31.50	₹157.50
50+	₹25.15	₹1,257.50
150+	₹22.42	₹3,363.00
500+	₹19.02	₹9,510.00
3,000+	₹15.29	₹45,870.00
6,000+	₹14.39	₹86,340.00

Quantity (min 5, multiples of 5)

5 × ₹31.50

₹157.50

excl. GST

₹185.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

SPX5205M5-L-5-0/TR

₹157.50 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃
Output Configuration: Positive
Output Current: 150mA
Operating Voltage: 16V
Features: Enable control;Reverse polarity voltage protection;Thermal shutdown;Over Current Protection;Noise bypass terminal
Output Type: Fixed

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The SPX5205 is a positive voltage regulator with very low dropout voltage, output noise and ground current (/750μA at 100mA). VOUT has a tolerance of less than 1% and is temperature compensated. Fixed output voltages 1.2V, 1.8V, 2.5V, 2.8V, 3.0V, 3.3V, and 5.0V and an adjustable version are available in a small 5-pin SOT-23 package. Other key features include zero off-mode current, reverse battery protection, thermal shutdown and current limit. The SPX5205 is an excellent choice for use in battery-powered applications, and where power conservation is desired such as: cellular/ cordless telephones, radio control systems, and portable computers.

Applications

PDA
Battery Powered Systems
Cellular Phone
Cordless Telephones
Radio Control Systems
Laptop, Palmtop, and Notebook Computers
Portable Consumer Equipment
Portable Instrumentation
Bar Code Scanners
SMPS Post-Regulator

Key features

Low Noise Output LDO: 40μV RMS Possible
1% Initial Accuracy
Very Low Quiecent Current: 70μA
Low Dropout Voltage (210mV at 150mA)
Current and Thermal Limiting
Reverse-Battery Protection
Wide Range of Fix Output Voltages: 1.2V, 1.8V, 2.5V, 3.0V, 3.3V and 5.0V
Zero Off-Mode Current
Small 5-Pin SOT-23 Pin Compatible to MIC5205/MAX8877 (fixed Options Only) and LP2985
