VBsemi ElecDatasheet (PDF)

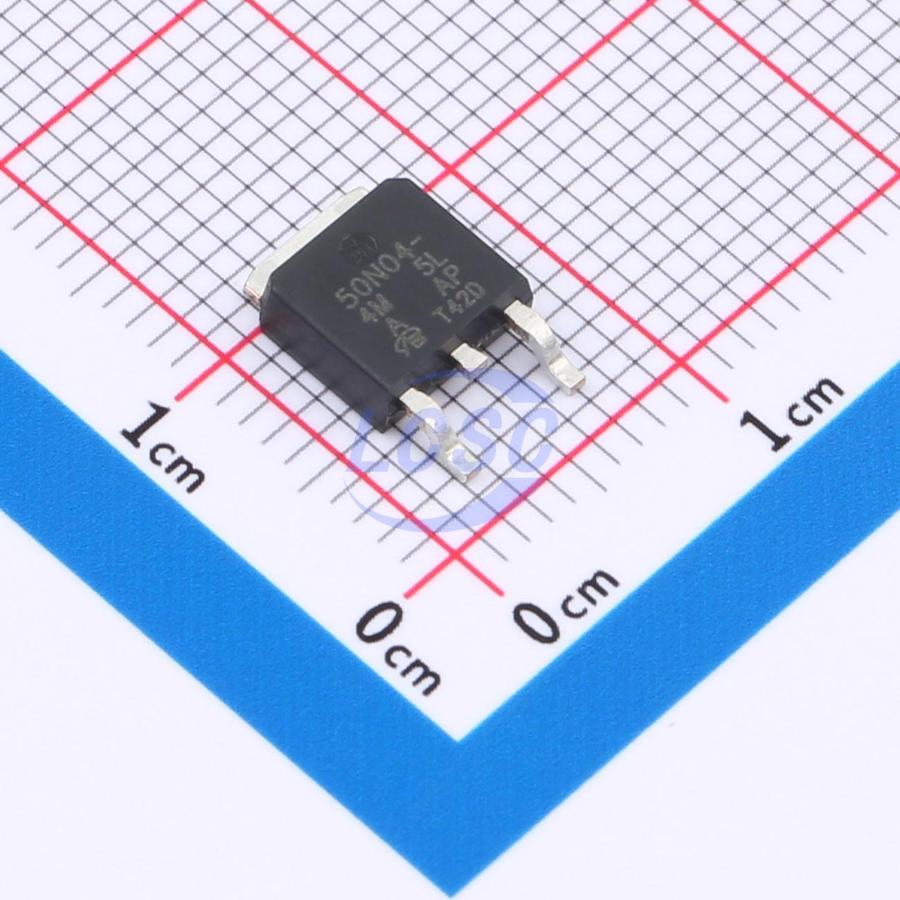

SQD50N04-4m5L-GE3-VB
N-Channel 40V 85A Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 40V 85A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SQD50N04-4m5L-GE3-VB
- Store part #
- C22389855
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389855
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹82.56 | ₹82.56 |
| 10+ | ₹66.39 | ₹663.90 |
| 30+ | ₹58.40 | ₹1,752.00 |
| 100+ | ₹50.42 | ₹5,042.00 |
| 500+ | ₹45.80 | ₹22,900.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹82.56
₹82.56
excl. GST
₹97.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SQD50N04-4m5L-GE3-VB
₹82.56 for 1 + GST
Specifications
- Drain to Source Voltage
- 40V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 550pF
- Current - Continuous Drain(Id)
- 85A
- Ciss-Input Capacitance
- 2.38nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 250pF
- RDS(on)
- 6.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 80nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.49 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPD80N04S3-06-VB#C19190230VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 18 | ₹117.56 · 18 in stock | View |
 | SUD40N04-10A-E3-VB#C19626673VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2 | ₹85.92 · 2 in stock | View |
 | IRFR4104TRLPBF-VB#C20417516VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 48 | ₹85.92 · 48 in stock | View |
 | AUIRFR3504TRPBF-VB#C20417652VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹85.92 · 50 in stock | View |
 | K65S04K3L-VB#C20417711VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹82.56 · 50 in stock | View |
