CoreChips

SR8201F

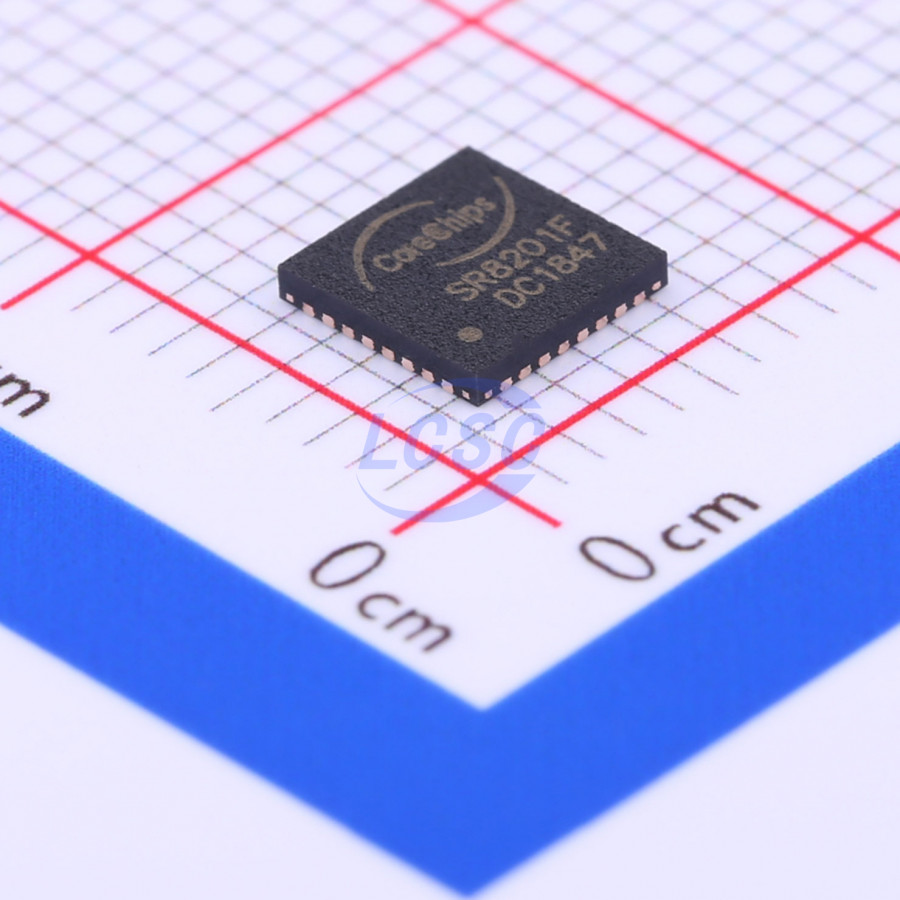

Ethernet Transceiver QFN-32-EP(5x5) Drivers, Receivers, Transceivers RoHS

QFN-32-EP(5x5)ROHS CompliantActive

Single-chip 10/100M Ethernet PHYceiver, supporting Auto MDIX

Manufacturer: CoreChips
Manufacturer part #: SR8201F
Store part #: C378491
Package / case: QFN-32-EP(5x5)
Category: Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,962 in stock

#C378491

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹61.10	₹61.10
10+	₹47.84	₹478.40
30+	₹42.19	₹1,265.70
100+	₹35.23	₹3,523.00
500+	₹32.19	₹16,095.00
1,000+	₹30.23	₹30,230.00

Quantity (min 1)

1 × ₹61.10

₹61.10

excl. GST

₹72.10 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

SR8201F

₹61.10 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Voltage - Supply: 3.3V;1.1V
Type: Ethernet Transceiver
Ethernet Speed Standards: 10BASE-T;100BASE-TX
Data Rate: 10Mbit/s;100Mbit/s
number of channels: 1
Features: Support optical fiber;Low-power mode;Programmable LED indication
Interface: MII;RMII

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.13 g

Overview

The SR8201F-VB-CG, SR8201FL-VB-CG, and SR8201FN-VB-CG are single-chip/single-port 10/100Mbps Ethernet PHYceivers that support: - MII (Media Independent Interface) - RMII (Reduced Media Independent Interface) The SR8201F/FL/FN implement all 10/100M Ethernet Physical-layer functions including the Physical Coding Sublayer (PCS), Physical Medium Attachment (PMA), Twisted Pair Physical Medium Dependent Sublayer (TP-PMD), 10Base-TX Encoder/Decoder, and Twisted-Pair Media Access Unit (TPMAU). The SR8201F/FL/FN support auto MDIX. A PECL (Pseudo Emitter Coupled Logic) interface is supported to connect with an external 100Base-FX fiber optical transceiver. The chip utilizes an advanced CMOS process to meet low voltage and low power requirements. With on-chip DSP (Digital Signal Processing) technology, the chip provides excellent performance under all operating conditions.

Applications

MAU (Media Access Unit)
DTV (Digital TV)
CNR (Communication and Network Riser)
Game Console
Printer and Office Machine
DVD Player and Recorder
Ethernet Hub
Ethernet Switch

Key features

Supports IEEE 802.3az-2010 (EEE)
100Base-TX IEEE 802.3u Compliant
10Base-T IEEE 802.3 Compliant
Supports MII mode
Supports RMII mode
Full/half duplex operation
Twisted pair or fiber mode output
Supports Auto-Negotiation
Supports power down mode
Supports Link Down Power Saving
Supports Base Line Wander (BLW) Compensation
Supports auto MDIX
Supports Interrupt function
Support Wake-On_LAN(WOL)
Adaptive Equalization
Automatic Polarity Correction
LEDs: SR8201F and SR8201FL provide two network status LEDs; SR8201FN provide three network status LEDs
Supports 25MHz external crystal or OSC
Supports 50MHz external OSC Clock input for RMII
Provides 50MHz clock source for MAC
Low power supply 1.1V and 3.3V; 1.1V is generated by an internal regulator
0.11μm CMOS process
Packages:
32-pin MII/RMII QFN ‘Green’ package (SR8201F)
48-pin MII/RMII LQFP ‘Green’ package (SR8201FL)
48-pin MII/RMII QFN ‘Green’ package (SR8201FN)
