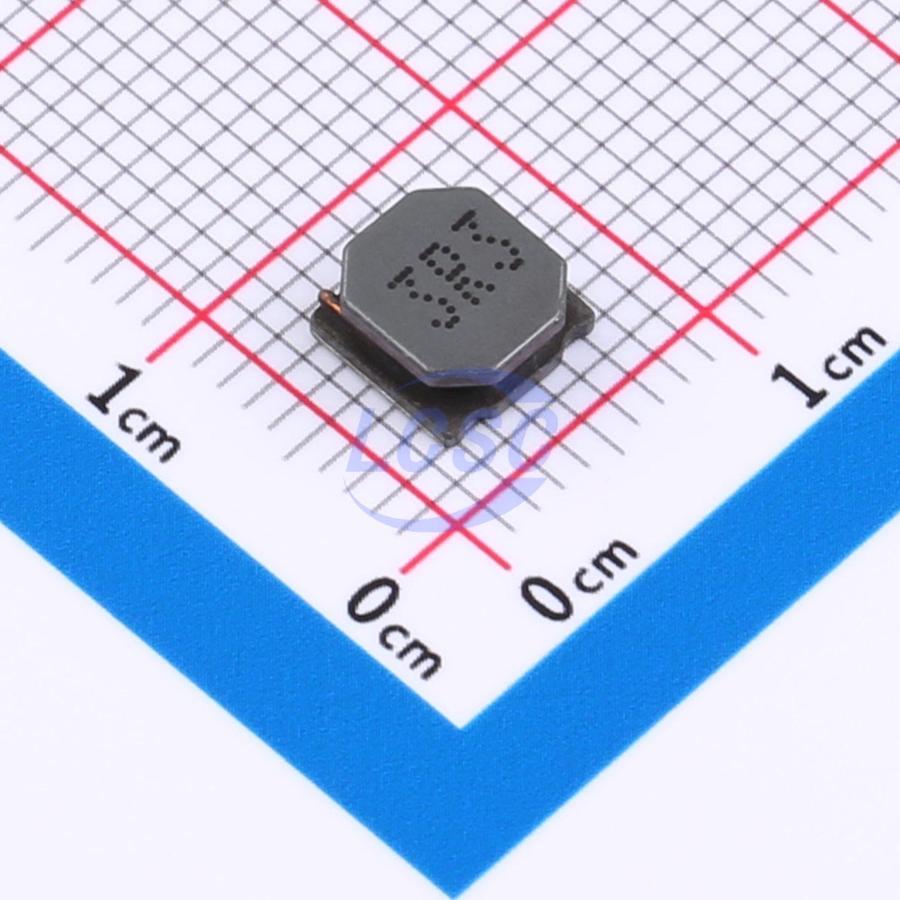

BOURNS

SRN6028C-3R3M

3.6A 3.3uH ±20% 4.3A 24mΩ SMD,6x6mm Fixed Inductors RoHS

SMD,6x6mmROHS3 CompliantActive

FIXED IND 3.3uH 3.6A 24mΩ SMD,6x6mm

Manufacturer: BOURNS
Manufacturer part #: SRN6028C-3R3M
Store part #: C19947651
Package / case: SMD,6x6mm
Category: Fixed Inductors
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3 in stock

#C19947651

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹75.33	₹75.33
10+	₹60.09	₹600.90
30+	₹52.59	₹1,577.70
100+	₹44.86	₹4,486.00
500+	₹40.35	₹20,175.00
1,500+	₹38.21	₹57,315.00

Quantity (min 1)

1 × ₹75.33

₹75.33

excl. GST

₹88.89 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,500 per bag

SRN6028C-3R3M

₹75.33 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current Rating: 3.6A
Inductance: 3.3uH
Tolerance: ±20%
Current - Saturation(Isat): 4.3A
DC Resistance(DCR): 24mΩ

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Bag-packed
Standard pack: 1,500 / Bag
Sold per: Piece
Minimum order: 1
Unit weight: 0.475 g

Overview

Half-shielded construction Inductance range: 0.9 to 120 μH Rated current up to 7.8 A RoHS compliant Halogen-free Operating temperature: -40°C to +125°C (including temperature rise) Storage temperature (component on board): -40°C to +125°C Temperature rise of 40°C at rated current Inductance drop of 30% at saturation current Moisture sensitivity level: Level 1 ESD classification (HBM): Not applicable Core: Ferrite Wire: Enameled copper Terminal plating: Silver/Nickel/Tin Coating: Magnetic resin Packaging: 1500 per 13-inch reel Reflow cycles: 3 max Quantity per reel: 1500

Key features

Semi-shielded construction
Inductance range 0.9 to 120 μH
Rated current up to 7.8 A
RoHS compliant
Halogen-free
Operating temperature -40°C to +125°C (including temperature rise)
Storage temperature (components on board) -40°C to +125°C
Temperature rise 40°C at rated current
Inductance drop 30% at saturation current
Moisture Sensitivity Level 1
Ferrite core
Enameled copper wire
Terminal plating: silver/nickel/tin
Magnetic resin coating
1500 pieces per 13-inch reel
Maximum 3 reflow cycles

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
CR6045H-3R3M#C7588772Ceaiya · SMD,6x6mm	Ceaiya	SMD,6x6mm	970	₹8.55 · 970 in stock	View
PNLS6045-3R3M 3.3UH#C2849534DMBJ · SMD,6x6mm	DMBJ	SMD,6x6mm	1,300	₹8.94 · 1,300 in stock	View
MNR6028T3R3MT#C20612505MetalLions · SMD,6x6mm	MetalLions	SMD,6x6mm	370	₹7.71 · 370 in stock	View
ZNR6028ST3R3M#C42429272ZE · SMD,6x6mm	ZE	SMD,6x6mm	660	₹9.33 · 660 in stock	View
FNR6028S3R3MT#C528022cjiang · SMD,6x6mm	cjiang	SMD,6x6mm	6,680	₹15.33 · 6,680 in stock	View
