JSMSEMIDatasheet (PDF)

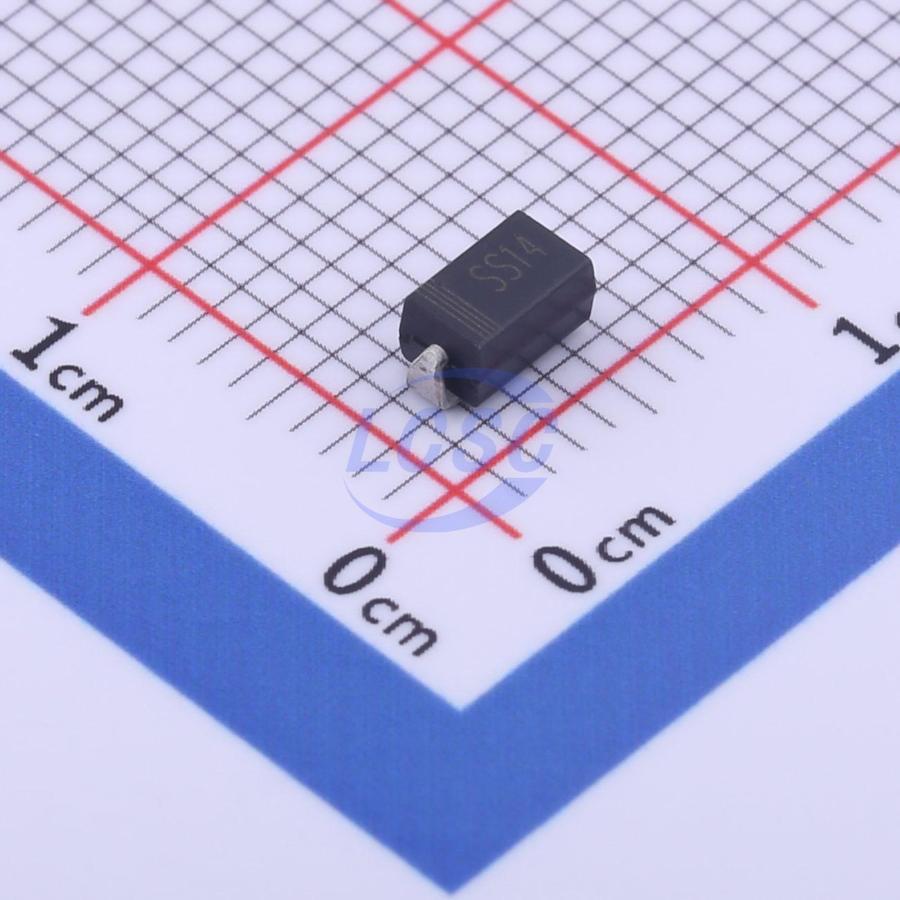

SS14
Diode 40V 1A Surface Mount SMA(DO-214AC)
PopularSMA(DO-214AC)ROHS CompliantActive
DIODE SCHOTTKY 40V SMA(DO-214AC)
- Manufacturer
- JSMSEMI
- Manufacturer part #
- SS14
- Store part #
- C2837270
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,29,950 in stock
#C2837270
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.87 | ₹93.50 |
| 500+ | ₹1.44 | ₹720.00 |
| 2,000+ | ₹1.19 | ₹2,380.00 |
| 4,000+ | ₹1.05 | ₹4,200.00 |
| 20,000+ | ₹0.9923 | ₹19,846.00 |
| 40,000+ | ₹0.9526 | ₹38,104.00 |
50 × ₹1.87
₹93.50
excl. GST
₹110.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SS14
₹93.50 for 50 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 550mV@1A
- Reverse Leakage Current (Ir)
- 500uA@40V
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.093 g
Overview
Key features
- Plastic package meets Underwriters Laboratories flammability rating 94V-0, suitable for surface mount applications
- Metal-silicon junction, majority carrier conduction
- Low power dissipation, high efficiency
- Built-in stress relief, ideal for automatic placement
- High forward surge current capability
- Guaranteed high-temperature soldering: terminals withstand 260°C for 10 seconds
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B340A-JSM#C41421774JSMSEMI · SMA | JSMSEMI | SMA | 2,780 | ₹5.05 · 2,780 in stock | View |
 | SS34#C2837271JSMSEMI · SMA(DO-214AC) | JSMSEMI | SMA(DO-214AC) | 6,43,320 | ₹3.53 · 6,43,320 in stock | View |
 | SS54#C20609300JSMSEMI · SMA | JSMSEMI | SMA | 1,27,050 | ₹5.48 · 1,27,050 in stock | View |
 | SS14A#C41361611JSMSEMI · SMA(DO-214AC) | JSMSEMI | SMA(DO-214AC) | 2,100 | ₹1.92 · 2,100 in stock | View |
 | SS210#C20609197JSMSEMI · SMA(DO-214AC) | JSMSEMI | SMA(DO-214AC) | 14,600 | ₹3.60 · 14,600 in stock | View |
