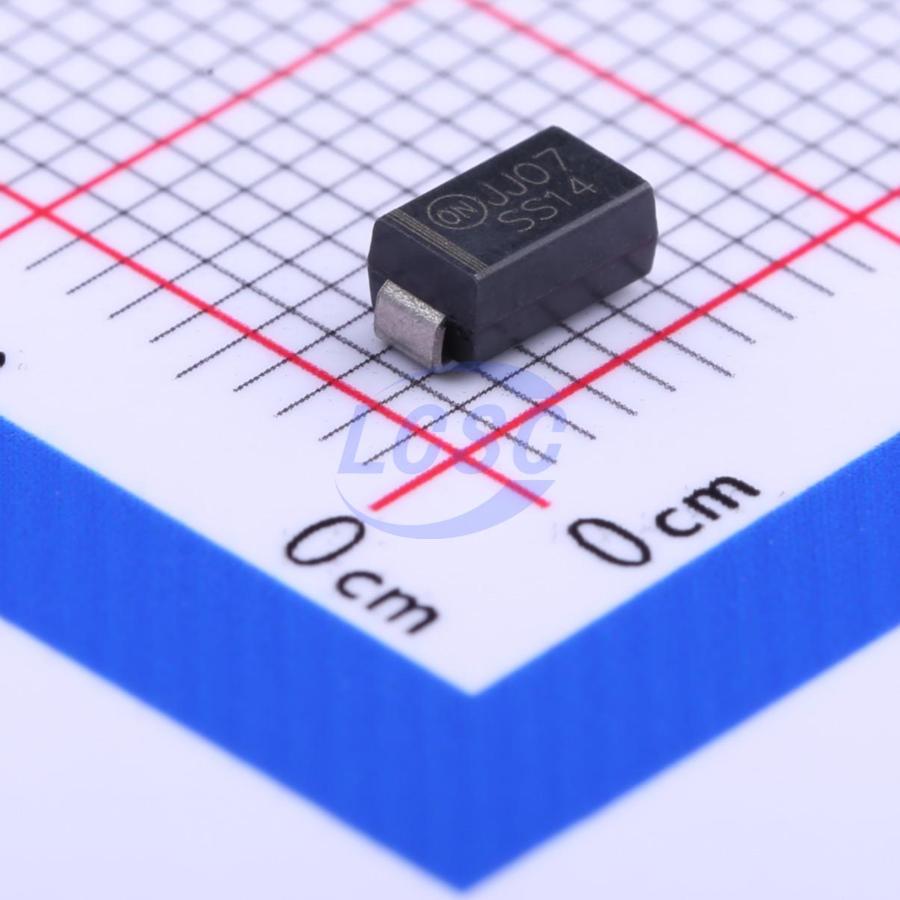

SS14
Diode 40V 1A Surface Mount SMA(DO-214AC)
PopularSMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- SS14
- Store part #
- C83852
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,29,130 in stock
#C83852
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.33 | ₹81.65 |
| 50+ | ₹13.32 | ₹666.00 |
| 150+ | ₹11.79 | ₹1,768.50 |
| 500+ | ₹10.50 | ₹5,250.00 |
| 2,500+ | ₹8.16 | ₹20,400.00 |
| 7,500+ | ₹7.86 | ₹58,950.00 |
5 × ₹16.33
₹81.65
excl. GST
₹96.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
SS14
₹81.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 200uA@40V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
The SS12 - S100 series includes high - efficiency, low power loss, general - propose schottky rectifiers. The clip - bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
Applications
- Low Voltage - High-Frequency Inverters
- Free Wheeling
- Polarity Protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SS14-M3/61T#C117824VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,650 | ₹26.46 · 1,650 in stock | View | |
 | SS24#C167134WILLSEMI · SMA(DO-214AC) | WILLSEMI | SMA(DO-214AC) | 3,630 | ₹8.40 · 3,630 in stock | View |
 | SS14HE3_B/I#C467991VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 6,675 | ₹16.87 · 6,675 in stock | View |
 | SS14-E3/61T#C47460VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 15,201 | ₹15.35 · 15,201 in stock | View |
 | SS14-E3/5AT#C511349VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 19,540 | ₹19.12 · 19,540 in stock | View |
