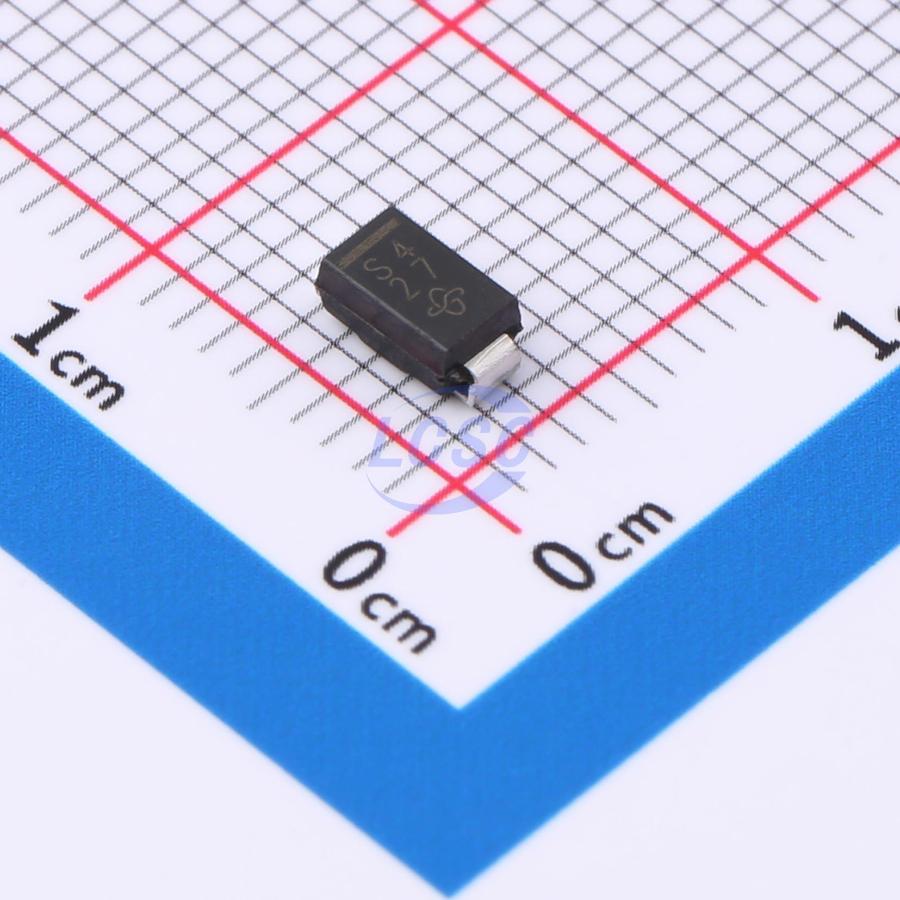

SS14HE3_B/H
Diode 1 Independent 40V 1A Surface Mount DO-214AC
DO-214ACROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-214AC
- Manufacturer
- VISHAY
- Manufacturer part #
- SS14HE3_B/H
- Store part #
- C5224084
- Package / case
- DO-214AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,250 in stock
#C5224084
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.67 | ₹103.35 |
| 50+ | ₹16.74 | ₹837.00 |
| 150+ | ₹14.78 | ₹2,217.00 |
| 500+ | ₹13.31 | ₹6,655.00 |
| 1,800+ | ₹11.07 | ₹19,926.00 |
| 5,400+ | ₹10.49 | ₹56,646.00 |
5 × ₹20.67
₹103.35
excl. GST
₹121.95 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SS14HE3_B/H
₹103.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 200uA@40V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.119 g
Overview
Applications
- For use in low voltage, high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
- Automotive ordering code: base P/NHE3 or P/NHM3
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SS14-M3/61T#C117824VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 1,640 | ₹26.46 · 1,640 in stock | View | |
