onsemiDatasheet (PDF)

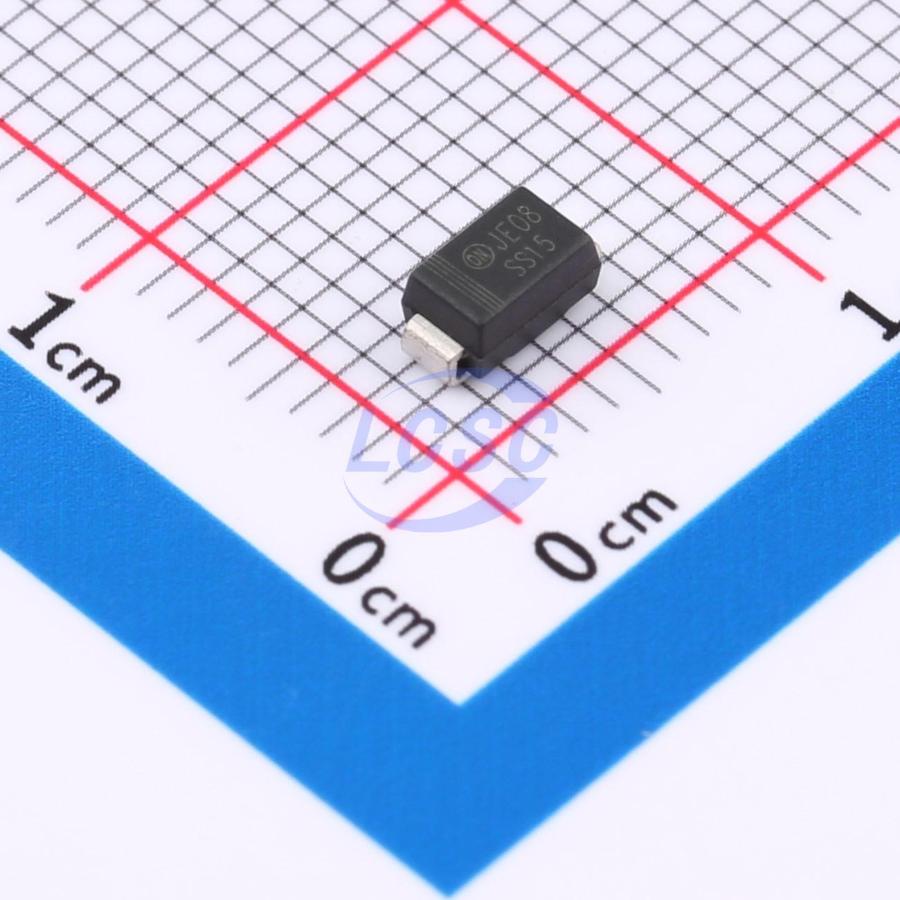

SS15
Diode 50V 1A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 50V SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- SS15
- Store part #
- C896153
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
929 in stock
#C896153
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.68 | ₹57.68 |
| 10+ | ₹46.19 | ₹461.90 |
| 30+ | ₹41.42 | ₹1,242.60 |
| 100+ | ₹35.35 | ₹3,535.00 |
| 500+ | ₹32.53 | ₹16,265.00 |
| 1,000+ | ₹31.01 | ₹31,010.00 |
1 × ₹57.68
₹57.68
excl. GST
₹68.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
SS15
₹57.68 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 700mV@1A
- Reverse Leakage Current (Ir)
- 200uA@50V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.151 g
Overview
The SS12 - S100 series includes high - efficiency, low power loss, general - propose schottky rectifiers. The clip - bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
Applications
- Low Voltage - High - Frequency Inverters
- Free Wheeling
- Polarity Protection
Key features
- Glass - Passivated Junctions
- High - Current Capability, Low VF
- These Devices are Pb - Free, Halogen Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | B150Q-13-F#C134433DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 4,345 | ₹12.99 · 4,345 in stock | View |
 | SS16T3G#C113257onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | 21,275 | ₹17.89 · 21,275 in stock | View |
 | SBRA8160NT3G#C896047onsemi · SMA | onsemi | SMA | 59 | ₹152.61 · 59 in stock | View |
 | SS15-E3/61T#C3151634VISHAY · DO-214AC | VISHAY | DO-214AC | 405 | ₹32.63 · 405 in stock | View |
 | SS16-E3/61T#C183023VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 46,430 | ₹12.86 · 46,430 in stock | View |
