VISHAYDatasheet (PDF)

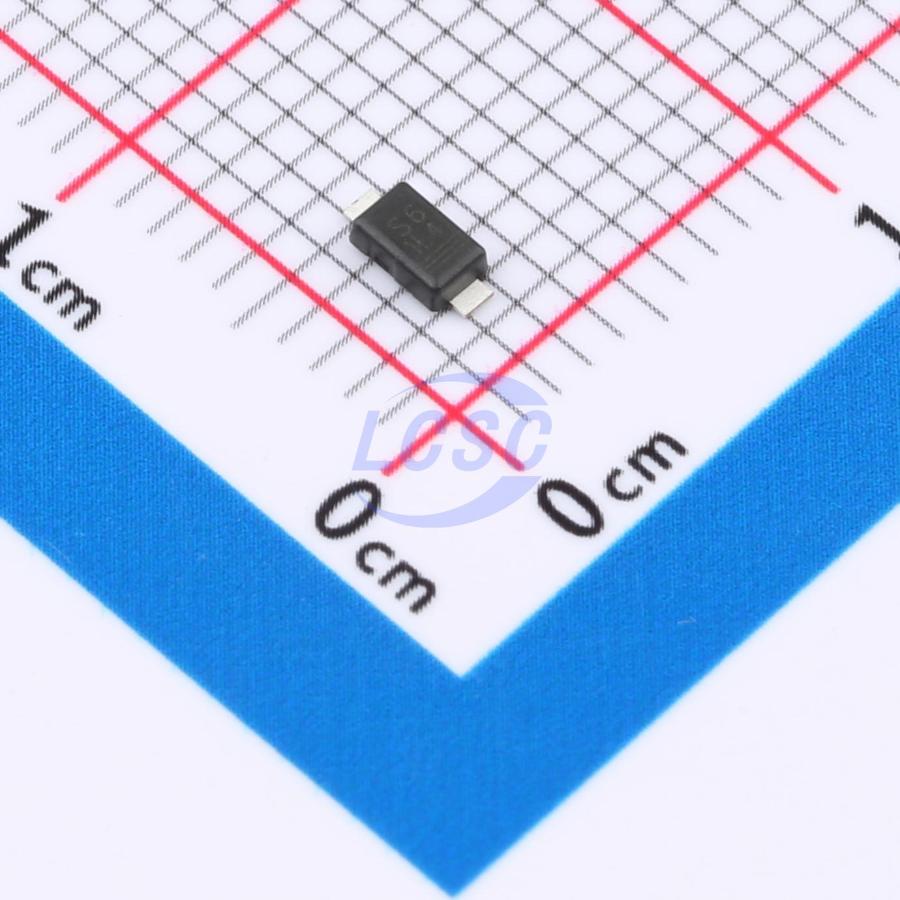

SS1FL4HM3/H
1 Independent 40V 500mV@1A 1A DO-219AB(SMF) Single Diodes RoHS
DO-219AB(SMF)ROHS3 CompliantActive
DIODE SCHOTTKY 40V DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS1FL4HM3/H
- Store part #
- C3758129
- Package / case
- DO-219AB(SMF)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C3758129
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.20 | ₹66.20 |
| 10+ | ₹65.13 | ₹651.30 |
| 30+ | ₹64.48 | ₹1,934.40 |
| 100+ | ₹64.06 | ₹6,406.00 |
1 × ₹66.20
₹66.20
excl. GST
₹78.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS1FL4HM3/H
₹66.20 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 500mV@1A
- Reverse Leakage Current (Ir)
- 200uA@40V
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.053 g
Overview
Applications
- For high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- Suitable for automated pick-and-place
- Low forward voltage drop, low power dissipation
- Low leakage current
- MSL Level 1 per J-STD-020, LF max peak 260℃
- Wave and reflow solderable
- AEC-Q101 qualified versions available
- Automotive ordering code: P/N HM3 base part number
- Compatible with SOD-123W package footprint
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS1F4HM3/H#C3757602VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 8 | ₹90.93 · 8 in stock | View |
 | SS1F4-M3/H#C3760148VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 10 | ₹14.17 · 10 in stock | View |
 | SS1FN6-M3/H#C6684974VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 340 | ₹33.02 · 340 in stock | View |
 | SS1FN6HM3/H#C7369018VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 262 | ₹42.31 · 262 in stock | View |
 | S345R#C432788Chongqing Pingwei Tech · SMF | Chongqing Pingwei Tech | SMF | 10 | ₹14.86 · 10 in stock | View |
