onsemiDatasheet (PDF)

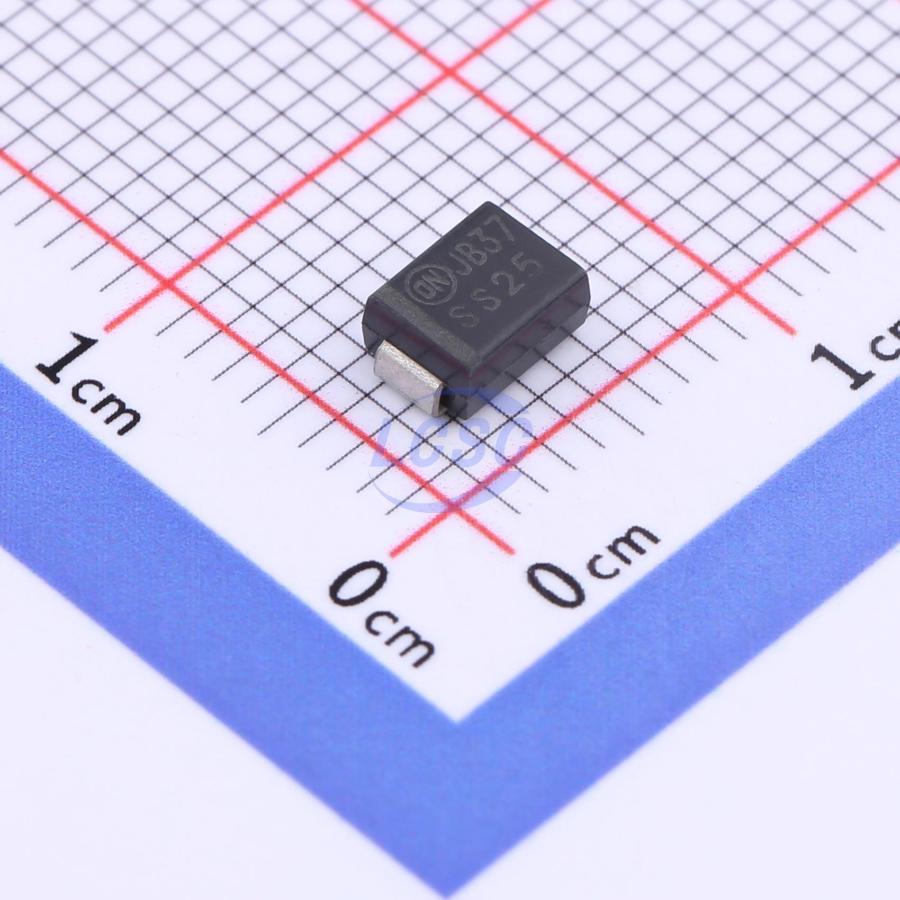

SS25
Diode 50V 2A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
DIODE SCHOTTKY 50V DO-214AA(SMB)
- Manufacturer
- onsemi
- Manufacturer part #
- SS25
- Store part #
- C894434
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C894434
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.32 | ₹59.32 |
| 10+ | ₹46.73 | ₹467.30 |
| 30+ | ₹41.29 | ₹1,238.70 |
| 100+ | ₹34.56 | ₹3,456.00 |
| 500+ | ₹28.26 | ₹14,130.00 |
| 1,000+ | ₹26.51 | ₹26,510.00 |
1 × ₹59.32
₹59.32
excl. GST
₹70.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS25
₹59.32 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 700mV@2A
- Reverse Leakage Current (Ir)
- 400uA@50V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.184 g
Overview
The SS23 - S210 series includes high - efficiency, low power loss, general - propose Schottky rectifiers. The clip - bonded leg structure provides high thermal performance and low electrical resistance. These rectifier are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
Applications
- Low Voltage - High-Frequency Inverters
- Free Wheeling
- Polarity Protection
Key features
- Glass-Passivated Junctions
- High-Current Capability, Low VF
- This is a Pb-Free and Halid Free Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SK26#C260392SMC · SMB(DO-214AA) | SMC | SMB(DO-214AA) | 1,480 | ₹14.62 · 1,480 in stock | View |
 | UMW SS26B#C2758510UMW · SMB | UMW | SMB | 59,420 | ₹4.67 · 59,420 in stock | View |
 | SS26B#C2843301Slkor · SMB(DO-214AA) | Slkor | SMB(DO-214AA) | 3,000 | ₹3.40 · 3,000 in stock | View |
 | B260Q-13-F#C460674DIODES · SMB | DIODES | SMB | 300 | ₹35.38 · 300 in stock | View |
 | B260-13-F#C72265DIODES · SMB | DIODES | SMB | 80,375 | ₹17.01 · 80,375 in stock | View |
