onsemiDatasheet (PDF)

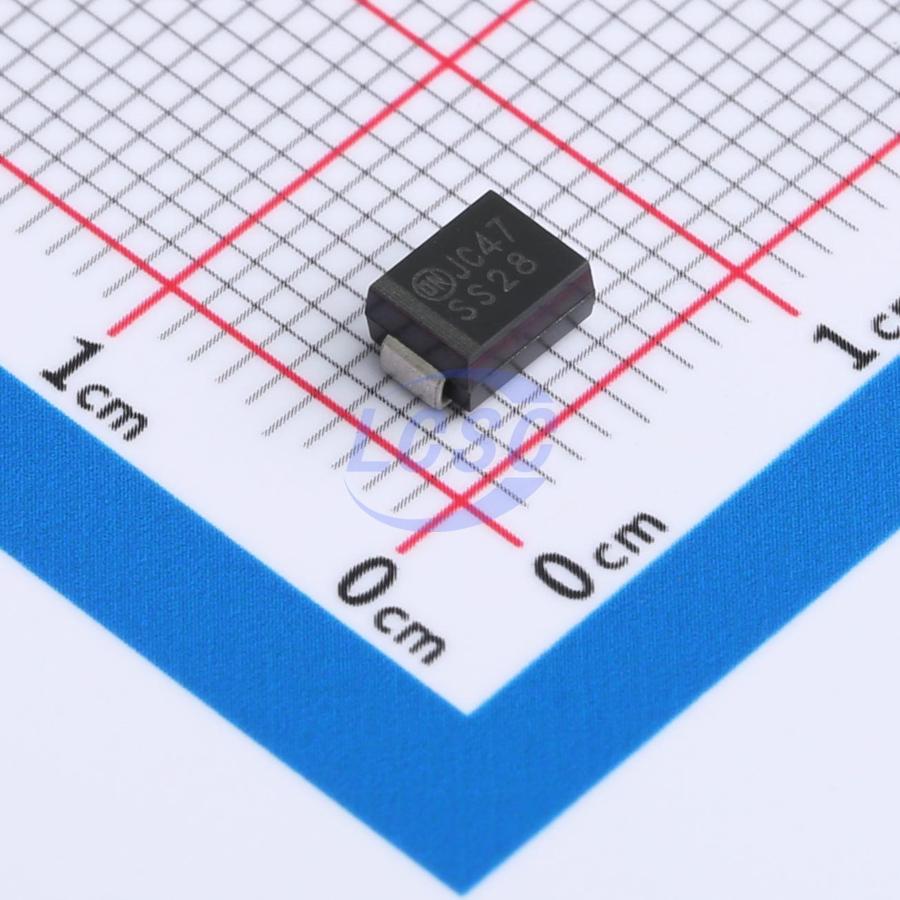

SS28
Diode 80V 2A Surface Mount DO-214AA(SMB)
DO-214AA(SMB)ROHS3 CompliantActive
DIODE SCHOTTKY 80V DO-214AA(SMB)
- Manufacturer
- onsemi
- Manufacturer part #
- SS28
- Store part #
- C3759988
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C3759988
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹119.47 | ₹119.47 |
| 10+ | ₹100.39 | ₹1,003.90 |
| 30+ | ₹90.85 | ₹2,725.50 |
| 100+ | ₹81.31 | ₹8,131.00 |
| 500+ | ₹75.68 | ₹37,840.00 |
| 1,000+ | ₹72.86 | ₹72,860.00 |
1 × ₹119.47
₹119.47
excl. GST
₹140.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS28
₹119.47 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Voltage - Forward(Vf@If)
- 850mV@2A
- Reverse Leakage Current (Ir)
- 400uA@80V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.18 g
Overview
The SS22 - S210 series includes high - efficiency, low power loss, general - propose Schottky rectifiers. The clip - bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
Applications
- Low Voltage - High-Frequency Inverters
- Free Wheeling
- Polarity Protection
Key features
- Glass-Passivated Junctions
- High-Current Capability, Low VF
