VISHAYDatasheet (PDF)

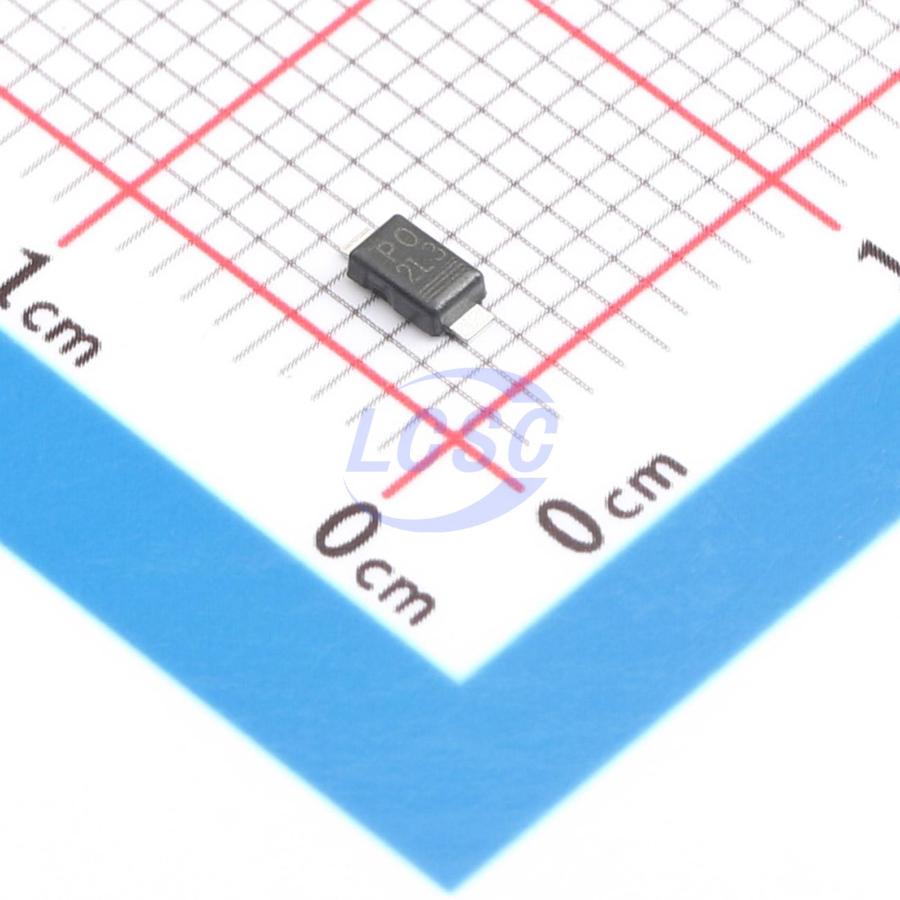

SS2FL3HM3/H
Diode 1 Independent 30V 2A Surface Mount DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- SS2FL3HM3/H
- Store part #
- C7369087
- Package / case
- DO-219AB(SMF)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7369087
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.82 | ₹65.82 |
| 10+ | ₹64.32 | ₹643.20 |
| 30+ | ₹63.46 | ₹1,903.80 |
| 100+ | ₹62.41 | ₹6,241.00 |
1 × ₹65.82
₹65.82
excl. GST
₹77.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS2FL3HM3/H
₹65.82 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 540mV@2A
- Reverse Leakage Current (Ir)
- 7uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
Applications
- For use in high-frequency inverters, freewheeling, DC/DC converters, and polarity protection in commercial, industrial, and automotive applications.
Key features
- Low-profile package
- Compatible with automatic placement
- Low forward voltage drop, low power dissipation
- Low leakage current
- MSL Level 1 per J-STD-020, LF max peak 260℃
- Wave and reflow solderable
- AEC-Q101 qualification available
- Automotive ordering code: base part number P/N HM3
- Compatible with SOD-123W package footprint
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | V3FL45-M3/H#C3758058VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 320 | ₹17.69 · 320 in stock | View |
 | V3FL45HM3/H#C6908671VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹25.64 · 0 in stock | View |
 | SS2FN6HM3/H#C7017792VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 30 | ₹21.63 · 30 in stock | View |
 | S345R#C432788Chongqing Pingwei Tech · SMF | Chongqing Pingwei Tech | SMF | 10 | ₹14.86 · 10 in stock | View |
 | SS2FH10-M3/H#C3757802VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 15 | ₹22.37 · 15 in stock | View |
