onsemiDatasheet (PDF)

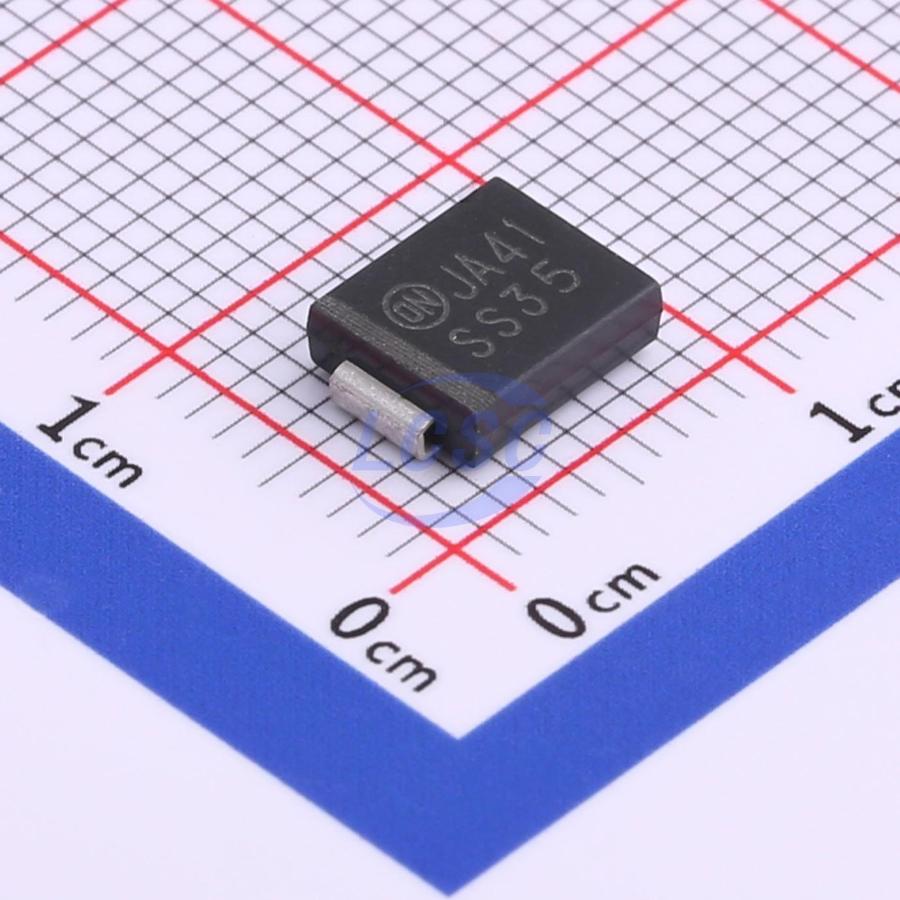

SS35
Diode Independent 50V 3A Surface Mount DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
DIODE SCHOTTKY 50V DO-214AB(SMC)
- Manufacturer
- onsemi
- Manufacturer part #
- SS35
- Store part #
- C719834
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
181 in stock
#C719834
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹101.70 | ₹101.70 |
| 10+ | ₹82.83 | ₹828.30 |
| 30+ | ₹73.29 | ₹2,198.70 |
| 100+ | ₹63.97 | ₹6,397.00 |
| 500+ | ₹53.78 | ₹26,890.00 |
| 1,000+ | ₹50.96 | ₹50,960.00 |
1 × ₹101.70
₹101.70
excl. GST
₹120.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SS35
₹101.70 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 750mV@3A
- Reverse Leakage Current (Ir)
- 500uA@50V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.366 g
Overview
The SS32 - S310 series includes a high - efficiency, low power loss, general - propose Schottky rectifiers. The clip - bonded leg structure provides high thermal performance and low electrical resistance. These rectifiers are suited for free wheeling, secondary rectification, and reverse polarity protection applications.
Key features
- Metal to Silicon Rectifiers, Majority Carrier Conduction
- Low - Forward Voltage Drop
- Easy Pick and Place
- High - Surge Current Capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSL510#C698828YANGJIE · SMC(DO-214AB) | YANGJIE | SMC(DO-214AB) | 1,860 | ₹21.95 · 1,860 in stock | View |
 | SS420C#C330395LGE · SMC | LGE | SMC | 10,500 | ₹17.97 · 10,500 in stock | View |
 | SS38#C2903705LGE · SMC | LGE | SMC | 2,130 | ₹8.24 · 2,130 in stock | View |
 | SS310#C717452LGE · SMC | LGE | SMC | 2,955 | ₹13.36 · 2,955 in stock | View |
 | SK56_R2_00001#C391704PANJIT · SMC | PANJIT | SMC | 4 | ₹30.85 · 4 in stock | View |
