MDD(Microdiode Semiconductor)Datasheet (PDF)

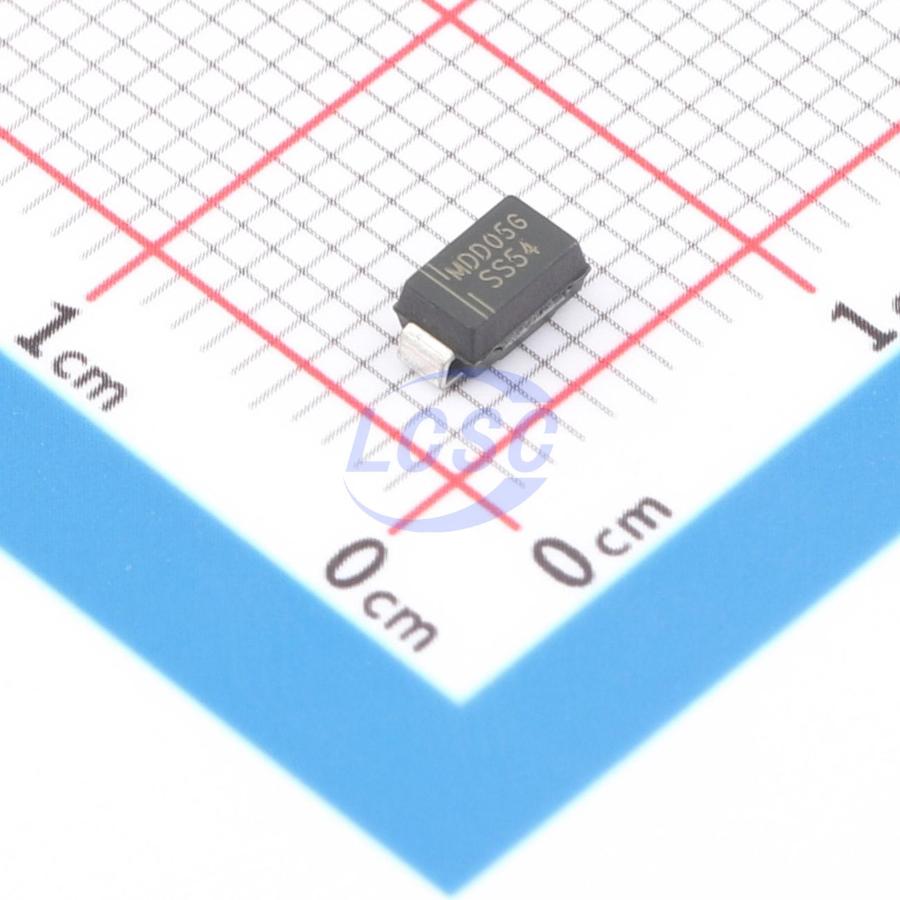

SS54
Diode Independent 40V 5A Surface Mount SMA(DO-214AC)
PopularSMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMA(DO-214AC)
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- SS54
- Store part #
- C22452
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,37,400 in stock
#C22452
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.93 | ₹59.30 |
| 100+ | ₹4.83 | ₹483.00 |
| 300+ | ₹4.27 | ₹1,281.00 |
| 1,000+ | ₹3.81 | ₹3,810.00 |
| 5,000+ | ₹3.25 | ₹16,250.00 |
| 10,000+ | ₹3.15 | ₹31,500.00 |
10 × ₹5.93
₹59.30
excl. GST
₹69.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SS54
₹59.30 for 10 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+125℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 550mV@5A
- Reverse Leakage Current (Ir)
- 1mA@40V
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.171 g
Overview
Key features
- Plastic package meets UL 94V-0 flammability rating
- Surface mount application
- Metal-silicon junction, majority carrier conduction
- Low power consumption, high efficiency
- Built-in stress relief, suitable for automated placement
- High forward surge current capability
- Guaranteed high-temperature soldering: terminals at 250℃ for 10 seconds
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS56#C65009MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 2,11,740 | ₹7.03 · 2,11,740 in stock | View |
 | SS510#C65010MDD(Microdiode Semiconductor) · SMA(DO-214AC) | MDD(Microdiode Semiconductor) | SMA(DO-214AC) | 4,15,010 | ₹6.96 · 4,15,010 in stock | View |
 | SS5200#C2994332MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | 22,005 | ₹15.76 · 22,005 in stock | View |
| SS55#C2994342MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | On request | ₹11.64 · 0 in stock | View | |
| SS58#C2994347MDD(Microdiode Semiconductor) · SMA | MDD(Microdiode Semiconductor) | SMA | On request | ₹12.25 · 0 in stock | View | |
