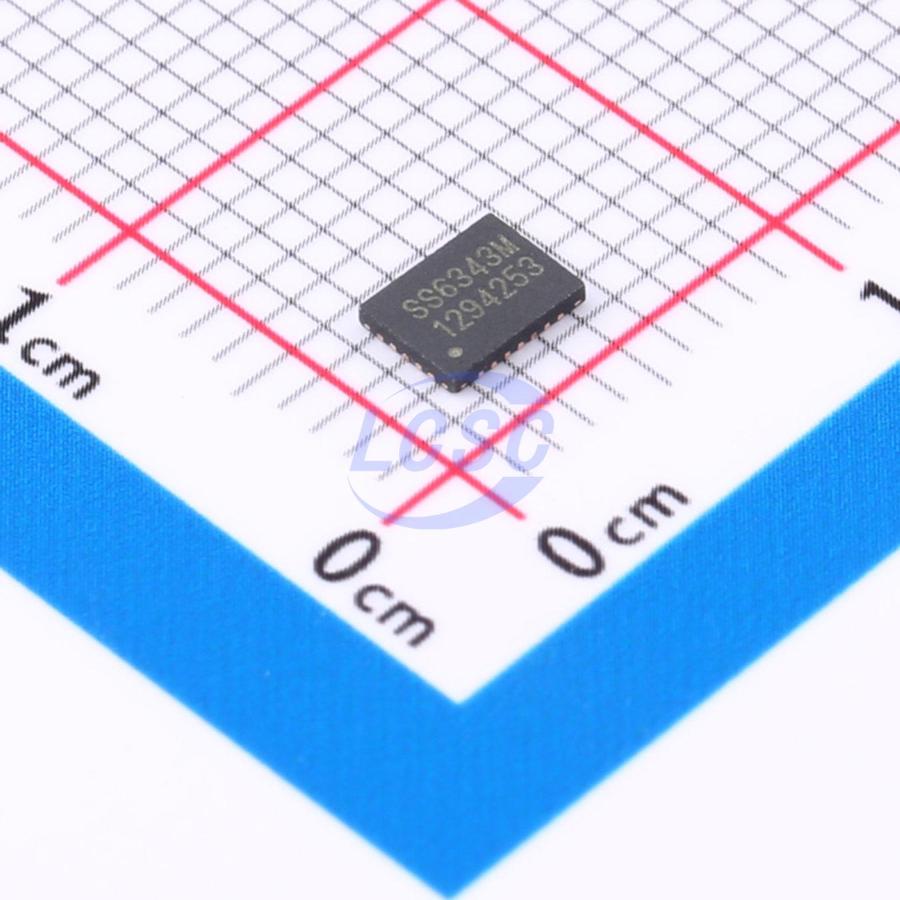

SS6343M-QF-TP
3V~16V QFN-24-EP(3x4) Motor Drivers, Controllers RoHS
Three-phase DC brushless motor driver IC
- Manufacturer
- LEADPOWER
- Manufacturer part #
- SS6343M-QF-TP
- Store part #
- C5370899
- Package / case
- QFN-24-EP(3x4)
- Category
- Motor Drivers, Controllers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,237 in stock
#C5370899
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹109.20 | ₹109.20 |
| 10+ | ₹86.58 | ₹865.80 |
| 30+ | ₹75.27 | ₹2,258.10 |
| 100+ | ₹63.95 | ₹6,395.00 |
| 500+ | ₹57.43 | ₹28,715.00 |
| 1,000+ | ₹53.95 | ₹53,950.00 |
1 × ₹109.20
₹109.20
excl. GST
₹128.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SS6343M-QF-TP
₹109.20 for 1 + GST
Specifications
- Drive Type
- Three Phase
- Voltage - Supply
- 3V~16V
- Technology
- Yes
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 2mA
- Output Current
- 2A
- Number of Half Bridges
- 3
- Peak Current
- 7A
- RDS(on)
- 70mΩ
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.07 g
Overview
The SS6343M is a three-phase brushless DC motor driver. It integrates three half-bridges comprising six N-channel power MOSFETs, along with pre-drivers and gate drive power supplies. The SS6343M provides enable and PWM inputs for each half-bridge. The SS6343M is capable of continuously delivering 2A drive current (depending on temperature and PCB conditions), with a peak overcurrent protection threshold of 7A. It uses an internal charge pump to generate the gate drive supply voltage for the high-side MOSFETs, and employs a trickle charge circuit to maintain sufficient gate drive voltage for operation at 100% duty cycle. Integrated protection features include thermal shutdown, undervoltage lockout (UVLO), and overcurrent protection (OCP). The SS6343M is offered in a 24-pin 3mm×4mm QFN package with an exposed thermal pad.
Applications
- Three-phase brushless DC motor driver
- Typical application circuit
Key features
- 3V to 16V operating voltage range
- Triple integrated half-bridge driver
- 2A continuous output current capability
- MOSFET on-resistance: 70mΩ per FET
- SS6343M: ENBL & PWM control interface
- Integrated 3.3V/100mA LDO voltage regulator
- Integrated charge pump supporting 100% PWM duty cycle operation
- Automatic synchronous rectification
- Integrated UVLO and over-temperature protection
- Overcurrent protection threshold up to 7A peak
- Package: QFN-24 (3mm×4mm)
