VISHAYDatasheet (PDF)

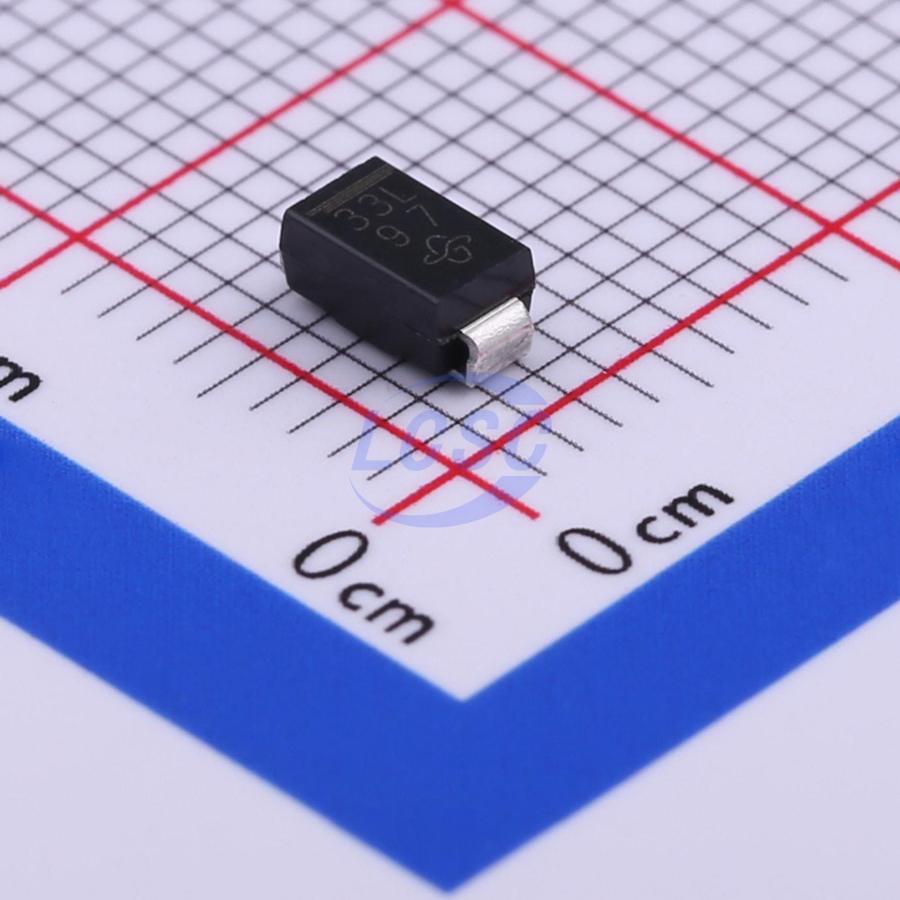

SSA33L-E3/61T
Diode 1 Independent 30V 3A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 30V SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SSA33L-E3/61T
- Store part #
- C435944
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,815 in stock
#C435944
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.07 | ₹210.35 |
| 50+ | ₹32.65 | ₹1,632.50 |
| 150+ | ₹28.60 | ₹4,290.00 |
| 500+ | ₹23.56 | ₹11,780.00 |
| 1,800+ | ₹18.89 | ₹34,002.00 |
| 5,400+ | ₹17.54 | ₹94,716.00 |
5 × ₹42.07
₹210.35
excl. GST
₹248.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SSA33L-E3/61T
₹210.35 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 450mV@3A
- Reverse Leakage Current (Ir)
- 500uA@30V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
Applications
- Low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSA33L#C5563752FUXINSEMI · SMA(DO-214AC) | FUXINSEMI | SMA(DO-214AC) | 1,190 | ₹9.10 · 1,190 in stock | View |
 | SL34A#C5445980FUXINSEMI · DO-214AC(SMA) | FUXINSEMI | DO-214AC(SMA) | 3,410 | ₹6.97 · 3,410 in stock | View |
 | TSS34LA#C2917896ZHIDE · SMA | ZHIDE | SMA | 225 | ₹13.45 · 225 in stock | View |
 | CMSH3-40MA#C48937470Central · SMA | Central | SMA | 3,622 | ₹52.95 · 3,622 in stock | View |
 | B330A-13-F#C110485DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 8,250 | ₹24.13 · 8,250 in stock | View |
