VISHAYDatasheet (PDF)

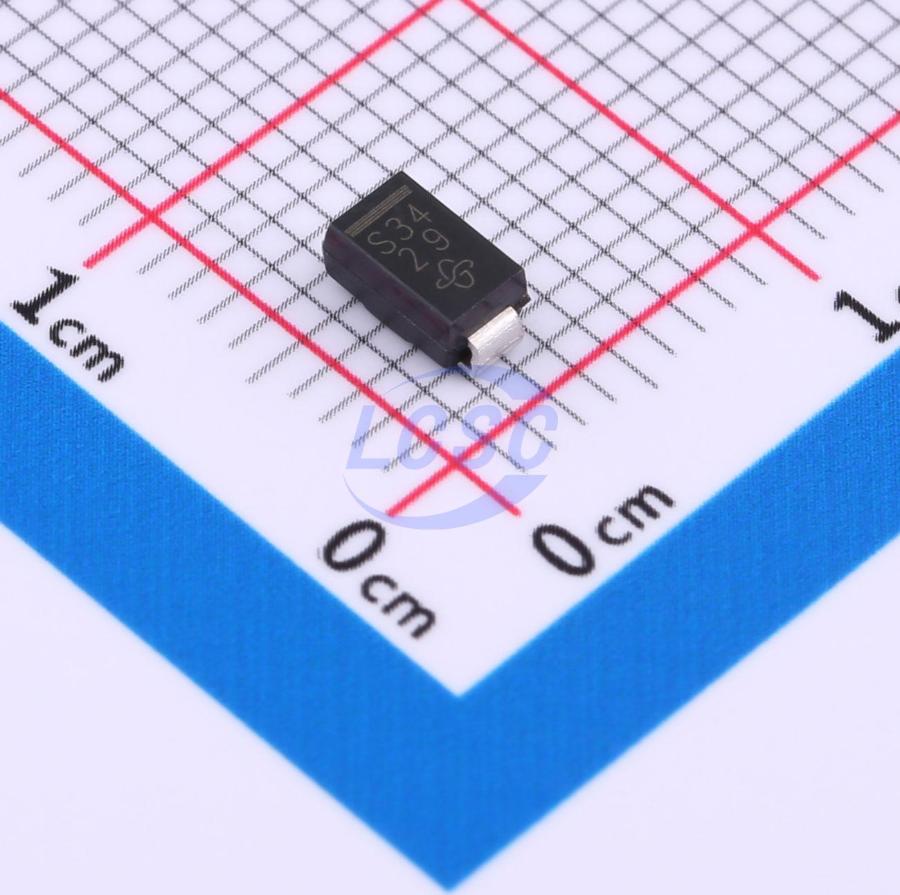

SSA34-E3/5AT
1 Independent 40V 490mV@3A 3A DO-214AC(SMA) Single Diodes RoHS
DO-214AC(SMA)ROHS3 CompliantActive
- Manufacturer
- VISHAY
- Manufacturer part #
- SSA34-E3/5AT
- Store part #
- C6302059
- Package / case
- DO-214AC(SMA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,395 in stock
#C6302059
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.26 | ₹106.30 |
| 50+ | ₹16.56 | ₹828.00 |
| 150+ | ₹14.55 | ₹2,182.50 |
| 500+ | ₹12.04 | ₹6,020.00 |
| 2,500+ | ₹10.93 | ₹27,325.00 |
| 7,500+ | ₹10.25 | ₹76,875.00 |
5 × ₹21.26
₹106.30
excl. GST
₹125.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
SSA34-E3/5AT
₹106.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 490mV@3A
- Reverse Leakage Current (Ir)
- 200uA@40V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.076 g
Overview
Applications
- For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- Low profile package
- Ideal for automated placement
- Guardring for overvoltage protection
- Low power losses, high efficiency
- Low forward voltage drop
- High surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃
- AEC-Q101 qualified available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SSA34HE3_A/I#C3758005VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 438 | ₹83.80 · 438 in stock | View | |
 | SSA34-E3/61T#C466998VISHAY · DO-214AC | VISHAY | DO-214AC | 21,885 | ₹23.76 · 21,885 in stock | View |
 | SSA34#C5563753FUXINSEMI · SMA(DO-214AC) | FUXINSEMI | SMA(DO-214AC) | 4,570 | ₹9.60 · 4,570 in stock | View |
 | SX34-AU_R1_000A1#C2910544PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 1,615 | ₹13.81 · 1,615 in stock | View |
 | SX34_R1_00001#C268717PANJIT · SMA(DO-214AC) | PANJIT | SMA(DO-214AC) | 18,900 | ₹10.24 · 18,900 in stock | View |
