VBsemi ElecDatasheet (PDF)

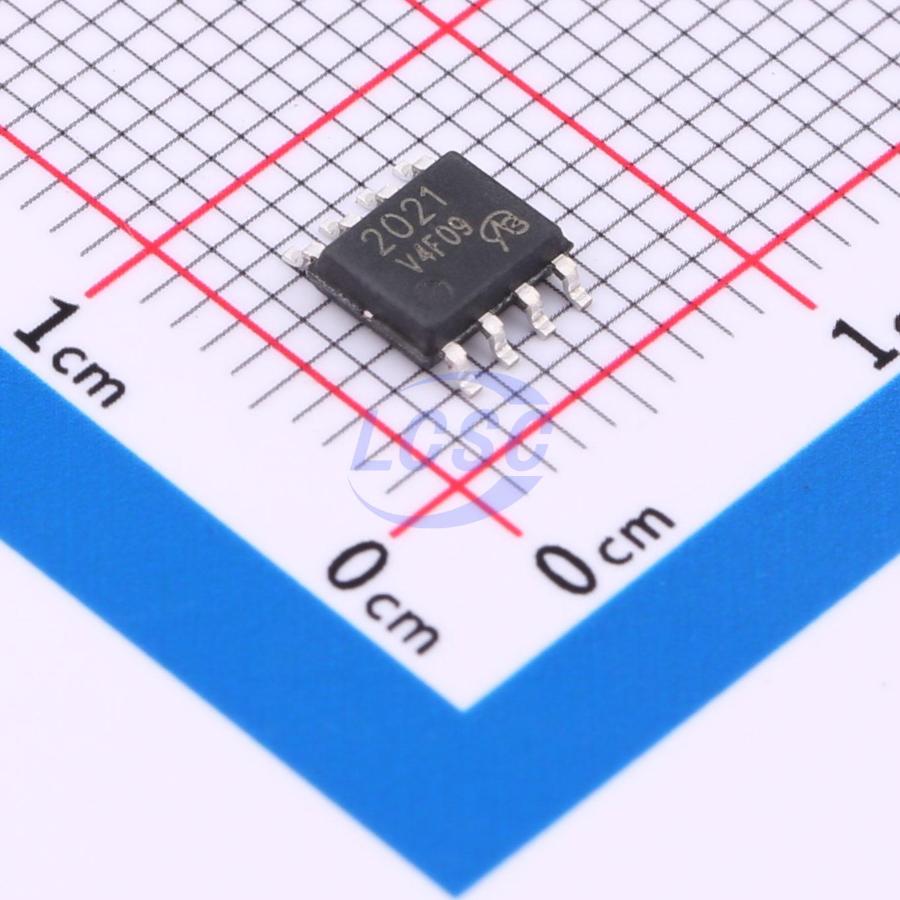

SSD2021-VB
N-Channel 30V 6.8A 2.7W Surface Mount SO-8
SO-8RoHSActive
MOSFET N-CH 30V 6.8A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSD2021-VB
- Store part #
- C22389856
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389856
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.18 | ₹210.90 |
| 50+ | ₹32.76 | ₹1,638.00 |
| 150+ | ₹28.72 | ₹4,308.00 |
| 500+ | ₹23.68 | ₹11,840.00 |
| 2,500+ | ₹21.43 | ₹53,575.00 |
| 4,000+ | ₹20.10 | ₹80,400.00 |
5 × ₹42.18
₹210.90
excl. GST
₹248.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSD2021-VB
₹210.90 for 5 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 117pF
- Current - Continuous Drain(Id)
- 6.8A
- Ciss-Input Capacitance
- 586pF
- Pd - Power Dissipation
- 2.7W
- Reverse Transfer Capacitance (Crss)
- 55pF
- RDS(on)
- 22mΩ@10V;26mΩ@4.5V
- Number
- 2 N-Channel
- Gate Charge(Qg)
- 15nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
Applications
- Set-top box - Low-current DC/DC converter
Key features
- Compliant with halogen-free requirements as defined by IEC 61249-2-21
- Trench power MOSFET
- 100% tested for single-pulse avalanche energy (UIS)
- 100% Rg tested
- Compliant with RoHS Directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI9936DY-T1-E3-VB#C19711280VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹57.91 · 20 in stock | View |
 | STS2DNF30L-VB#C19711291VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹45.67 · 50 in stock | View |
 | FDS6930-NL-VB#C20417661VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹45.67 · 50 in stock | View |
 | SI4936BDY-T1-E3-VB#C20417697VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹43.87 · 10 in stock | View |
 | MDS1528URH-VB#C20755536VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹45.67 · 50 in stock | View |
