VBsemi ElecDatasheet (PDF)

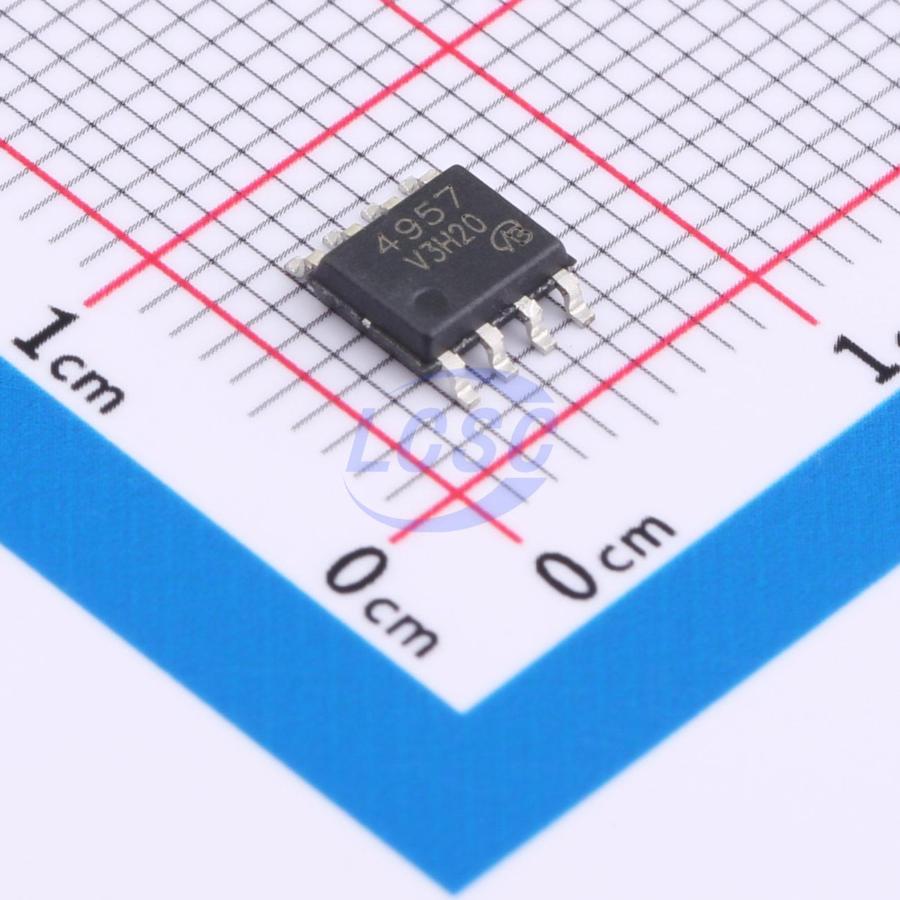

SSM4957GM-VB
P-Channel 30V 9.5A 5W Surface Mount SO-8
SO-8ROHS CompliantActive
MOSFET P-CH ARR 30V 9.5A SO-8
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- SSM4957GM-VB
- Store part #
- C7569063
- Package / case
- SO-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7569063
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.51 | ₹76.51 |
| 10+ | ₹60.78 | ₹607.80 |
| 30+ | ₹53.98 | ₹1,619.40 |
| 100+ | ₹45.48 | ₹4,548.00 |
| 500+ | ₹41.66 | ₹20,830.00 |
| 1,000+ | ₹39.53 | ₹39,530.00 |
1 × ₹76.51
₹76.51
excl. GST
₹90.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
SSM4957GM-VB
₹76.51 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 9.5A
- Output Capacitance(Coss)
- 215pF
- Ciss-Input Capacitance
- 1.35nF
- Pd - Power Dissipation
- 5W
- Reverse Transfer Capacitance (Crss)
- 135pF
- RDS(on)
- 21mΩ@10V
- Number
- 2 P-Channel
- Gate Charge(Qg)
- 32nC@10V;15nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.8V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.24 g
Overview
Applications
- Load Switch - Laptop - Desktop Computer - Gaming Console
Key features
- Halogen-free
- Trench power MOSFET
- 100% tested for single-pulse avalanche energy (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | UT4957G-S08-R-VB#C19711191VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 28 | ₹76.51 · 28 in stock | View |
 | BSO303P-VB#C22389265VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 10 | ₹72.47 · 10 in stock | View |
 | TSM4925DCS RL-VB#C2680827VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 50 | ₹74.37 · 50 in stock | View |
 | SQ4949EY-T1-GE3-VB#C29778707VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹72.47 · 20 in stock | View |
 | SP8J5FU6TB-VB#C29779033VBsemi Elec · SO-8 | VBsemi Elec | SO-8 | 20 | ₹72.47 · 20 in stock | View |
