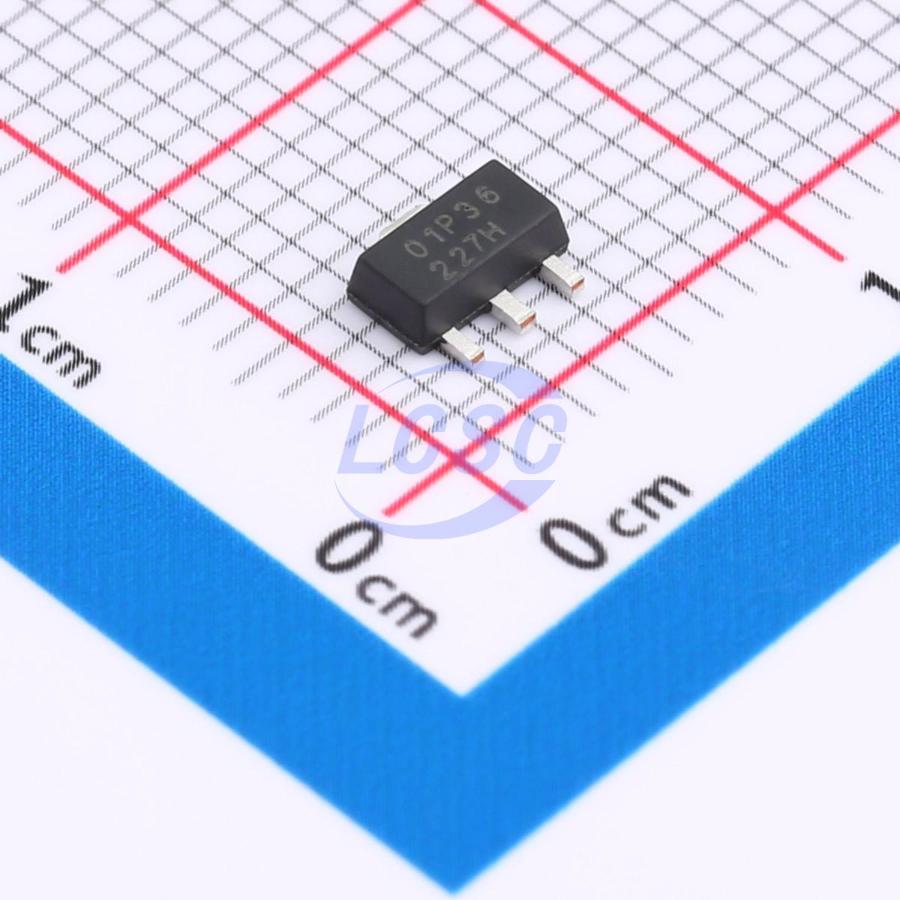

SSP7901P36PR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-89-3L
SOT-89-3LRoHSActive
300mA high-current, 40V high-voltage, low-power LDO
- Manufacturer
- Siproin
- Manufacturer part #
- SSP7901P36PR
- Store part #
- C5199823
- Package / case
- SOT-89-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,855 in stock
#C5199823
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.70 | ₹78.50 |
| 50+ | ₹12.46 | ₹623.00 |
| 150+ | ₹10.85 | ₹1,627.50 |
| 1,000+ | ₹8.61 | ₹8,610.00 |
| 2,000+ | ₹7.65 | ₹15,300.00 |
| 5,000+ | ₹7.16 | ₹35,800.00 |
5 × ₹15.70
₹78.50
excl. GST
₹92.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SSP7901P36PR
₹78.50 for 5 + GST
Specifications
- Output Voltage
- 3.6V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.6uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 36V
- Output Type
- Fixed
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.18 g
Overview
The SSP7901 series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies. The SSP7901 consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.
Applications
- Industrial control
- Consumer electronics
- Battery power equipment
- Wireless communication equipment
Key features
- Low Quiescent Current: 1.6μA(type)
- Temperature Stability: ±50ppm/°C
- Max input voltage: 40V
- Output voltage accuracy: tolerance ±2%
- Dropout Voltage: 20mV@Iout=10mA 350mV@Iout=100mA
- Max Output Current: 300mA
- Protections Circuits: Current Limiter, Short Circuit, Thermal shutdown
- Packages: SOT23-3L, SOR23-5L, SOT89-3L, SOT223
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSP7901P36PBR#C5199828Siproin · SOT-89-3L | Siproin | SOT-89-3L | 915 | ₹15.74 · 915 in stock | View |
 | SSP7903P36PR#C2965587Siproin · SOT-89-3 | Siproin | SOT-89-3 | 685 | ₹31.80 · 685 in stock | View |
