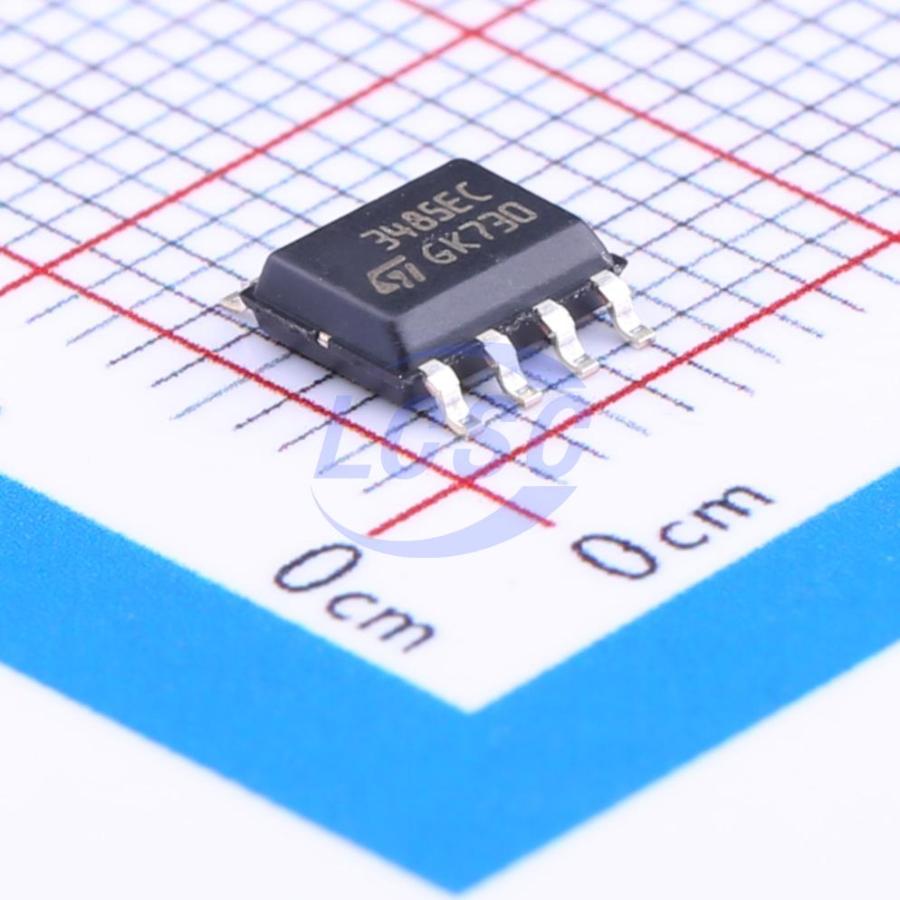

ST3485ECDR

The ST3485EB/EC/EI/EIY device is ±15 kV ESD protected, 3.3 V low power transceiver for RS485 and RS-422 communications. The device contains one driver and one receiver in half duplex configuration. The ST3485E device transmits and receives at a guaranteed data rate of at least 12 Mbps. All transmitter outputs and receiver inputs are protected to ±15 kV IEC 61000-4-2 air discharge. The driver is short-circuit current limited and is protected against excessive power dissipation by thermal shutdown circuitry that places the driver outputs into a high impedance state.

Key features

• ESD protection: ±15 kV IEC 61000-4-2 air discharge, ±8 kV IEC 61000-4-2 contact discharge
• Operate from a single 3.3 V supply - no charge pump required
• Interoperable with 5 V logic
• 1 μA low current shutdown mode max.
• Guaranteed 12 Mbps data rate
• -7 to 12 V common mode input voltage range
• Half duplex versions available
• Industry standard 75176 pinout
• Current limiting and thermal shutdown for driver overload protection
• Guaranteed high receiver output state for floating inputs with no signal present
• Allow up to 64 transceivers on the bus
• Available in SO8 package
• Automotive grade (ST3485EIY)
