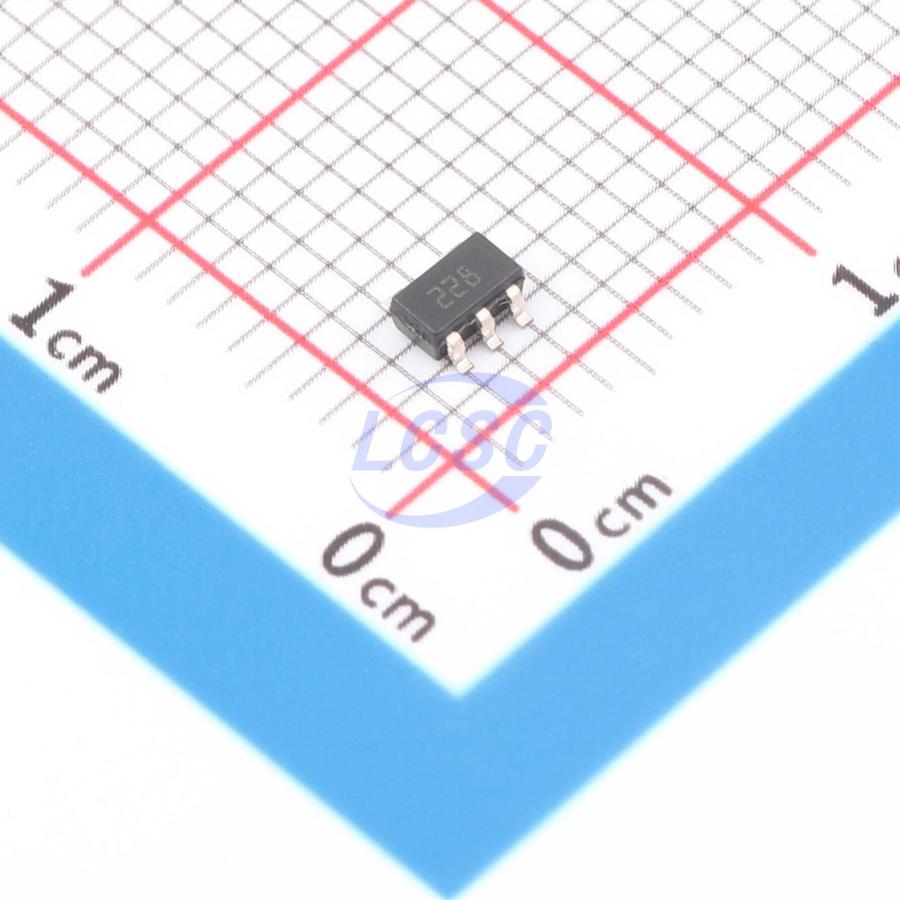

ST732M28R
2.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS3 CompliantActive
300 mA, 28V low-dropout regulator, 6 uA quiescent current
- Manufacturer
- ST
- Manufacturer part #
- ST732M28R
- Store part #
- C3745241
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C3745241
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹211.68 | ₹211.68 |
| 10+ | ₹177.55 | ₹1,775.50 |
| 30+ | ₹156.29 | ₹4,688.70 |
| 100+ | ₹134.39 | ₹13,439.00 |
| 500+ | ₹124.52 | ₹62,260.00 |
| 1,000+ | ₹120.22 | ₹1,20,220.00 |
1 × ₹211.68
₹211.68
excl. GST
₹249.78 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
ST732M28R
₹211.68 for 1 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Ta)
- Supply Current (Iq)
- 10uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 28V
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.039 g
Overview
The ST732 is 300 mA LDO regulator, designed to be used in several medium voltage applications. Ultra-low quiescent current of 5 μA makes it suitable for applications permanently connected to power supply/battery. This feature is also useful when electronic modules remain permanently turned on. The ST732 embeds protection functions, such as: current limit, short-circuit and thermal shutdown. The extended input voltage range, very low drop voltage and low quiescent current features make it suitable also for low power after-market automotive and consumer applications.
Applications
- Post regulation
- Electronic meters
- Smoke detectors / alarms
- Portable equipment
- Industrial applications
Key features
- Wide input voltage range: 2.5 V to 28 V
- Ultra-low quiescent current: typ. 5 μA at no-load, 10 μA max. across full temperature range
- Output voltage accuracy: ± 2%
- Output current up to 300 mA
- Fixed output voltage versions, starting from 1.2 V with 100 mV step
- Stable with low ESR capacitors (0.47 μF min.)
- Thermal shutdown protection
- Current limit protection
- -40 °C to +125 °C operating temperature range
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PJ54M28SE#C41367947PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 405 | ₹15.65 · 405 in stock | View |
 | SL54M28SE#C5185896Slkor · SOT-23-5 | Slkor | SOT-23-5 | 400 | ₹17.89 · 400 in stock | View |
 | TPS76328DBVR-MS#C30197529MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 2,930 | ₹21.09 · 2,930 in stock | View |
 | XC6204B282MR#C18212677TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,510 | ₹13.11 · 1,510 in stock | View |
 | LP2992IM5-2.8-MS#C54540034MSKSEMI · SOT-23-5 | MSKSEMI | SOT-23-5 | 3,000 | ₹19.13 · 3,000 in stock | View |
