VBsemi ElecDatasheet (PDF)

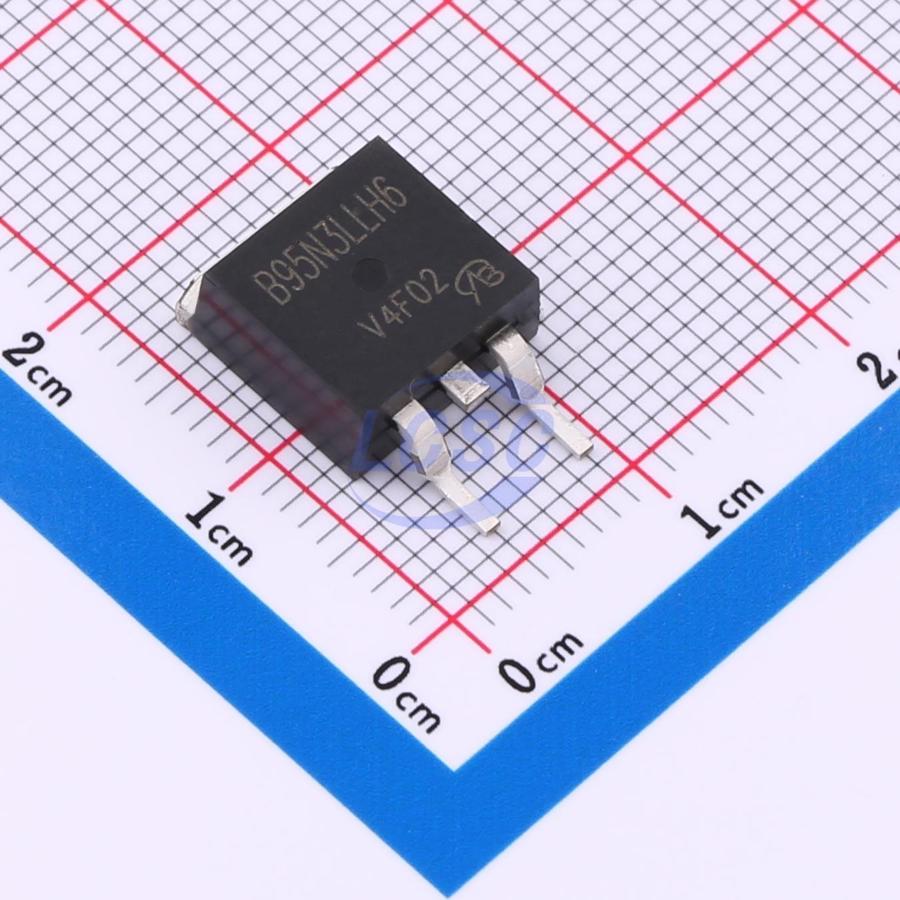

STB95N3LLH6-VB
N-Channel 30V 98A 250W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 30V 98A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STB95N3LLH6-VB
- Store part #
- C22389861
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C22389861
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.93 | ₹102.93 |
| 10+ | ₹82.98 | ₹829.80 |
| 50+ | ₹72.90 | ₹3,645.00 |
| 100+ | ₹63.03 | ₹6,303.00 |
| 500+ | ₹56.93 | ₹28,465.00 |
| 1,000+ | ₹53.99 | ₹53,990.00 |
1 × ₹102.93
₹102.93
excl. GST
₹121.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STB95N3LLH6-VB
₹102.93 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 1.725nF
- Current - Continuous Drain(Id)
- 98A
- Ciss-Input Capacitance
- 12.065nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 970pF
- RDS(on)
- 2.4mΩ@10V;2.7mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V;81.5nC@4.5V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.8 g
Overview
Applications
- OR gate applications
- Servers
- DC/DC converters
Key features
- Trench power MOSFET
- 100% Rq and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CFB70N03-VB#C22389274VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹102.93 · 10 in stock | View |
 | 2SK2958S-VB#C29778768VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹102.93 · 10 in stock | View |
 | L3803S-VB#C20417674VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹107.14 · 10 in stock | View |
 | SUB75N03-07-VB#C20417692VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹107.14 · 20 in stock | View |
 | IRF3711SPBF-VB#C29779285VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹123.00 · 50 in stock | View |
