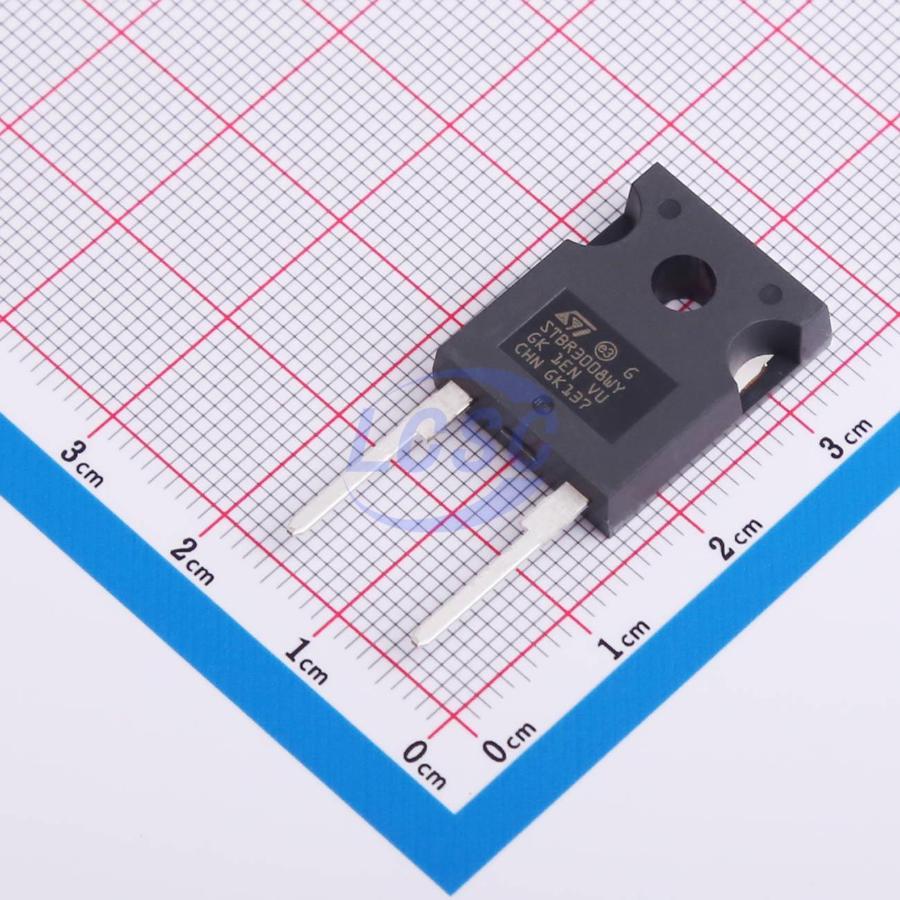

STBR3008WY
Diode 800V 30A Through Hole DO-247
DIODE STANDARD 800V 30A DO-247
- Manufacturer
- ST
- Manufacturer part #
- STBR3008WY
- Store part #
- C5268282
- Package / case
- DO-247
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C5268282
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹506.31 | ₹506.31 |
| 10+ | ₹437.86 | ₹4,378.60 |
| 30+ | ₹366.37 | ₹10,991.10 |
| 90+ | ₹325.09 | ₹29,258.10 |
| 510+ | ₹306.18 | ₹1,56,151.80 |
| 990+ | ₹297.49 | ₹2,94,515.10 |
1 × ₹506.31
₹506.31
excl. GST
₹597.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
STBR3008WY
₹506.31 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1.1V@30A
- Reverse Leakage Current (Ir)
- 2uA@800V
- Non-Repetitive Peak Forward Surge Current
- 350A
- Current - Rectified
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.36 g
Overview
The high quality design of this diode has produced a device with consistently reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy duty applications that demand long term reliability like automotive applications. Thanks to its ultra-low conduction losses, the STBR3008-Y is especially suitable for use as input bridge diode in battery chargers or charging stations.
Applications
- On board charger (OBC)
- Charging stations
- Bridge function
Key features
- AEC-Q101 qualified
- Ultra-low conduction losses
- Ultra-low reverse losses
- High junction temperature capability (175℃)
- VRRM guaranteed over -40 to 175℃ range
- D²PAK HV creepage distance (anode to cathode) minimum 5.38mm (with top coating)
- PPAP capable
- DO-247 package compliant with ECOPACK2
- D2PAK HV package compliant with ECOPACK1
