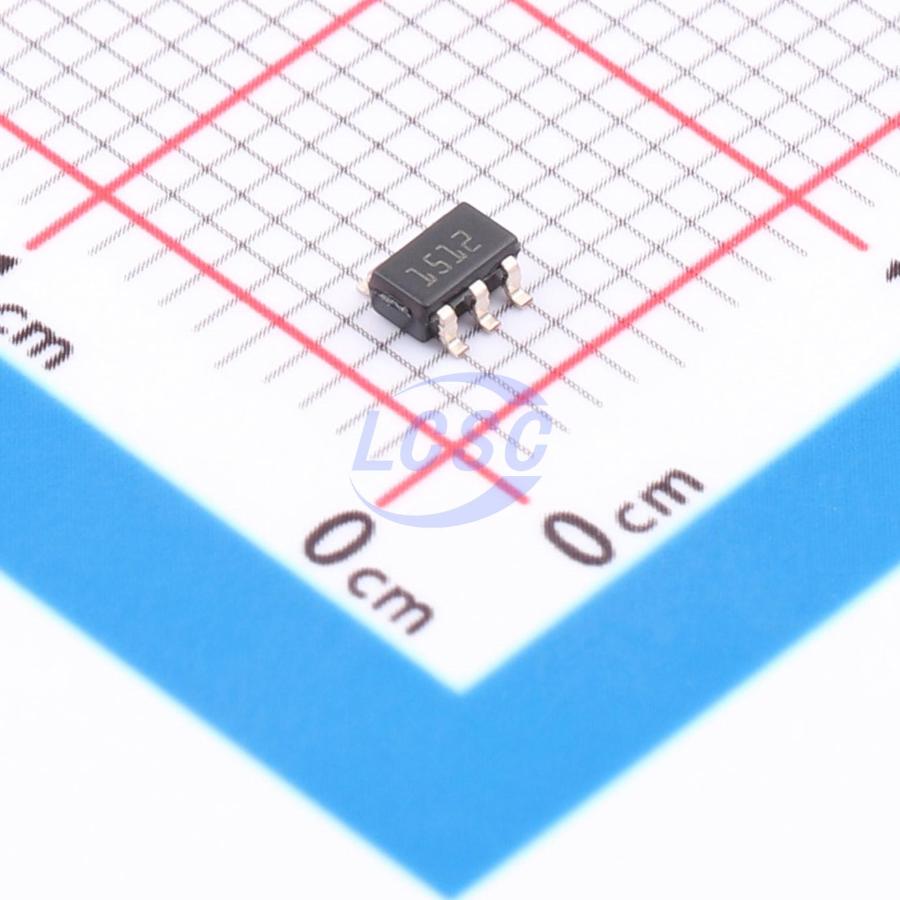

STLQ015M12R

1.2V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5LRoHSActive

150 mA - Ultra-Low Quiescent Current Linear Regulator

Manufacturer: ST
Manufacturer part #: STLQ015M12R
Store part #: C5267970
Package / case: SOT-23-5L
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

492 in stock

#C5267970

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹96.92	₹96.92
10+	₹77.41	₹774.10
30+	₹67.87	₹2,036.10
100+	₹58.12	₹5,812.00
500+	₹52.47	₹26,235.00
1,000+	₹49.44	₹49,440.00

Quantity (min 1)

1 × ₹96.92

₹96.92

excl. GST

₹114.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

STLQ015M12R

₹96.92 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 1.2V
Number of Outputs: 1
Operating Temperature: -40℃~+125℃
Supply Current (Iq): 1.7uA
Output Configuration: Positive
Operating Voltage: 5.5V
Output Current: 150mA
Output Type: Fixed
Features: Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.06 g

Overview

The STLQ015 provides 150 mA of maximum current with an input voltage range from 1.5 V to 5.5 V and a typical dropout voltage of 112 mV. The key feature of this device is its quiescent current, which is just 1.4 μA at maximum output current. The device is stable with a ceramic capacitor on the output. It offers very low quiescent current and extends battery-life of applications requiring very long standby time. The enable logic control function puts the STLQ015 in shutdown mode, reducing total current consumption to 1 nA. The device also includes short-circuit constant-current limiting and thermal protection. Typical applications are: portable and battery-powered systems, electronic sensors and microcontroller power supply.

Applications

Mobile phones
Digital still cameras (DSC)
Battery-powered equipment
Portable media players

Key features

Input voltage from 1.5 to 5.5 V
Very low quiescent current: 1.0 μA (typ.) at no load, 1.4 μA (typ.) at 150 mA load, 1 nA (typ.) in OFF mode, 200 nA max. in OFF mode at 125 °C
Output voltage tolerance: ± 2% at 25 °C
150 mA guaranteed output current
Wide range of output voltages: 0.8 V to 3.3 V in 100 mV steps
Logic-controlled electronic shutdown
Compatible with ceramic capacitor (C_OUT = 1 μF)
Internal current and thermal limit
Temperature range: from -40 °C to 125 °C
