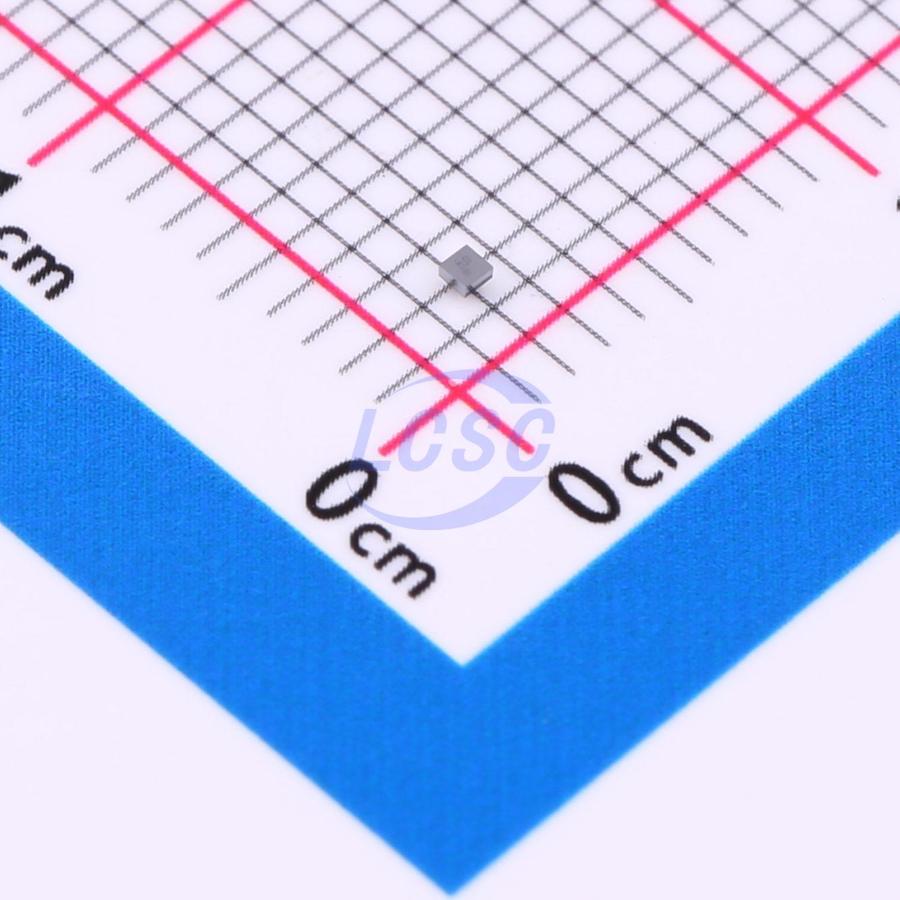

STLQ020J18R

The STLQ020 is a 200 mA low-dropout voltage regulator, able to work with an input voltage ranging from 2 V to 5.5 V. The typical dropout voltage at maximum load is 160 mV. The ultra-low quiescent current, which is just 0.3 μA at no load, extends battery-life of applications requiring very long standby time. Even though the device intrinsic consumption is ultra-low, STLQ020 is able to provide fast transient response and good PSRR performance, thanks to its adaptive biasing circuit. Enable pin puts the STLQ020 in shutdown mode, reducing total current consumption to 5 nA. The STLQ020 is designed to keep the quiescent current under control and at a low value also during dropout operation, helping to extend even more the operating time of battery- powered devices. It also includes short-circuit constant-current limiting and thermal protection. Several small package options are available.

Applications

• Smartphones/tablets
• Image sensors
• Wearable accessories
• Healthcare devices
• Metering

Key features

• Operating input voltage range: 2 V to 5.5 V
• Output current up to 200 mA
• Ultra-low quiescent current: 300 nA typ. at no load, 100 μA typ. at 200 mA load
• Controlled I9 in dropout conditions
• Very low-dropout voltage: 160 mV at 200 mA
• Output voltage accuracy: 2% at room temperature, 3% in full temperature range
• Output voltage versions: from 0.8 V to 4.5 V, with 50 mV step and adjustable
• Logic-controlled electronic shutdown
• Output discharge feature (optional)
• Internal overcurrent and thermal protections
• Temperature range: from -40 °C to +125 °C
• Packages: DFN6-2×2, SOT323-5L, Flip-Chip4
