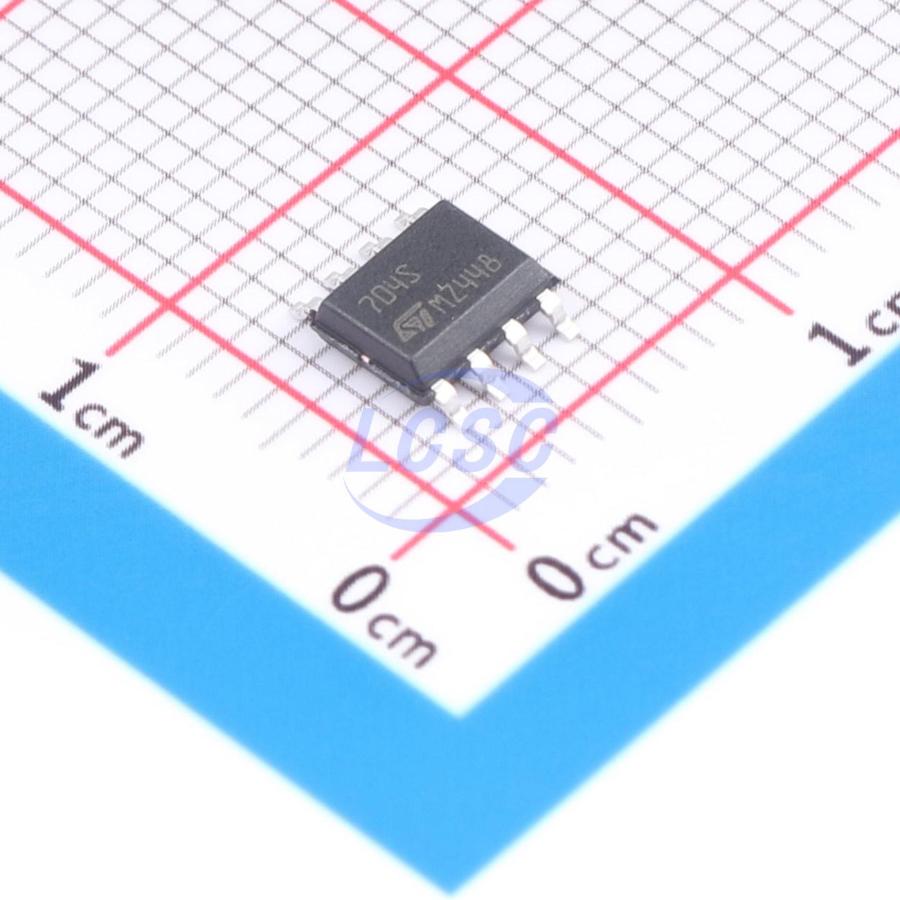

STM704SM6F
200ms Manual reset input Active Low 1.1V~5.5V 1 SO-8 Supervisors RoHS
- Manufacturer
- ST
- Manufacturer part #
- STM704SM6F
- Store part #
- C2066819
- Package / case
- SO-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,490 in stock
#C2066819
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹145.17 | ₹145.17 |
| 10+ | ₹119.47 | ₹1,194.70 |
| 30+ | ₹105.20 | ₹3,156.00 |
| 100+ | ₹89.22 | ₹8,922.00 |
| 500+ | ₹82.09 | ₹41,045.00 |
| 1,000+ | ₹78.85 | ₹78,850.00 |
1 × ₹145.17
₹145.17
excl. GST
₹171.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STM704SM6F
₹145.17 for 1 + GST
Specifications
- Reset Timeout
- 200ms
- output type
- Push-pull
- Operating Temperature
- -40℃~+85℃
- Function
- Manual reset input
- Reset Active Level
- Active Low
- Voltage - Supply
- 1.1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.625V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.262 g
Overview
The STM690/704/795/802/804/805/806 supervisors are self-contained devices which provide microprocessor supervisory functions with the ability to non-volatize and writeprotect external LPSRAM. A precision voltage reference and comparator monitors the VCC input for an out-of-tolerance condition. When an invalid VCC condition occurs, the reset output (RST) is forced low (or high in the case of RST). These devices also offer a watchdog timer (except for STM704/795/806) as well as a power-fail comparator (except for STM795) to provide the system with an early warning of impending power failure. These devices are available in a standard 8-pin SOIC package or a space-saving 8-pin TSSOP package.
Key features
- RST or RST outputs
- NVRAM supervisor for external LPSRAM Chip enable gating (STM795 only) for external LPSRAM (7 ns max prop delay)
- Manual (push-button) reset input
- 200 ms (typ) trec
- Watchdog timer - 1.6 s (typ)
- Automatic battery switchover
- Low battery supply current - 0.4 μA (typ)
- Power-fail comparator (PFI/PFO)
- Low supply current - 40 μA (typ)
- Guaranteed RST (RST) assertion down to VCC = 1.0 V
- Operating temperature: -40 °C to 85 °C (industrial grade)
- RoHS compliance – Lead-free components are compliant with the RoHS directive
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX690RESA+#C1354424MAXIM · SOIC-8 | MAXIM | SOIC-8 | 4 | ₹2,560.30 · 4 in stock | View |
| STM690RM6F#C2066229ST · SOIC-8 | ST | SOIC-8 | 10 | ₹542.89 · 10 in stock | View | |
 | STM795RM6F#C2067424ST · SOIC-8 | ST | SOIC-8 | 6 | ₹821.78 · 6 in stock | View |
 | TPV706RL1-SR-S#C388147933PEAK · SOP-8 | 3PEAK | SOP-8 | 190 | ₹62.55 · 190 in stock | View |
 | MAX706PCSA#C6454432MSKSEMI · SOP-8 | MSKSEMI | SOP-8 | 2,436 | ₹86.76 · 2,436 in stock | View |
