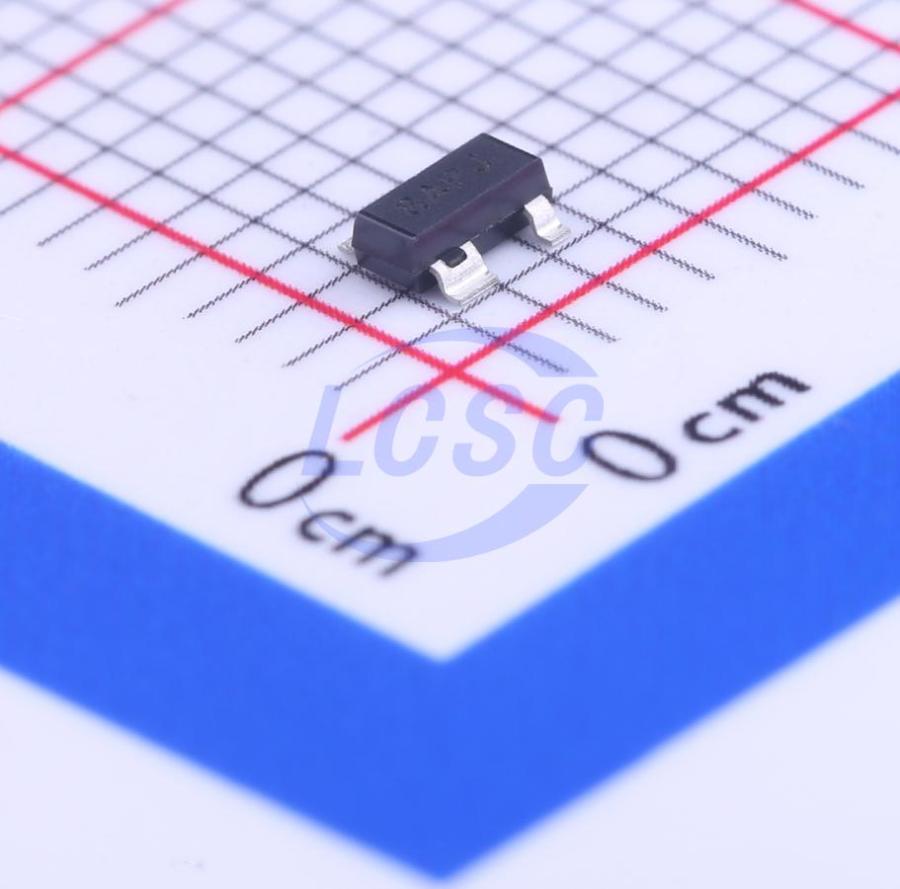

STM811SW16F
210ms Manual reset input Active Low 1V~5.5V 1 SOT-143 Supervisors RoHS
Reset circuits for precise monitoring of 3V, 3.3V and 5V supply voltages
- Manufacturer
- ST
- Manufacturer part #
- STM811SW16F
- Store part #
- C124715
- Package / case
- SOT-143
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16,818 in stock
#C124715
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.47 | ₹55.47 |
| 10+ | ₹43.51 | ₹435.10 |
| 30+ | ₹38.29 | ₹1,148.70 |
| 100+ | ₹31.77 | ₹3,177.00 |
| 500+ | ₹28.29 | ₹14,145.00 |
| 1,000+ | ₹26.54 | ₹26,540.00 |
1 × ₹55.47
₹55.47
excl. GST
₹65.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STM811SW16F
₹55.47 for 1 + GST
Specifications
- Reset Timeout
- 210ms
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 5.5uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.053 g
Overview
The STM809/810/811/812 microprocessor reset circuits are low-power supervisory devices used to monitor power supplies. They perform a single function: asserting a reset signal whenever the VCC supply voltage drops below a preset value and keeping it asserted until VCC has risen above the preset threshold for a minimum period of time (trec). The STM811/812 also provide a push-button reset input (MR).
Key features
- Precision monitoring of 3 V, 3.3 V, and 5 V supply voltages
- Two output configurations
- Push-pull RST output (STM809/811)
- Push-pull RST output (STM810/812)
- 140 ms reset pulse width (min)
- Low supply current - 6 μA (typ)
- Guaranteed RST/RST assertion down to VCC = 1.0 V
- Operating temperature: -40 °C to 85 °C (industrial grade)
- Lead-free, small SOT23 and SOT143 package
