VBsemi ElecDatasheet (PDF)

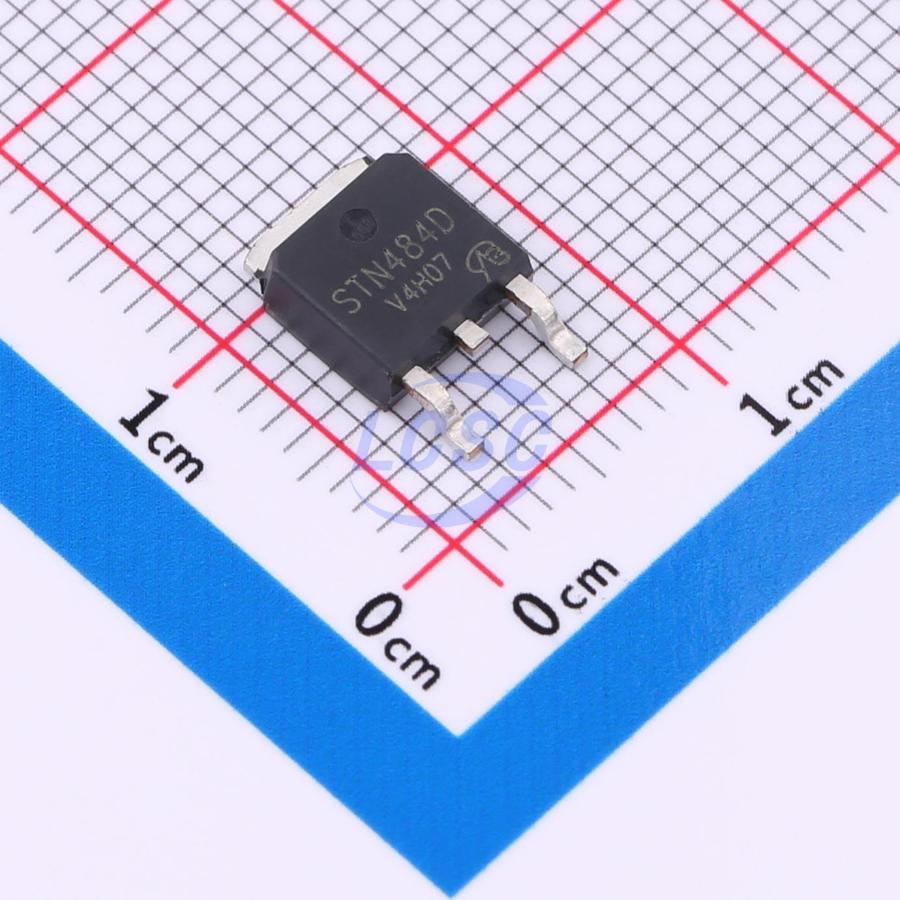

STN484D-VB
N-Channel 30V 80A 205W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 80A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- STN484D-VB
- Store part #
- C29779212
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C29779212
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.84 | ₹50.84 |
| 10+ | ₹39.91 | ₹399.10 |
| 30+ | ₹35.30 | ₹1,059.00 |
| 100+ | ₹29.41 | ₹2,941.00 |
| 500+ | ₹26.90 | ₹13,450.00 |
| 1,000+ | ₹25.22 | ₹25,220.00 |
1 × ₹50.84
₹50.84
excl. GST
₹59.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STN484D-VB
₹50.84 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Operating Temperature
- -55℃~+175℃
- Output Capacitance(Coss)
- 525pF
- Current - Continuous Drain(Id)
- 80A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 205W
- Reverse Transfer Capacitance (Crss)
- 270pF
- RDS(on)
- 6mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 61nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.45 g
Overview
Applications
- OR gate logic - Server - DC-DC converter
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDD6670A-NL-VB#C22389048VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 10 | ₹52.93 · 10 in stock | View |
 | AOD496-VB#C29778643VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹50.84 · 20 in stock | View |
 | AP73T03GH-VB#C29778911VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹50.84 · 20 in stock | View |
 | P0903BDG-VB#C2680757VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 2,044 | ₹38.53 · 2,044 in stock | View |
 | STD60N3LH5-VB#C29779205VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 27 | ₹67.92 · 27 in stock | View |
