STDatasheet (PDF)

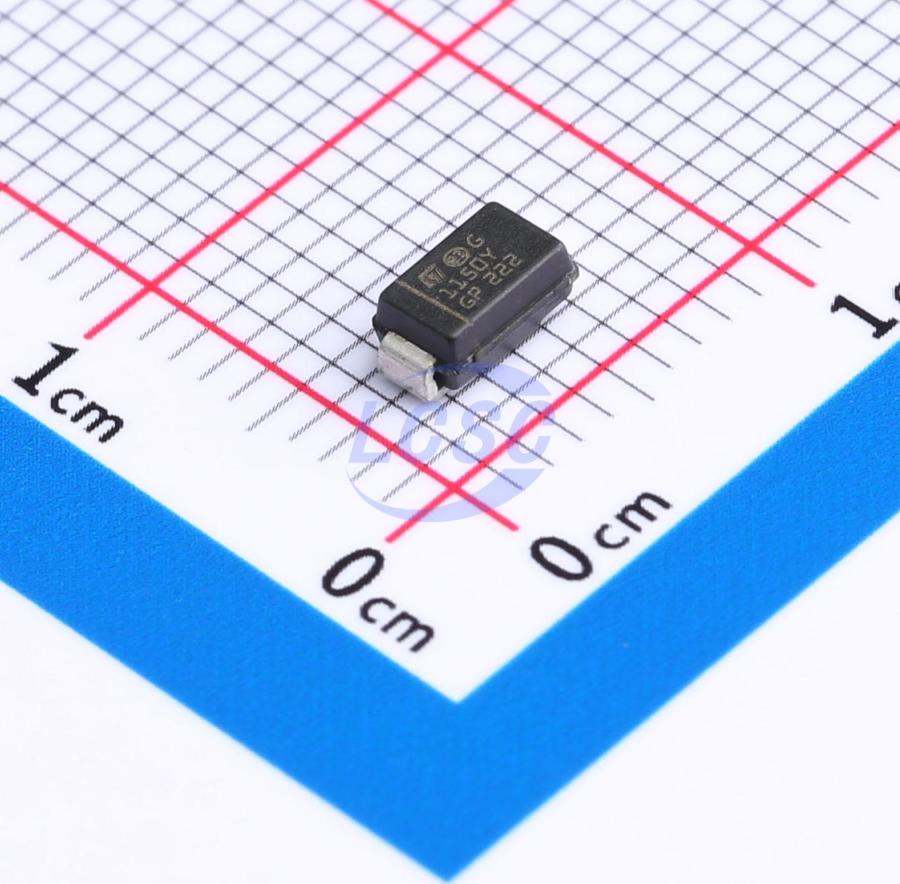

STPS1150AY
Diode 150V 1A Surface Mount DO-214AC
DO-214ACROHS3 CompliantActive
DIODE SCHOTTKY 150V DO-214AC
- Manufacturer
- ST
- Manufacturer part #
- STPS1150AY
- Store part #
- C2970353
- Package / case
- DO-214AC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C2970353
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.12 | ₹170.60 |
| 50+ | ₹26.75 | ₹1,337.50 |
| 150+ | ₹23.59 | ₹3,538.50 |
| 500+ | ₹19.65 | ₹9,825.00 |
| 2,500+ | ₹17.89 | ₹44,725.00 |
| 5,000+ | ₹16.84 | ₹84,200.00 |
5 × ₹34.12
₹170.60
excl. GST
₹201.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STPS1150AY
₹170.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Voltage - Forward(Vf@If)
- 820mV@1A
- Reverse Leakage Current (Ir)
- 1uA@150V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
This 150 V power Schottky rectifier is ideal for switch mode power supplies on up to 24 V rails and high frequency converters. Packaged in SMA, the STPS1150 - Y is intended for use in ECU (Engine Control Unit) and fly - back converters in automotive applications where low drop forward voltage is required to reduce power dissipation.
Applications
- Switched-mode power supplies up to 24V rail
- High-frequency converters
- Automotive ECU (Engine Control Unit)
- Automotive flyback converters
Key features
- AEC - Q101 qualified
- Negligible switching losses
- Low forward voltage drop for higher efficiency and extended battery life
- Low thermal resistance
- Surface mount miniature package
- Avalanche capability specified
- ECOPACK®2 compliant component
- PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS1150A#C315151ST · SMA | ST | SMA | 2,620 | ₹20.10 · 2,620 in stock | View |
 | SS115AQ#C5861926YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 7,680 | ₹6.73 · 7,680 in stock | View |
 | SS120AQ#C2942646YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | On request | ₹7.32 · 0 in stock | View |
 | SS220#C54426043luJing · SMA | luJing | SMA | 4,660 | ₹5.08 · 4,660 in stock | View |
 | SS315AQ#C7462787YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | On request | ₹9.72 · 0 in stock | View |
