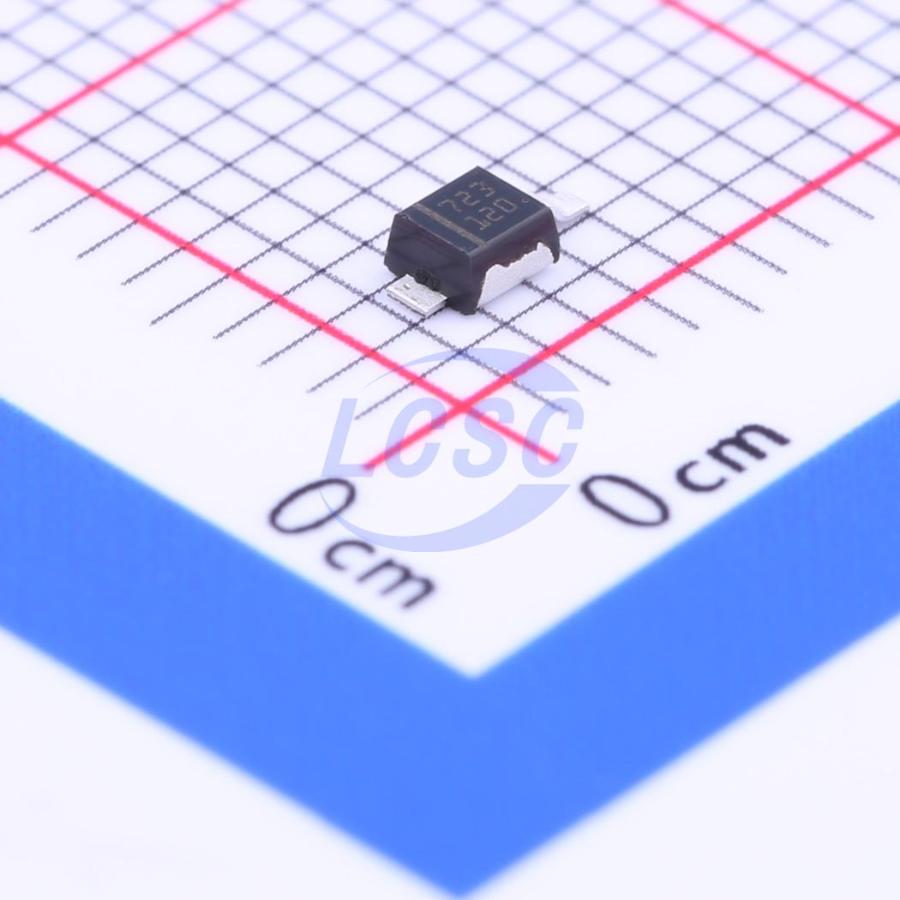

STPS120M
1 Independent 20V 490mV@1A 1A DO-216AA Single Diodes RoHS
DO-216AAROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STPS120M
- Store part #
- C221488
- Package / case
- DO-216AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C221488
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.55 | ₹107.75 |
| 50+ | ₹21.09 | ₹1,054.50 |
| 150+ | ₹20.78 | ₹3,117.00 |
| 500+ | ₹20.47 | ₹10,235.00 |
5 × ₹21.55
₹107.75
excl. GST
₹127.15 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 12,000 per reel
STPS120M
₹107.75 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 490mV@1A
- Reverse Leakage Current (Ir)
- 3.9uA@20V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 12,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.06 g
Overview
Single Schottky rectifier for switch-mode power supplies and high-frequency DC-DC converters. Available in STmite package, suitable for low-voltage, high-frequency inverters, freewheeling, and polarity protection applications. Due to its compact package size, this device is ideal for battery-powered equipment (mobile phones, laptops, PDAs, printers), as well as chargers and PCMCIA cards.
Applications
- Switch-mode power supplies
- High-frequency DC-DC converters
- Low-voltage, high-frequency inverters
- Freewheeling applications
- Polarity protection applications
- Battery-powered devices (mobile phones, laptops, PDAs, printers)
- Chargers
- PCMCIA cards
Key features
- Very low conduction losses
- Negligible switching losses
- Extremely fast switching speed
- Low forward voltage drop for improved efficiency and extended battery life
- Low thermal resistance
- Specified avalanche capability
- Conduction loss formula: P = 0.34 × I_F(AV) + 0.07 × I_F² (RMS)
