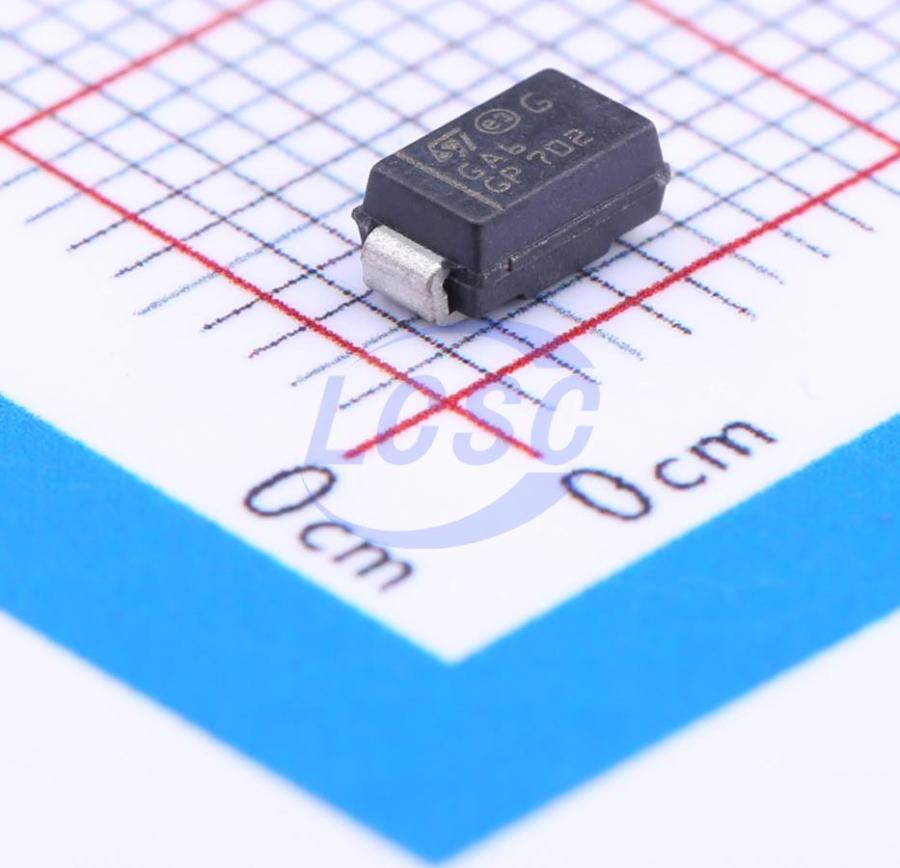

STPS160A
Diode 60V 1A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 60V SMA(DO-214AC)
- Manufacturer
- ST
- Manufacturer part #
- STPS160A
- Store part #
- C165938
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C165938
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.08 | ₹60.40 |
| 50+ | ₹11.81 | ₹590.50 |
| 150+ | ₹11.64 | ₹1,746.00 |
| 500+ | ₹11.47 | ₹5,735.00 |
5 × ₹12.08
₹60.40
excl. GST
₹71.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STPS160A
₹60.40 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 670mV@1A
- Reverse Leakage Current (Ir)
- 4uA@60V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
Single chip Schottky rectifiers suited to switched mode power supplies and high frequency DC to DC converters. Packaged in SMA and SMB, this device is especially intended for surface mounting and used in low voltage, high frequency inverters, free wheeling and polarity protection applications.
Applications
- Switching mode power supplies
- High-frequency DC-DC converters
- Low-voltage, high-frequency inverters
- Freewheeling applications
- Polarity protection applications
Key features
- Very small conduction losses
- Negligible switching losses
- Low forward voltage drop
- Surface mount miniature packages
- Avalanche capability specified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS3150AFN#C2971471ST · SMA | ST | SMA | 4 | ₹70.21 · 4 in stock | View |
 | RB058L-60DDTE25#C5336574ROHM · DO-214AC | ROHM | DO-214AC | 3 | ₹36.95 · 3 in stock | View |
| STPS3170AF#C2965442ST · SMA | ST | SMA | 149 | ₹53.14 · 149 in stock | View | |
 | SS26AQ#C2942653YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 6,110 | ₹9.00 · 6,110 in stock | View |
 | B360AE-13#C412514DIODES · SMA | DIODES | SMA | 6,965 | ₹55.59 · 6,965 in stock | View |
