STDatasheet (PDF)

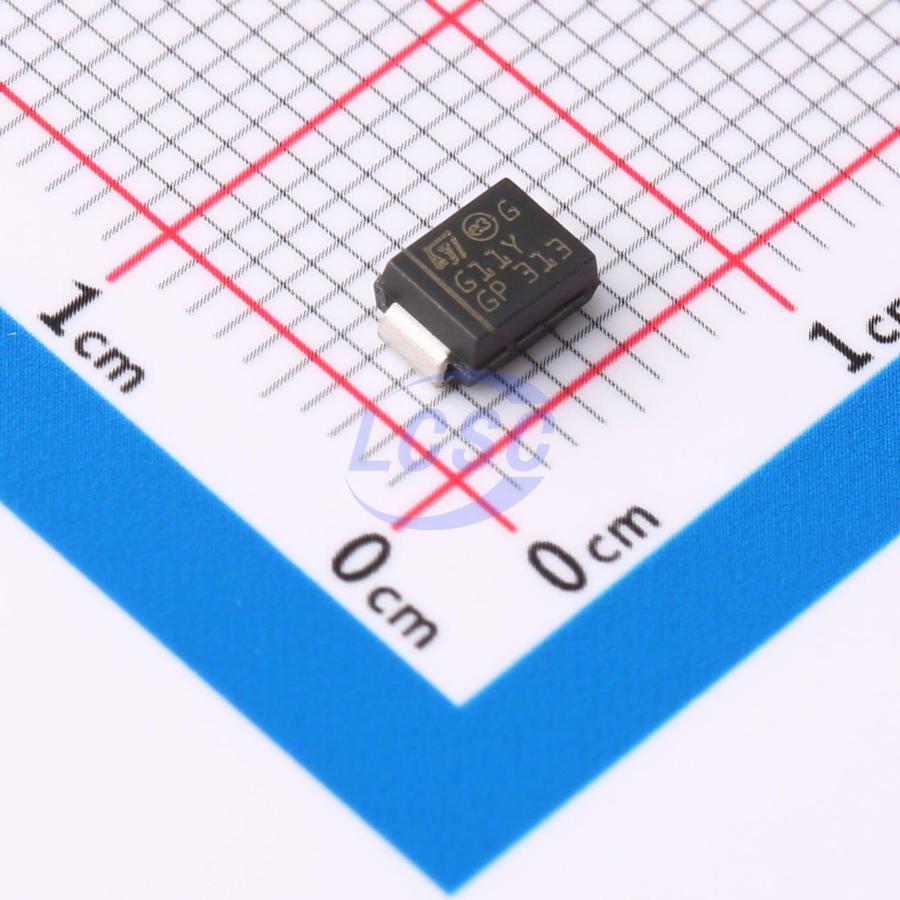

STPS1H100UY
Diode 100V 1A Surface Mount DO-214AA
DO-214AAROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-214AA
- Manufacturer
- ST
- Manufacturer part #
- STPS1H100UY
- Store part #
- C2965300
- Package / case
- DO-214AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C2965300
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹161.87 | ₹161.87 |
| 10+ | ₹132.46 | ₹1,324.60 |
| 30+ | ₹116.36 | ₹3,490.80 |
| 100+ | ₹98.11 | ₹9,811.00 |
| 500+ | ₹90.18 | ₹45,090.00 |
| 1,000+ | ₹86.52 | ₹86,520.00 |
1 × ₹161.87
₹161.87
excl. GST
₹191.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STPS1H100UY
₹161.87 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 770mV@1A
- Reverse Leakage Current (Ir)
- 4uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.396 g
Overview
Schottky rectifiers packaged in SMA or SMB, and designed for high frequency miniature switched mode power supplies as DC/DC converters for automotive applications. It is particularly suited for LED lighting applications, ADAS power, and ECU (Engine Control Unit) in automotive environment.
Applications
- High-frequency miniature switch-mode power supplies (DC/DC converters) for automotive applications
- LED lighting applications in automotive environments
- ADAS power supplies in automotive environments
- ECU (Engine Control Unit) in automotive environments
Key features
- AEC - Q101 qualified
- Negligible switching losses
- High junction temperature capability
- Low leakage current
- Good trade off between leakage current and forward voltage drop
- Avalanche capability specified
- ECOPACK®2 compliant component
- PPAP capable
- VRRM guaranteed from - 40℃ to +175℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS1H100U#C165939ST · SMB(DO-214AA) | ST | SMB(DO-214AA) | 20 | ₹14.66 · 20 in stock | View |
 | SK2B#C174022Suzhou Good-Ark Elec · SMB(DO-214AA) | Suzhou Good-Ark Elec | SMB(DO-214AA) | 225 | ₹13.32 · 225 in stock | View |
 | SL210B-TP#C725399MCC · SMB | MCC | SMB | 5 | ₹53.03 · 5 in stock | View |
 | MBRS1100#C3015358EIC · SMB | EIC | SMB | 2,931 | ₹34.54 · 2,931 in stock | View |
 | B1100LB-13-F#C85106DIODES · SMB(DO-214AA) | DIODES | SMB(DO-214AA) | 590 | ₹22.85 · 590 in stock | View |
