STDatasheet (PDF)

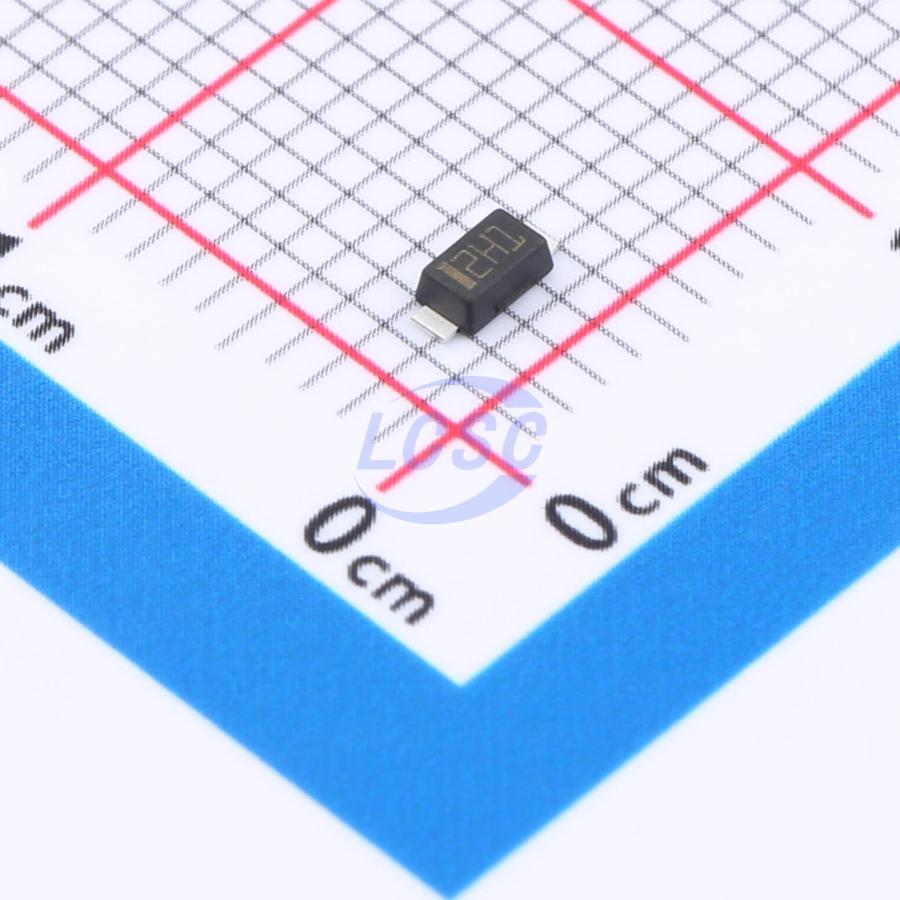

STPS2H100ZF
Diode 100V 2A Surface Mount SOD-123F
SOD-123FROHS3 CompliantActive
DIODE SCHOTTKY 100V SOD-123F
- Manufacturer
- ST
- Manufacturer part #
- STPS2H100ZF
- Store part #
- C2971165
- Package / case
- SOD-123F
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,445 in stock
#C2971165
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.37 | ₹106.85 |
| 50+ | ₹17.21 | ₹860.50 |
| 150+ | ₹15.14 | ₹2,271.00 |
| 500+ | ₹13.57 | ₹6,785.00 |
| 3,000+ | ₹12.33 | ₹36,990.00 |
| 6,000+ | ₹11.71 | ₹70,260.00 |
5 × ₹21.37
₹106.85
excl. GST
₹126.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
STPS2H100ZF
₹106.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 960mV@4A
- Reverse Leakage Current (Ir)
- 1uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
Single chip Schottky rectifiers suited to surface mounting and especially intended for use in high frequency converters, free-wheeling and reverse polarity protection.
Applications
- High-frequency converter
- Freewheeling
- Reverse polarity protection
Key features
- High junction temperature capability
- Low leakage current
- Negligible switching losses
- Avalanche capability specified
- ECOPACK 2 compliant component
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S210Q#C2942607YANGJIE · SOD-123 | YANGJIE | SOD-123 | 19,080 | ₹9.25 · 19,080 in stock | View |
 | LMBR2200FT1G#C559073LRC · SOD-123FL | LRC | SOD-123FL | 10,015 | ₹13.67 · 10,015 in stock | View |
 | S215FA#C894237onsemi · SOD-123FL | onsemi | SOD-123FL | On request | ₹55.95 · 0 in stock | View |
 | DSS220#C2917822ZHIDE · SOD-123FL | ZHIDE | SOD-123FL | 3,000 | ₹6.73 · 3,000 in stock | View |
 | PNE20020AERX-MS#C52287506MSKSEMI · SOD-123FL | MSKSEMI | SOD-123FL | 1,770 | ₹9.83 · 1,770 in stock | View |
