STDatasheet (PDF)

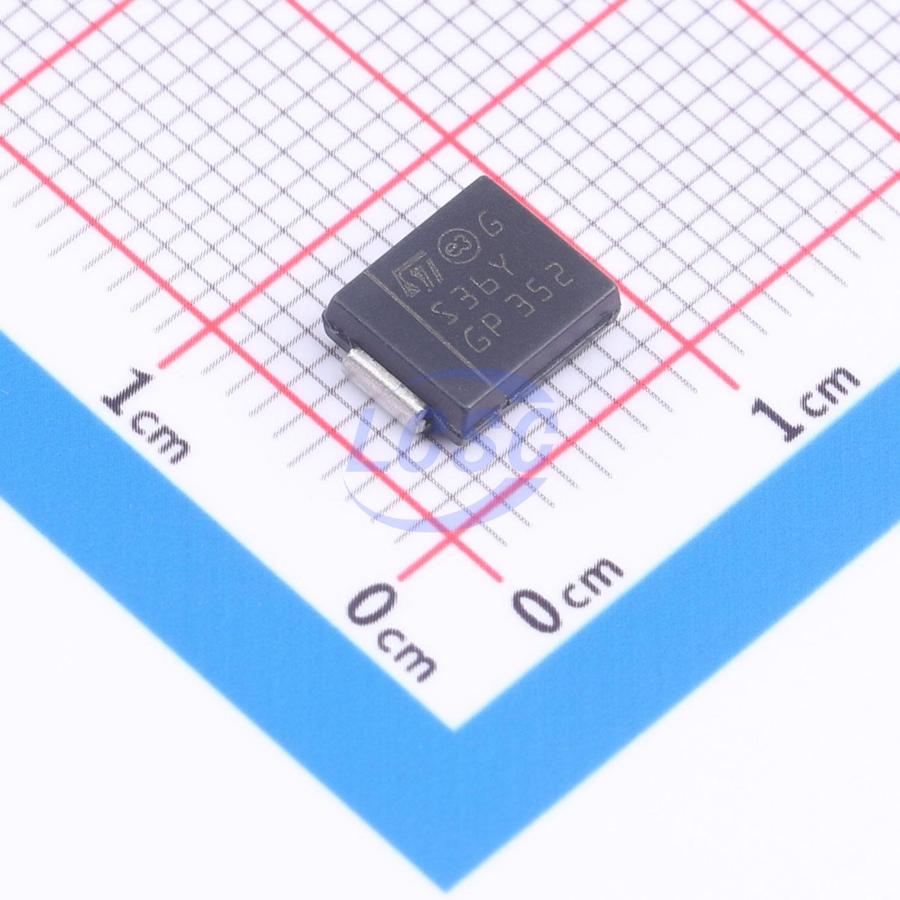

STPS3L60SY
1 Independent 60V 700mV@3A 3A DO-214AB Single Diodes RoHS
DO-214ABROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STPS3L60SY
- Store part #
- C2971007
- Package / case
- DO-214AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
83 in stock
#C2971007
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.74 | ₹102.74 |
| 10+ | ₹100.81 | ₹1,008.10 |
| 30+ | ₹99.74 | ₹2,992.20 |
| 100+ | ₹98.67 | ₹9,867.00 |
1 × ₹102.74
₹102.74
excl. GST
₹121.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
STPS3L60SY
₹102.74 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -40℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 700mV@3A
- Reverse Leakage Current (Ir)
- 55uA@60V
- Non-Repetitive Peak Forward Surge Current
- 75A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.327 g
Overview
Schottky rectifier in SMC package. Technical parameters include: dPtot/dTj <1/Rth(j-a) condition to avoid thermal runaway of the diode on its own heatsink; pulse test conditions: tp=380μs, δ<2%; conduction loss formula: P=0.54×IF(AV)+0.037×IF(RMS)².
Applications
- Switching mode power supplies
- High-frequency DC-DC converters
- Automotive DC/DC chargers
Key features
- Negligible switching losses
- Low thermal resistance
- Specified avalanche capability
- AEC Q101 compliant
- ECOPACK®2 compliant
- Epoxy meets UL94 V0
- Lead-free package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STPS3L60S#C183500ST · SMC(DO-214AB) | ST | SMC(DO-214AB) | 75 | ₹40.17 · 75 in stock | View |
 | B360-13-F-HXY#C52988721HXY MOSFET · SMC | HXY MOSFET | SMC | 20 | ₹18.02 · 20 in stock | View |
 | CMSH3-60TR13-HXY#C52988722HXY MOSFET · SMC | HXY MOSFET | SMC | 90 | ₹46.23 · 90 in stock | View |
 | SS36-E3/57T-HXY#C52988723HXY MOSFET · SMC | HXY MOSFET | SMC | 2,530 | ₹23.19 · 2,530 in stock | View |
 | STPS3L60S-HXY#C52988724HXY MOSFET · SMC | HXY MOSFET | SMC | 520 | ₹28.76 · 520 in stock | View |
