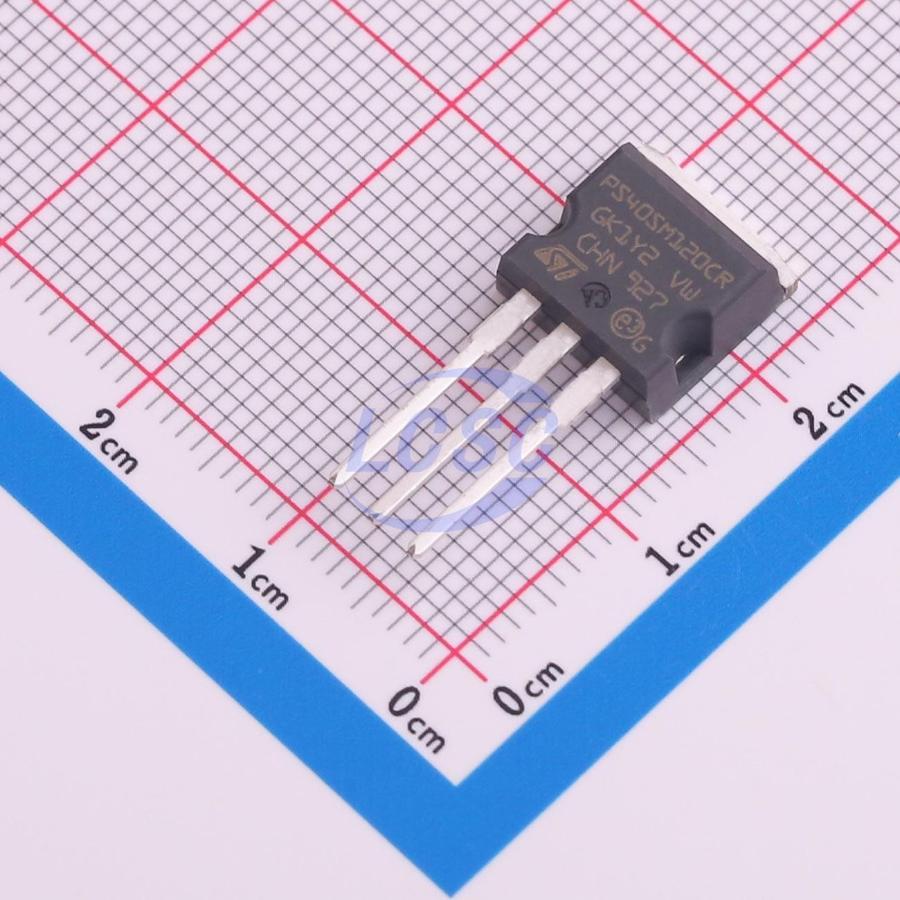

STPS40SM120CR
Diode Array 1 Pair Common Cathode 120V 20A I2PAK
DIODE ARR SCHOTTKY 120V I2PAK
- Manufacturer
- ST
- Manufacturer part #
- STPS40SM120CR
- Store part #
- C5268344
- Package / case
- I2PAK
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C5268344
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹377.19 | ₹377.19 |
| 10+ | ₹319.66 | ₹3,196.60 |
| 50+ | ₹285.30 | ₹14,265.00 |
| 100+ | ₹250.75 | ₹25,075.00 |
| 500+ | ₹234.86 | ₹1,17,430.00 |
| 1,000+ | ₹227.56 | ₹2,27,560.00 |
1 × ₹377.19
₹377.19
excl. GST
₹445.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
STPS40SM120CR
₹377.19 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 120V
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - Forward(Vf@If)
- 830mV@20A
- Reverse Leakage Current (Ir)
- 275uA@120V
- Non-Repetitive Peak Forward Surge Current
- 210A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.2 g
Overview
This Schottky rectifier is suitable for high-frequency switch-mode power supplies. Its forward voltage drop versus leakage current trade-off meets the requirements of medium-power, high-density adapter designs. The STPS40SM120C in TO-220AB and I2PAK packages is optimized for laptop, gaming console, and desktop adapter applications, delivering good efficiency across both light and heavy load conditions.
Applications
- Switching diode
- Switch-mode power supply (SMPS)
- DC/DC converter
- LED lighting
- Laptop adapter
- Gaming console adapter
- Desktop adapter
Key features
- High current capability
- Avalanche rated
- Low forward voltage drop
- High-frequency operation
- ECOPACK®2 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CDBKA20120L-HF#C20185461Comchip · TO-262 | Comchip | TO-262 | On request | ₹86.44 · 0 in stock | View | |
| MBRJL30150CT-BP#C19987895MCC · TO-262 | MCC | TO-262 | On request | ₹148.97 · 0 in stock | View | |
| STPS40M120CR#C7089900ST · I2PAK | ST | I2PAK | On request | ₹353.43 · 0 in stock | View | |
| VI40120C-E3/4W#C5825954VISHAY · TO-262AA | VISHAY | TO-262AA | On request | ₹419.36 · 0 in stock | View | |
| VI40120C-M3/4W#C5995747VISHAY · TO-262AA | VISHAY | TO-262AA | On request | ₹348.60 · 0 in stock | View | |
