STDatasheet (PDF)

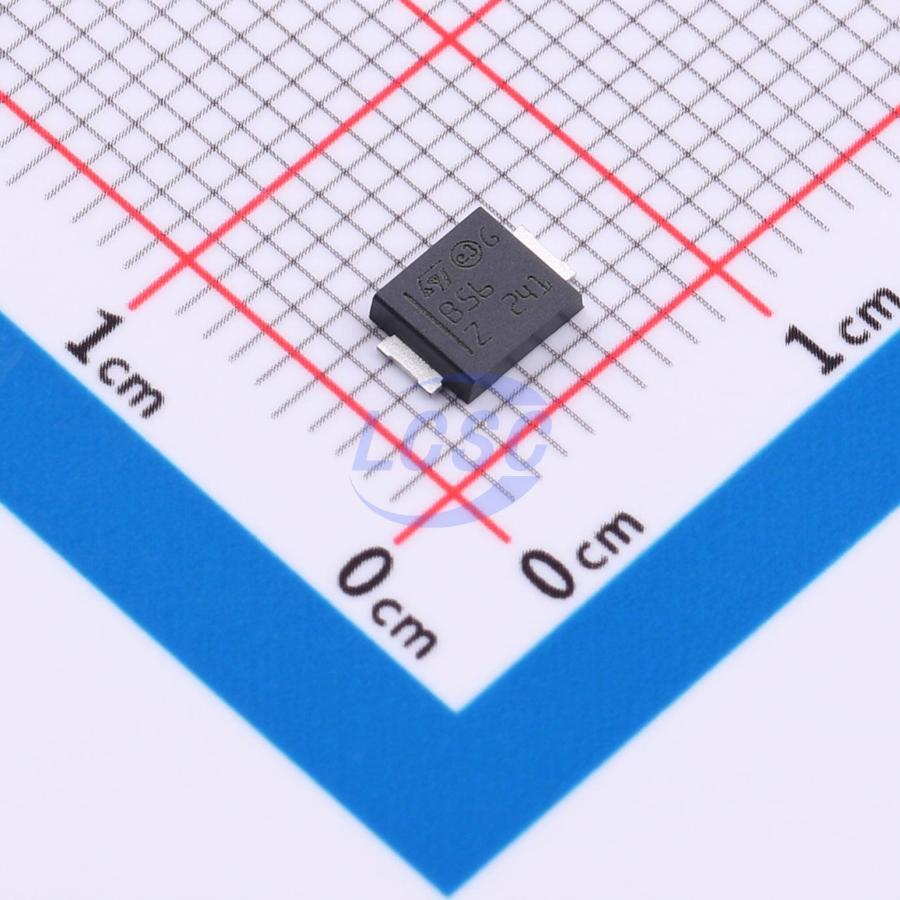

STPS5L60UFN
1 Independent 60V 520mV@5A 5A SMBFlatNotch Single Diodes RoHS
SMBFlatNotchROHS CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- STPS5L60UFN
- Store part #
- C2965268
- Package / case
- SMBFlatNotch
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
170 in stock
#C2965268
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹102.77 | ₹102.77 |
| 10+ | ₹82.83 | ₹828.30 |
| 30+ | ₹72.65 | ₹2,179.50 |
| 100+ | ₹62.67 | ₹6,267.00 |
| 500+ | ₹56.81 | ₹28,405.00 |
| 1,000+ | ₹53.78 | ₹53,780.00 |
1 × ₹102.77
₹102.77
excl. GST
₹121.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
STPS5L60UFN
₹102.77 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 520mV@5A
- Reverse Leakage Current (Ir)
- 220uA@60V
- Non-Repetitive Peak Forward Surge Current
- 205A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
Axial and surface mount power Schottky rectifiers for switch-mode power supplies and high-frequency DC-DC converters. Available in DO-201AD, SMB, SMC, and SMB Flat Notch packages, suitable for low-voltage, high-frequency inverters, compact battery chargers, and space-constrained applications such as telecom battery chargers.
Applications
- Lighting
- Battery Chargers
- Set-Top Boxes
- DC/DC Converters
- Notebook Adapters
- Switching Diodes
Key features
- Negligible switching losses
- Low forward voltage drop
- Low thermal resistance
- Avalanche rated
- ECOPACK2 component
